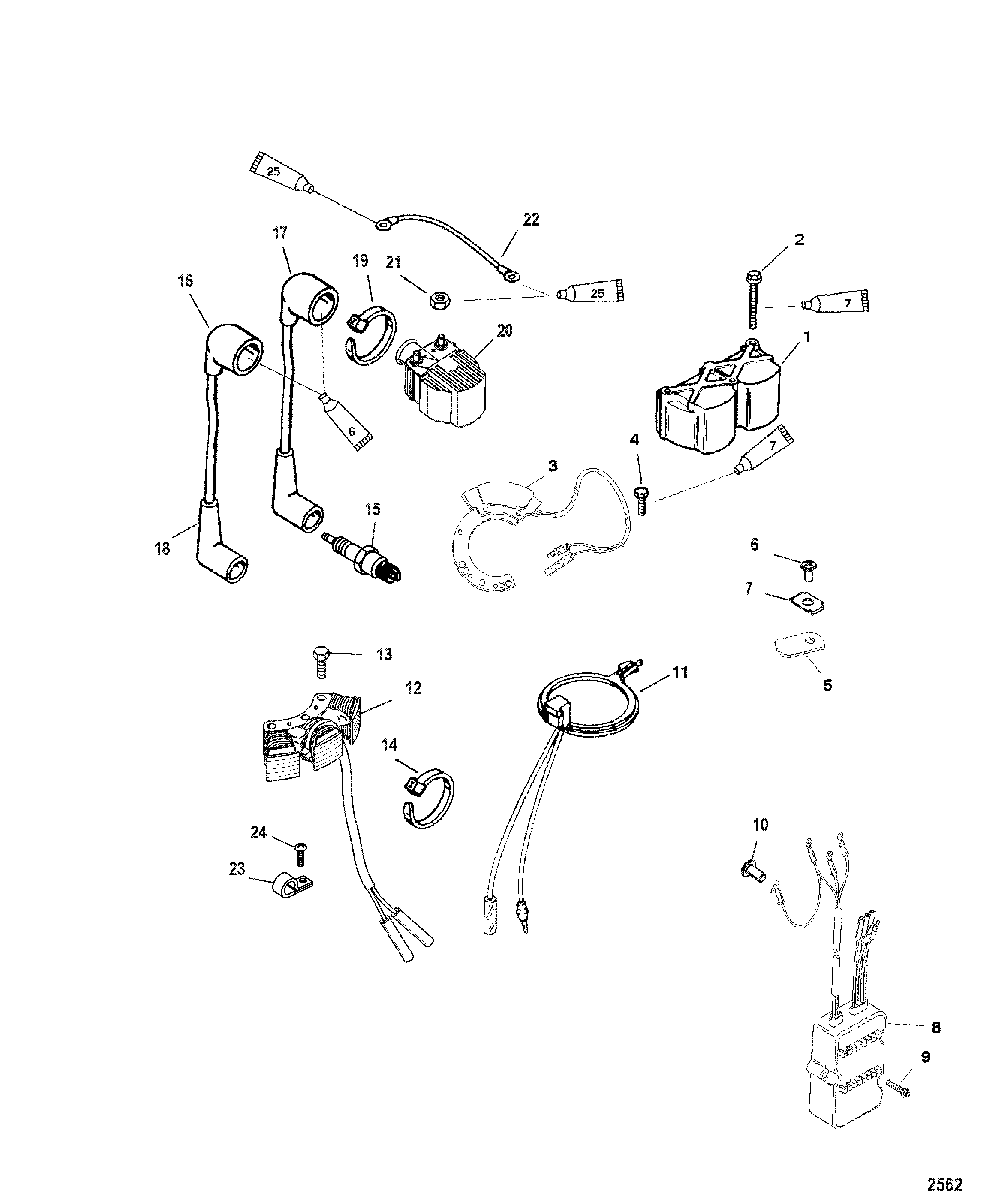

Ignition/Electrical Components для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
1997621 COVER, Ignition CoilCOVER, Ignition Coil
-
210-1994155 SCREW, (M5 x 55)SCREW, (M5 x 55)
-
3855721T8 STATOR ASSEMBLYSTATOR ASSEMBLY
-
410-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
410-4013910 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
554-856999 STRAPSTRAP
-
610-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
78M0084613 C WASHERC WASHER
-
8855713A4 SWITCHBOX ASSEMBLY
(Non-Commercial)SWITCHBOX ASSEMBLY
(Non-Commercial) -
8855713A3 SWITCHBOX ASSEMBLY
(Commercial/Jet 20)SWITCHBOX ASSEMBLY
(Commercial/Jet 20) -
910-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1010-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1198450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1286704T11 STATOR AUXILIARYSTATOR AUXILIARY
-
1310-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1533-816737Q SPARK PLUG
(NGK #BP8H-N-10)SPARK PLUG
(NGK #BP8H-N-10) -
1533-816837Q SPARK PLUG
(NGK #BPZ8H-N-10) (CAN/BELG.)SPARK PLUG
(NGK #BPZ8H-N-10) (CAN/BELG.) -
1684-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)CABLE SET, High Tension (5 and 8.25 Inch)
-
17NSS NOT SOLD SEPARATE, Hi-Tension CableNOT SOLD SEPARATE, Hi-Tension Cable
-
17NSS NOT SOLD SEPARATE, Hi-Tension CableNOT SOLD SEPARATE, Hi-Tension Cable
-
1885-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
20339-832757A4 COIL KITCOIL KIT
-
2111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2284-88807A10 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
2354-24836 CLIPCLIP
-
2410-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
NS13541 PLUG, MalePLUG, Male
-
NS13540 CAP, FemaleCAP, Female
