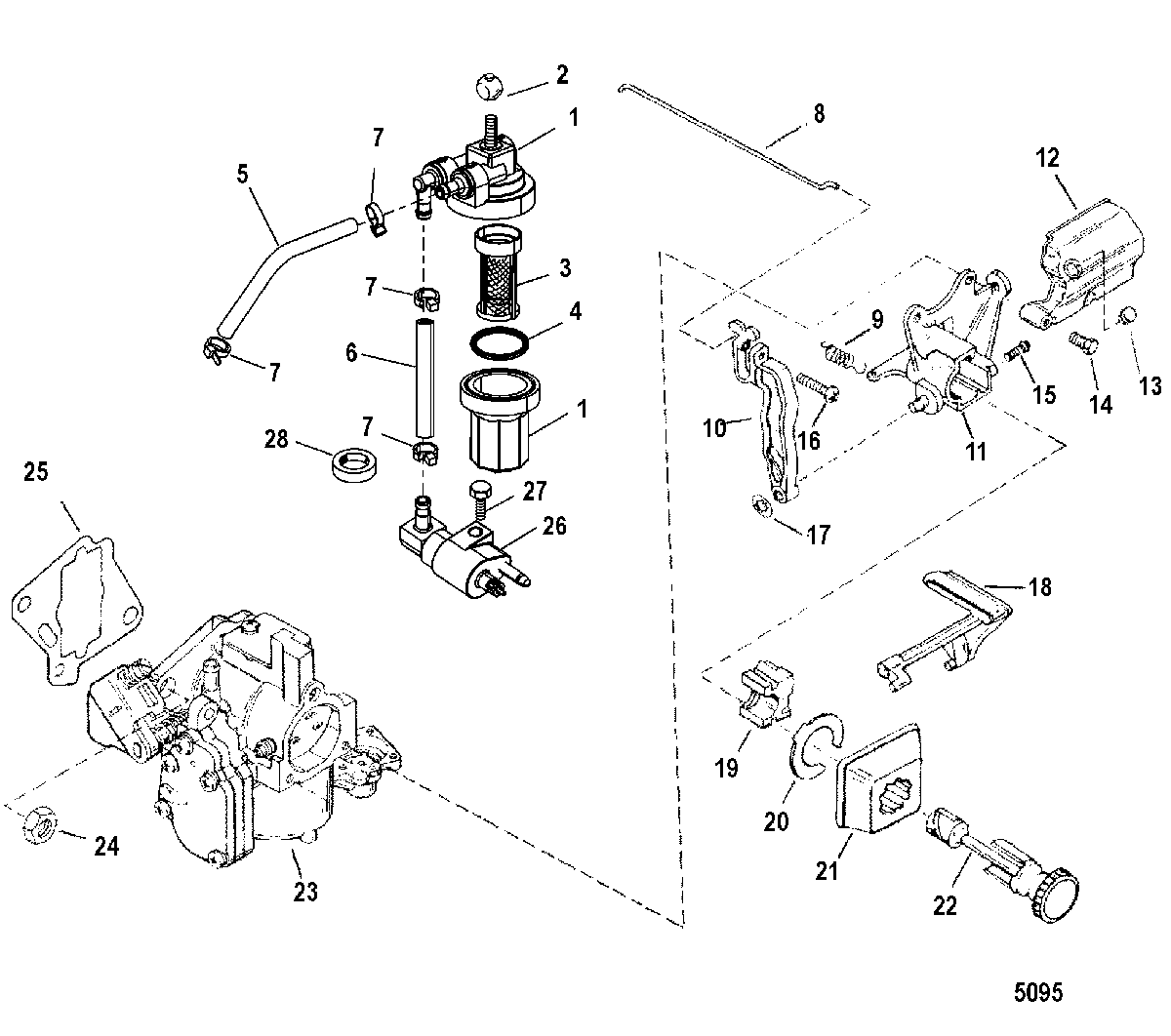

Fuel System Components(USA-1B153167/BEL-0P365661 and Below) для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
135-889527A07 FILTER ASSEMBLY, Fuel
SN# 1B153167 & BelowFILTER ASSEMBLY, Fuel
SN# 1B153167 & Below -
135-889527A07 FILTER ASSEMBLY, Fuel
SN# 0P365661 & BelowFILTER ASSEMBLY, Fuel
SN# 0P365661 & Below -
2858731 BALL, Fuel FilterBALL, Fuel Filter
-
335-87946Q04 FILTER KIT, Fuel
(Quicksilver Brand)FILTER KIT, Fuel
(Quicksilver Brand) -
335-87946K04 FILTER KIT, Fuel
(Mercury Brand)FILTER KIT, Fuel
(Mercury Brand) -
425-897536 SEALSEAL
-
532-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 7.50 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 7.50 Inch Length)
-
632-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5.50 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 5.50 Inch Length)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
8127332 WIRE, Fast IdleWIRE, Fast Idle
-
924-11277 SPRING, TensionSPRING, Tension
-
10128053 LEVER, Fast IdleLEVER, Fast Idle
-
1112803 BRACKET, PrimerBRACKET, Primer
-
12174421 COVER, CarburetorCOVER, Carburetor
-
1319-47579 PLUGPLUG
-
1410-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
1510-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
1610-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
1711-821979 NUTNUT
-
18112731 LEVER, PrimerLEVER, Primer
-
1911280 CAM BLOCKCAM BLOCK
-
2053-11278 CLIP, RetainingCLIP, Retaining
-
21172291 BEZEL, ChokeBEZEL, Choke
-
22128022 PRIMER KNOBPRIMER KNOB
-
231392-823907T12 CARBURETOR, (WMC-64)
(20 Hp)CARBURETOR, (WMC-64)
(20 Hp) -
231390-817405T23 CARBURETOR, (WMC-65)
(25 Hp/Jet 20)CARBURETOR, (WMC-65)
(25 Hp/Jet 20) -
2411-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2527-192061 GASKET, CarburetorGASKET, Carburetor
-
2622-15781A9 CONNECTOR KIT, FuelCONNECTOR KIT, Fuel
-
2710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2825-18202 GROMMETGROMMET
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
