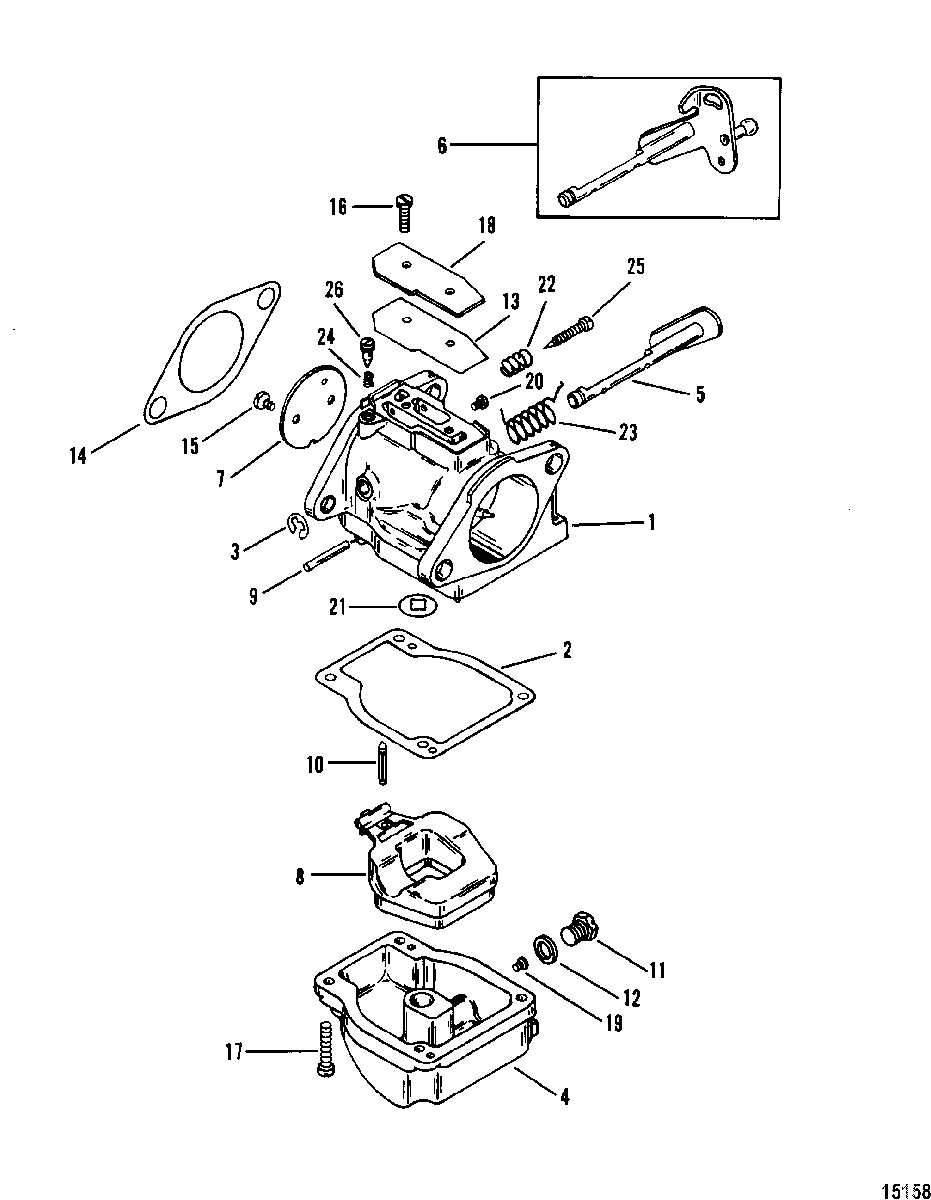

CARBURETOR для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
13301-9012A14 CARBURETOR ASSEMBLY
(UPPER) 70 - WME-4CARBURETOR ASSEMBLY
(UPPER) 70 - WME-4 -
13301-9012A15 CARBURETOR ASSEMBLY
(MIDDLE)70 - WME-4CARBURETOR ASSEMBLY
(MIDDLE)70 - WME-4 -
13301-9012A16 CARBURETOR ASSEMBLY
(LOWER)70 - WME-4CARBURETOR ASSEMBLY
(LOWER)70 - WME-4 -
13301-9012A71 CARBURETOR
(UPPER) 75 - WME-6CARBURETOR
(UPPER) 75 - WME-6 -
13301-9012A72 CARBURETOR ASSEMBLY
(MIDDLE) 75 - WME-6CARBURETOR ASSEMBLY
(MIDDLE) 75 - WME-6 -
13301-9012A73 CARBURETOR ASSEMBLY
(LOWER) 75 - WME-6CARBURETOR ASSEMBLY
(LOWER) 75 - WME-6 -
13301-9012A5 CARBURETOR ASSEMBLY
(UPPER) 80 - WME-1CARBURETOR ASSEMBLY
(UPPER) 80 - WME-1 -
13301-9012A6 CARBURETOR ASSEMBLY
(MIDDLE) 80 - WME-1CARBURETOR ASSEMBLY
(MIDDLE) 80 - WME-1 -
13301-9012A7 CARBURETOR ASSEMBLY
(LOWER) 80 - WME-1CARBURETOR ASSEMBLY
(LOWER) 80 - WME-1 -
13301-9012A17 CARBURETOR ASSEMBLY
(UPPER) 90 - WME-5CARBURETOR ASSEMBLY
(UPPER) 90 - WME-5 -
13301-9012A18 CARBURETOR ASSEMBLY
(MIDDLE) 90 - WME-5CARBURETOR ASSEMBLY
(MIDDLE) 90 - WME-5 -
13301-9012A19 CARBURETOR ASSEMBLY
(LOWER) 90 - WME-5CARBURETOR ASSEMBLY
(LOWER) 90 - WME-5 -
2NSS NOT SOLD SEPARATE, GASKET-FUEL BOWLNOT SOLD SEPARATE, GASKET-FUEL BOWL
-
3NSS NOT SOLD SEPARATE, RETAINING RINGNOT SOLD SEPARATE, RETAINING RING
-
41395-811696 BOWL, Fuel
(UPPER)BOWL, Fuel
(UPPER) -
41395-811693 BOWL, Fuel
(MIDDLE/LOWER)BOWL, Fuel
(MIDDLE/LOWER) -
51395-9591 SHAFT, Throttle (UPPER/LOWER)SHAFT, Throttle (UPPER/LOWER)
-
619270 SHAFT, Throttle (MIDDLE)SHAFT, Throttle (MIDDLE)
-
71395-9593 VALVE, Throttle
(WME-1/WME-6)VALVE, Throttle
(WME-1/WME-6) -
71395-9609 VALVE, Throttle
(WME-4/WME-5)VALVE, Throttle
(WME-4/WME-5) -
81395-9594 FLOATFLOAT
-
9NSS NOT SOLD SEPARATE, FLOAT SHAFTNOT SOLD SEPARATE, FLOAT SHAFT
-
101395-879194011 VALVE, Inlet NeedleVALVE, Inlet Needle
-
111395-811694 PLUG, MAIN JETPLUG, MAIN JET
-
12NSS NOT SOLD SEPARATE, GASKET-PLUGNOT SOLD SEPARATE, GASKET-PLUG
-
13NSS NOT SOLD SEPARATE, GASKET-COVER PLATENOT SOLD SEPARATE, GASKET-COVER PLATE
-
1427-151724 GASKET, FLANGEGASKET, FLANGE
-
15NSS NOT SOLD SEPARATE, SCREW-THROTTLE VALVENOT SOLD SEPARATE, SCREW-THROTTLE VALVE
-
161395-9597 SCREW, COVER PLATESCREW, COVER PLATE
-
171395-808612 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
181395-9598 COVER PLATECOVER PLATE
-
191399-4216 JET, (.064), MAIN FUEL
(80)JET, (.064), MAIN FUEL
(80) -
191395-6029 JET, (.068), MAIN FUEL
(75)JET, (.068), MAIN FUEL
(75) -
191395-6207 JET, (.072), MAIN FUEL
(70/90)JET, (.072), MAIN FUEL
(70/90) -
201395-8423 JET, (.094), VENT (.094)JET, (.094), VENT (.094)
-
21NSS NOT SOLD SEPARATE, GASKET-NOZZLE WELLNOT SOLD SEPARATE, GASKET-NOZZLE WELL
-
22NSS NOT SOLD SEPARATE, SPRING-IDLE NEEDLENOT SOLD SEPARATE, SPRING-IDLE NEEDLE
-
23NSS NOT SOLD SEPARATE, SPRING-THROTTLE RETURNNOT SOLD SEPARATE, SPRING-THROTTLE RETURN
-
24NSS NOT SOLD SEPARATE, SPRING-IDLE AIRNOT SOLD SEPARATE, SPRING-IDLE AIR
-
25NSS NOT SOLD SEPARATE, IDLE NEEDLENOT SOLD SEPARATE, IDLE NEEDLE
-
26NSS NOT SOLD SEPARATE, IDLE AIR NEEDLENOT SOLD SEPARATE, IDLE AIR NEEDLE
-
-1395-8112231 GASKET KITGASKET KIT
-
-1395-8236354 REPAIR KITREPAIR KIT
