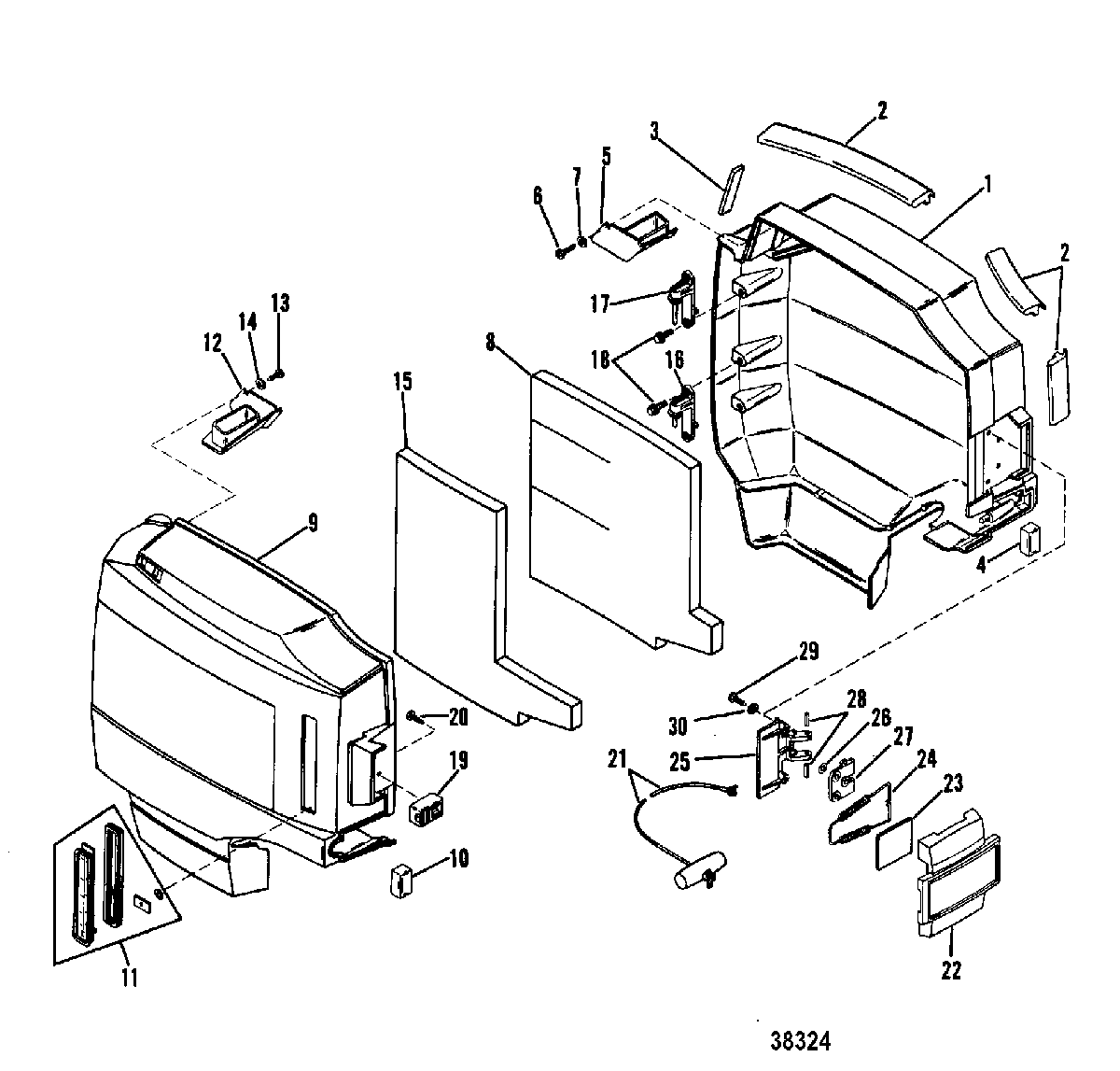

COWLS AND FRONT COVER для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
12188-9006A2 TOP COWL ASSEMBLY, PORT
(MERCURY)TOP COWL ASSEMBLY, PORT
(MERCURY) -
12188-9006A3 TOP COWL ASSEMBLY, PORT
(MARINER)TOP COWL ASSEMBLY, PORT
(MARINER) -
2429404 SEAL, UPPER COWLSEAL, UPPER COWL
-
312401 SEAL, COWL (REAR)SEAL, COWL (REAR)
-
490274 SEALSEAL
-
542958 SHIELD, AIR INLETSHIELD, AIR INLET
-
610-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELDSCREW, (#10-16 x .625) Stainless Steel, SHIELD
-
712-4002313 WASHER, SHIELD SCREWWASHER, SHIELD SCREW
-
8435331 SOUND BLANKETSOUND BLANKET
-
92187-9070A4 COWL ASSEMBLY, STARBOARD
(MERCURY)COWL ASSEMBLY, STARBOARD
(MERCURY) -
92187-9070A5 COWL ASSEMBLY, STARBOARD
(MARINER)COWL ASSEMBLY, STARBOARD
(MARINER) -
92187-9070A4 COWL ASSEMBLY, STARBOARD
(MERCURY)(HANDLE MODELS)COWL ASSEMBLY, STARBOARD
(MERCURY)(HANDLE MODELS) -
92187-9070A5 COWL ASSEMBLY, STARBOARD
(MARINER)(HANDLE MODELS)COWL ASSEMBLY, STARBOARD
(MARINER)(HANDLE MODELS) -
1026-60297 SEALSEAL
-
1111315A1 OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
1242957 SHIELD, AIR INLETSHIELD, AIR INLET
-
1310-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELDSCREW, (#10-16 x .625) Stainless Steel, SHIELD
-
1412-4002313 WASHER, SHIELD SCREWWASHER, SHIELD SCREW
-
15435342 SOUND BLANKETSOUND BLANKET
-
1687985 BRACKET (LOWER)BRACKET (LOWER)
-
17879871 BRACKET (UPPER)BRACKET (UPPER)
-
1810-40011149 SCREW, BRACKETSCREW, BRACKET
-
19120811 LATCH, CowlLATCH, Cowl
-
2010-48409 SCREW, (#10-16 x .625) Stainless Steel, LATCHSCREW, (#10-16 x .625) Stainless Steel, LATCH
-
2147341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (MANUAL STARTING)
-
2243138A2 COVER ASSEMBLY MERCURYCOVER ASSEMBLY MERCURY
-
2243138A3 COVER ASSEMBLY MARINERCOVER ASSEMBLY MARINER
-
2312356 BUMPERBUMPER
-
2424-17288 SPRING, COVERSPRING, COVER
-
2543137A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2611-434181 SPEED NUTSPEED NUT
-
2715432 RETAINER, BRACKETRETAINER, BRACKET
-
2817-43134 PIN, BRACKETPIN, BRACKET
-
2910-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
3012-814806 WASHERWASHER
