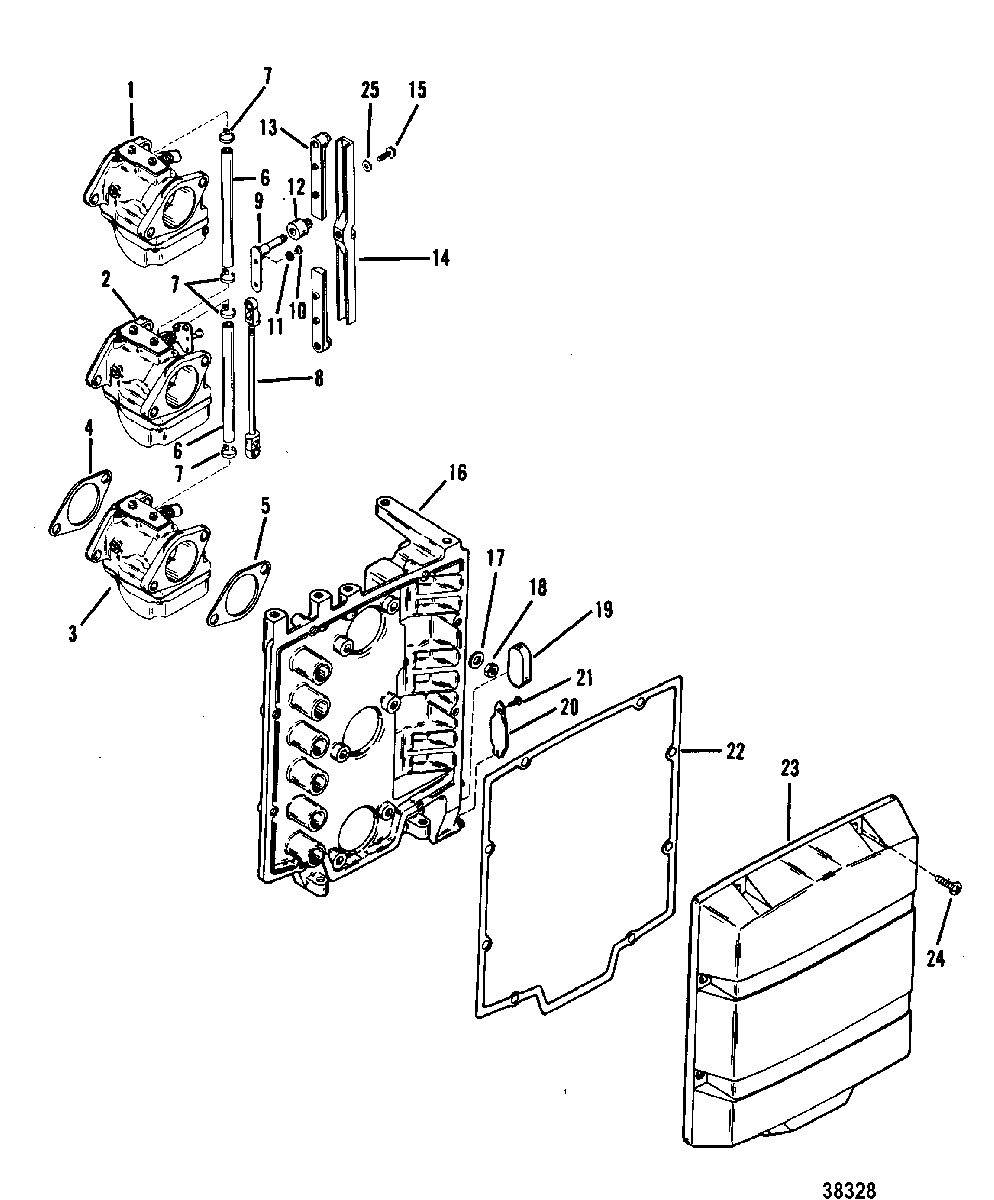

CARBURETOR AND ATTENUATOR PLATE для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
13301-9012A14 CARBURETOR ASSEMBLY
(TOP - 70)CARBURETOR ASSEMBLY
(TOP - 70) -
13301-9012A71 CARBURETOR
(TOP - 75)CARBURETOR
(TOP - 75) -
13301-9012A5 CARBURETOR ASSEMBLY
(TOP - 80)CARBURETOR ASSEMBLY
(TOP - 80) -
13301-9012A17 CARBURETOR ASSEMBLY
(TOP - 90)CARBURETOR ASSEMBLY
(TOP - 90) -
23301-9012A15 CARBURETOR ASSEMBLY
(CENTER - 70)CARBURETOR ASSEMBLY
(CENTER - 70) -
23301-9012A72 CARBURETOR ASSEMBLY
(CENTER - 75)CARBURETOR ASSEMBLY
(CENTER - 75) -
23301-9012A6 CARBURETOR ASSEMBLY
(CENTER - 80)CARBURETOR ASSEMBLY
(CENTER - 80) -
23301-9012A18 CARBURETOR ASSEMBLY
(CENTER - 90)CARBURETOR ASSEMBLY
(CENTER - 90) -
33301-9012A16 CARBURETOR ASSEMBLY
(BOTTOM - 70)CARBURETOR ASSEMBLY
(BOTTOM - 70) -
33301-9012A73 CARBURETOR ASSEMBLY
(BOTTOM - 75)CARBURETOR ASSEMBLY
(BOTTOM - 75) -
33301-9012A7 CARBURETOR ASSEMBLY
(BOTTOM - 80)CARBURETOR ASSEMBLY
(BOTTOM - 80) -
33301-9012A19 CARBURETOR ASSEMBLY
(BOTTOM - 90)CARBURETOR ASSEMBLY
(BOTTOM - 90) -
4/527-151724 GASKET, CARBURETORGASKET, CARBURETOR
-
632-9912878 TUBING, CARBURETOR TO CARBURETORTUBING, CARBURETOR TO CARBURETOR
-
754-816311T CLAMPCLAMP
-
88M0084744 LINK RODLINK ROD
-
911399A1 ARM ASSEMBLYARM ASSEMBLY
-
1010-40057103 SCREW, (M5 x 6), ARMSCREW, (M5 x 6), ARM
-
1112-56681 WASHER, (.203 x .500 x .032), ARM SCREWWASHER, (.203 x .500 x .032), ARM SCREW
-
1267748 ROLLERROLLER
-
1398886T01 LINK, ADJUSTINGLINK, ADJUSTING
-
1498887T LINK, ThrottleLINK, Throttle
-
1510-48409 SCREW, (#10-16 x .625) Stainless Steel, LINKSCREW, (#10-16 x .625) Stainless Steel, LINK
-
1642970A2 PLATE ASSEMBLY, SOUND ATTENUATORPLATE ASSEMBLY, SOUND ATTENUATOR
-
1712-4002217 WASHER, CARBURETOR STUDSWASHER, CARBURETOR STUDS
-
1811-401388 NUT, CARBURETOR STUDSNUT, CARBURETOR STUDS
-
1939519 CUP, RETAINERCUP, RETAINER
-
2098889 LATCH, CONTROL CABLELATCH, CONTROL CABLE
-
2110-42975 DRIVE SCREW, LATCH TO PLATEDRIVE SCREW, LATCH TO PLATE
-
2227-430001 GASKET, ATTENUATOR COVERGASKET, ATTENUATOR COVER
-
2342969A3 COVER, ATTENUATORCOVER, ATTENUATOR
-
2410-48409 SCREW, (#10-16 x .625) Stainless Steel, ATTENUATOR COVERSCREW, (#10-16 x .625) Stainless Steel, ATTENUATOR COVER
-
2512-56681 WASHER, (.203 x .500 x .032), LINK SCREWWASHER, (.203 x .500 x .032), LINK SCREW
-
-27-43004A99 GASKET SETGASKET SET
