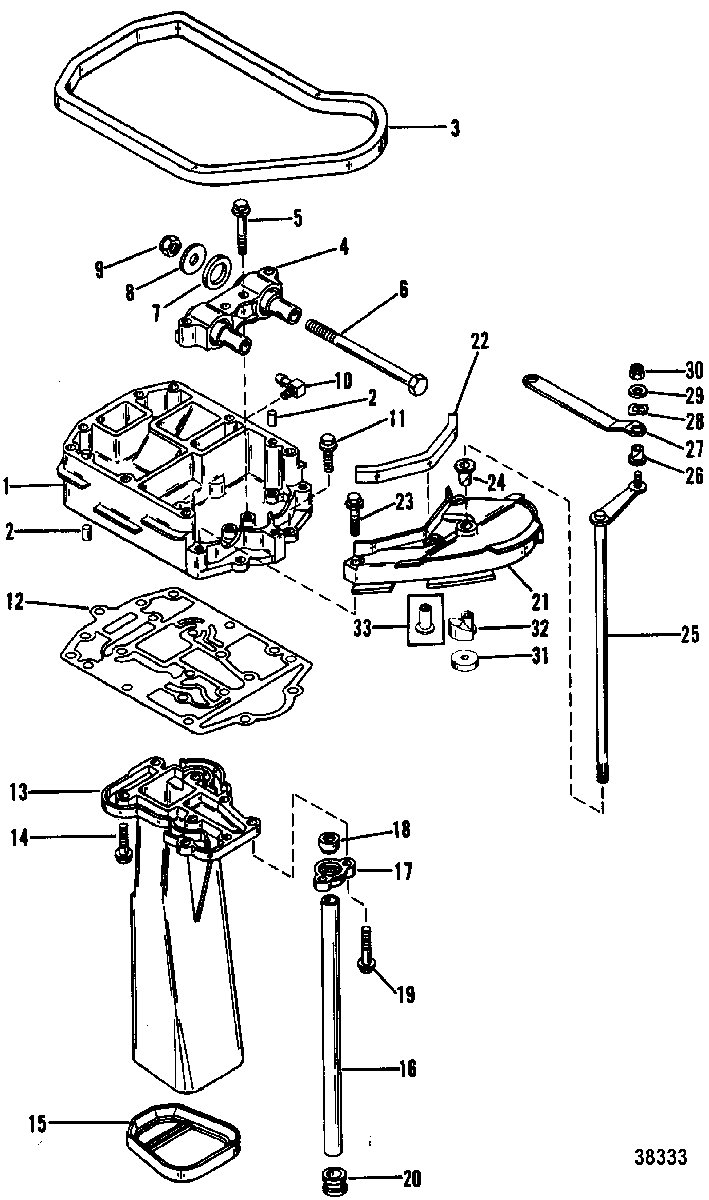

EXHAUST PLATE для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
142954A1 PLATE ASSEMBLY, EXHAUSTPLATE ASSEMBLY, EXHAUST
-
217-23784 PIN, DowelPIN, Dowel
-
342939 SEAL, LOWER COWLSEAL, LOWER COWL
-
442949T1 MOUNT, (3.25 Inch), UPPER
(LONG)MOUNT, (3.25 Inch), UPPER
(LONG) -
4443441 MOUNT, (3.25 Inch), UPPER
(X-LONG)MOUNT, (3.25 Inch), UPPER
(X-LONG) -
510-82155050 SCREW, UPPER MOUNT TO EXHAUST PLATESCREW, UPPER MOUNT TO EXHAUST PLATE
-
610-898487 BOLT, (M12 x 175), UPPER MOUNTBOLT, (M12 x 175), UPPER MOUNT
-
610-12515 SCREW, (M12 x 160), UPPER MOUNT
(HANDLE MODELS)SCREW, (M12 x 160), UPPER MOUNT
(HANDLE MODELS) -
712-32834 WASHER, UPPER MOUNT SCREWWASHER, UPPER MOUNT SCREW
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, UPPER MOUNT SCREWWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, UPPER MOUNT SCREW
-
911-896963 NUT, (M12), UPPER MOUNT SCREWNUT, (M12), UPPER MOUNT SCREW
-
1022-996642 ELBOW, EXHAUSE PLATEELBOW, EXHAUSE PLATE
-
1110-82127335 SCREW, (M8 x 1.25 x 35) , EXHAUSE PLATESCREW, (M8 x 1.25 x 35) , EXHAUSE PLATE
-
1110-4010770 SCREW, (M8 x 70), EXHAUSE PLATESCREW, (M8 x 70), EXHAUSE PLATE
-
1227-430086 GASKET, EXHAUST PLATEGASKET, EXHAUST PLATE
-
1342966T TUBE, ExhaustTUBE, Exhaust
-
1410-4010735 SCREW, (M8 x 35), EXHAUST TUBE TO PLATESCREW, (M8 x 35), EXHAUST TUBE TO PLATE
-
158M0039075 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1632-430141 TUBE, Water
(LONG)TUBE, Water
(LONG) -
1632-430142 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
1799019 CLAMP, WATER TUBE SEALCLAMP, WATER TUBE SEAL
-
1842941001 SEAL, Water Tube (UPPER)SEAL, Water Tube (UPPER)
-
1910-4010750 SCREW, (M8 x 50), CLAMPSCREW, (M8 x 50), CLAMP
-
2025-93221002 GROMMET, WATER TUBEGROMMET, WATER TUBE
-
2142953A2 BRACKET ASSEMBLY, COWL (LOWER)BRACKET ASSEMBLY, COWL (LOWER)
-
2243405 SEAL, LOWER COWL BRACKETSEAL, LOWER COWL BRACKET
-
2310-81742755 SCREW, LOWER COWL BRACKETSCREW, LOWER COWL BRACKET
-
2423-48237 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
2579932A9 SHIFT SHAFT ASSEMBLY (UPPER)SHIFT SHAFT ASSEMBLY (UPPER)
-
2623-42994 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
2742912A1 SHIFT LINKSHIFT LINK
-
2813-29720 WAVE WASHER, SHIFT SHAFTWAVE WASHER, SHIFT SHAFT
-
2912-24664 WASHER, (M4 x 20), SHIFT SHAFTWASHER, (M4 x 20), SHIFT SHAFT
-
3011-401386 NUT, (M6), SHIFT SHAFTNUT, (M6), SHIFT SHAFT
-
3123-813745 SPACER, SHIFT SHAFT
(LONG)SPACER, SHIFT SHAFT
(LONG) -
3123-11289 SPACER, SHIFT SHAFT
(X-LONG)SPACER, SHIFT SHAFT
(X-LONG) -
3243053 COUPLING, SHIFT SHAFT )
(NON POWER TRIMCOUPLING, SHIFT SHAFT )
(NON POWER TRIM -
3343585 COUPLING, SHIFT SHAFT
(POWER TRIM)COUPLING, SHIFT SHAFT
(POWER TRIM) -
-27-43004A99 GASKET SETGASKET SET
