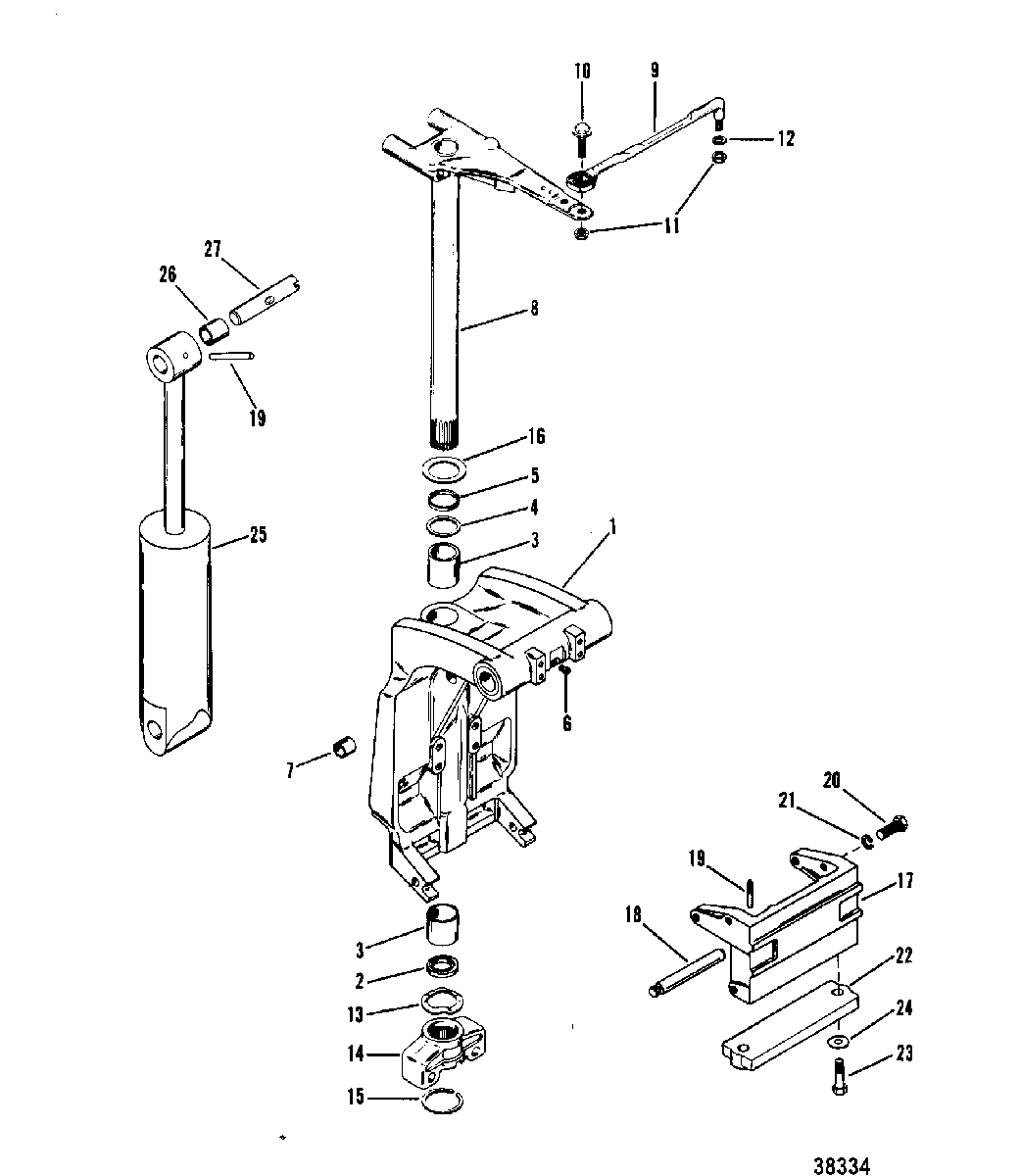

SWIVEL BRACKET AND STEERING ARM для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(MERCURY)SWIVEL BRACKET ASSEMBLY
(MERCURY) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(MARINER)SWIVEL BRACKET ASSEMBLY
(MARINER) -
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPERBUSHING, SWIVEL BRACKET - LOWER AND UPPER
-
425-33466 O-RING, SWIVEL BRACKET - UPPERO-RING, SWIVEL BRACKET - UPPER
-
523-67668 SPACER, SWIVEL BRACKET - UPPERSPACER, SWIVEL BRACKET - UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
899661A2 SWIVEL PIN ASSEMBLY
(MERCURY)SWIVEL PIN ASSEMBLY
(MERCURY) -
899661A4 SWIVEL PIN ASSEMBLY, MarinerSWIVEL PIN ASSEMBLY, Mariner
-
812079A8 SWIVEL PIN ASSEMBLY
(MERCURY)(HANDLE MODELS)SWIVEL PIN ASSEMBLY
(MERCURY)(HANDLE MODELS) -
812079A9 SWIVEL PIN ASSEMBLY
(MARINER)(HANDLE MODELS)SWIVEL PIN ASSEMBLY
(MARINER)(HANDLE MODELS) -
992876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1010-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARMSCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
-
1111-8M0042636 NUT, (.375-24), STEERING LINK SCREWNUT, (.375-24), STEERING LINK SCREW
-
1212-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARMWASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
-
1313-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
1442961A06 YOKE ASSEMBLY, Bottom
(MERCURY)YOKE ASSEMBLY, Bottom
(MERCURY) -
1442961A06 YOKE ASSEMBLY, Bottom
(MARINER)YOKE ASSEMBLY, Bottom
(MARINER) -
1553-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
1612-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
1799653 BRACKET, SHOCK ABSORBER
NOT USED WITH POWER TRIMBRACKET, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
1899619 SHAFT, SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIMSHAFT, SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIM -
1917-821539 PIN, Groove, SHOCK ABSORBER
NOT USED WITH POWER TRIMPIN, Groove, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
2010-4000377 SCREW, (M10 x 30), BRACKET
NOT USED WITH POWER TRIMSCREW, (M10 x 30), BRACKET
NOT USED WITH POWER TRIM -
2113-400258 LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
NOT USED WITH POWER TRIMLOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
NOT USED WITH POWER TRIM -
2297-818298Q1 ANODE ASSEMBLY
NOT USED WITH POWER TRIMANODE ASSEMBLY
NOT USED WITH POWER TRIM -
2310-4000332 SCREW, (M6 x 35), ANODE
NOT USED WITH POWER TRIMSCREW, (M6 x 35), ANODE
NOT USED WITH POWER TRIM -
2412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
NOT USED WITH POWER TRIMWASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
NOT USED WITH POWER TRIM -
2555-99724T15 SHOCK ABSORBER
(MERCURY) NOT USED WITH POWER TRIM MERCURYSHOCK ABSORBER
(MERCURY) NOT USED WITH POWER TRIM MERCURY -
2555-99724T15 SHOCK ABSORBER
(MARINER) NOT USED WITH POWER TRIM MARINERSHOCK ABSORBER
(MARINER) NOT USED WITH POWER TRIM MARINER -
-41760A2 REPAIR KIT, Shock AbsorberREPAIR KIT, Shock Absorber
-
2623-821207 BUSHING, SHOCK ABSORBER
NOT USED WITH POWER TRIMBUSHING, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
2799625002 SHAFT, SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIMSHAFT, SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIM -
-27-43004A99 GASKET SETGASKET SET
