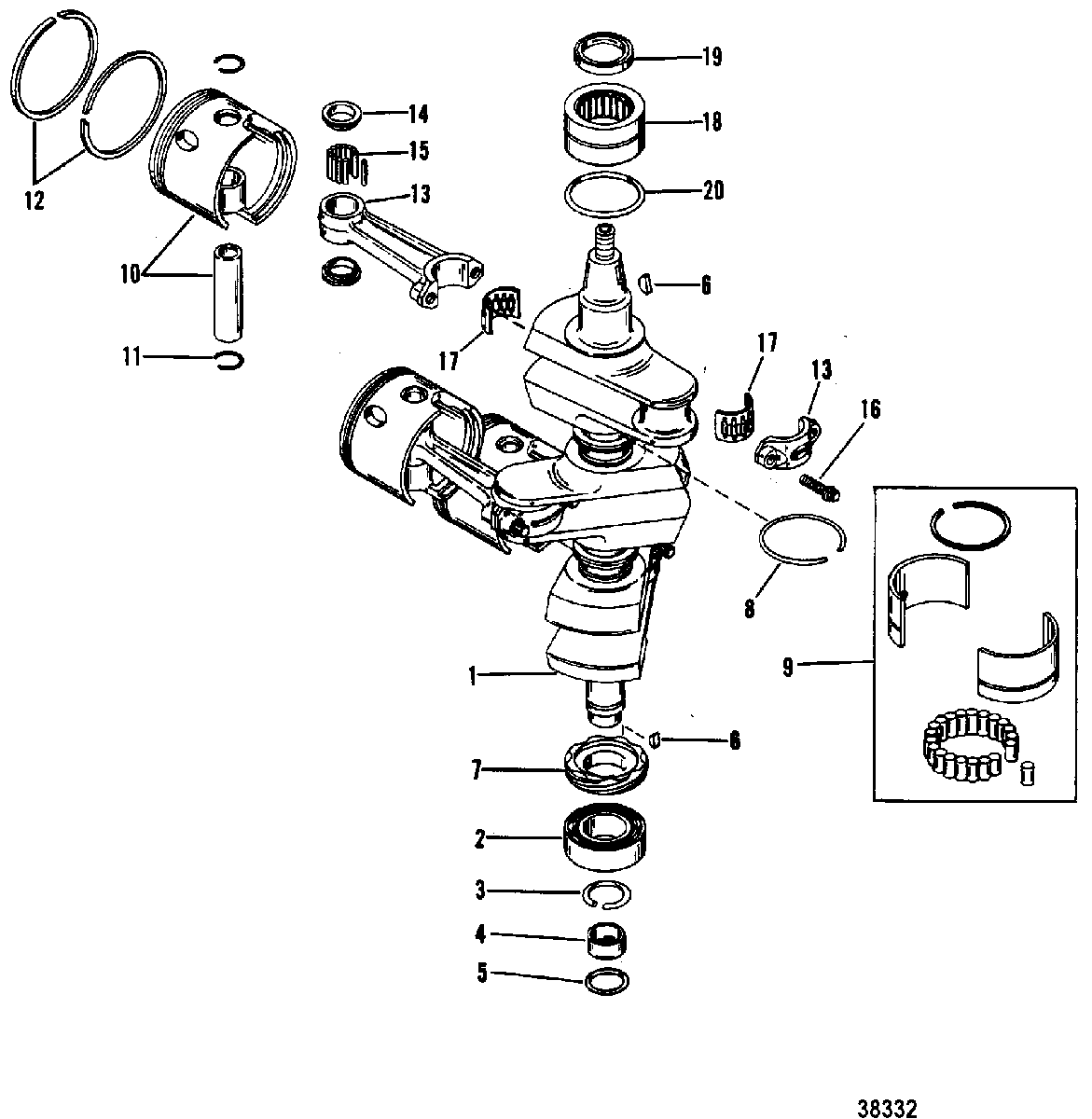

CRANKSHAFT, PISTONS AND CONNECTING RODS(#638-8532--1) для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
1472-9001T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-43011T BEARING, Ball, CRANKSHAFT (LOWER)BEARING, Ball, CRANKSHAFT (LOWER)
-
353-93412 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
454196A6 CARRIER ASSEMBLY, SEALCARRIER ASSEMBLY, SEAL
-
565800 PACKING, CARRIERPACKING, CARRIER
-
628-91800 KEY, Woodruff, DRIVEKEY, Woodruff, DRIVE
-
743-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
839-42079A4 RING ASSEMBLY, SEALINGRING ASSEMBLY, SEALING
-
942943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
10777-9009T13 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
10777-9009A6 PISTON ASSEMBLY
(.015 O.S.)PISTON ASSEMBLY
(.015 O.S.) -
10777-9009A7 PISTON ASSEMBLY
(.030 O.S.)PISTON ASSEMBLY
(.030 O.S.) -
1153-857196 RING, LockRING, Lock
-
1239-96170A12 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1239-96170A3 RING SET, Piston
(.015 O.S.)RING SET, Piston
(.015 O.S.) -
1239-96170A4 RING SET, Piston
(.030 O.S.)RING SET, Piston
(.030 O.S.) -
13638-9002A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1412-8M0032839 WASHERWASHER
-
1529-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
1610-94320 SCREWSCREW
-
1731-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
1831-43013T3 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1926-43993 SEAL, OilSEAL, Oil
-
2025-823683 O-RINGO-RING
-
-27-43004A99 GASKET SETGASKET SET
-
13589T93 POWERHEAD ASSEMBLY
(70/75)POWERHEAD ASSEMBLY
(70/75) -
13600T93 POWERHEAD ASSEMBLY
(80)POWERHEAD ASSEMBLY
(80) -
15081T96 POWERHEAD ASSEMBLY
(90)POWERHEAD ASSEMBLY
(90)
