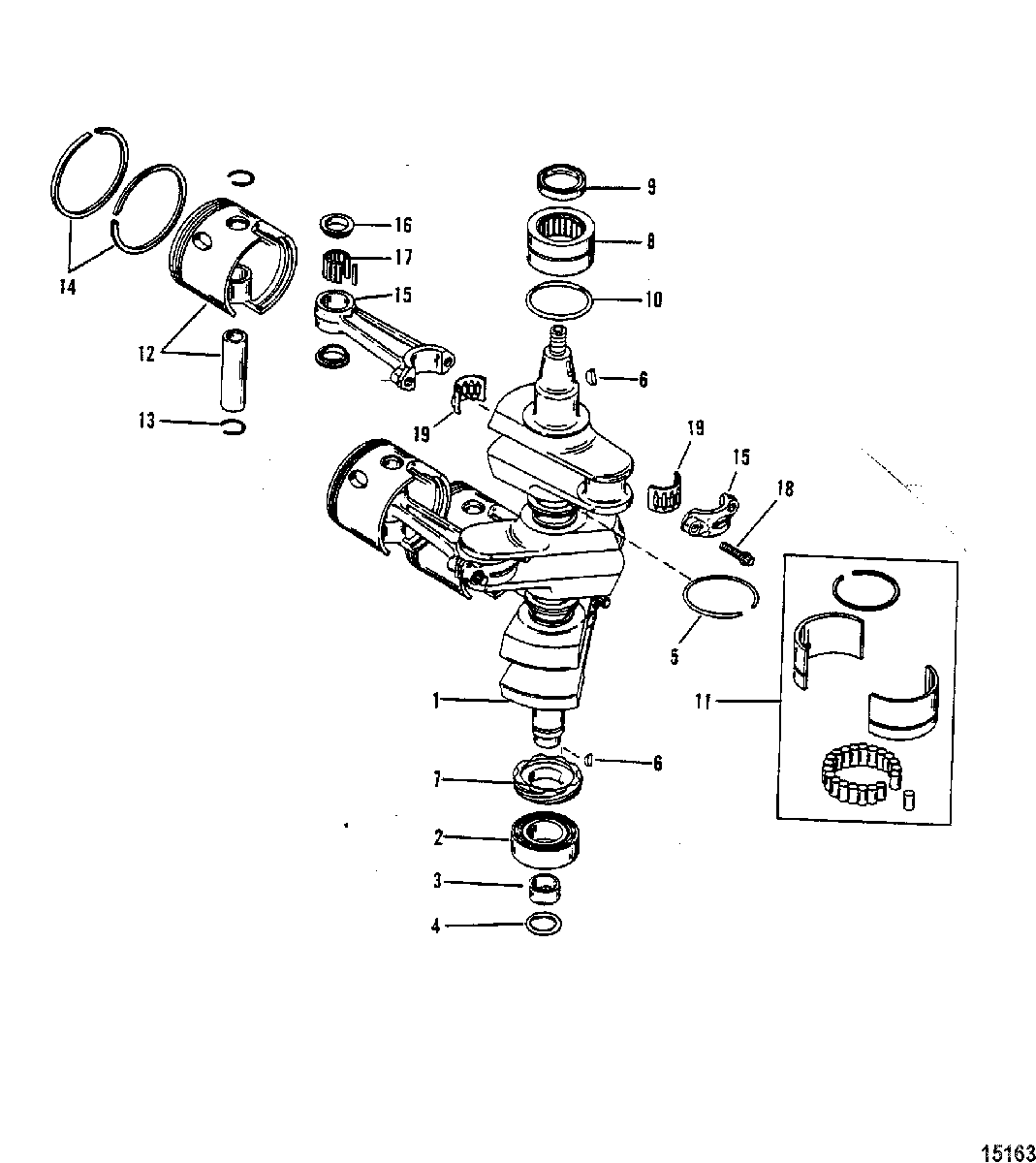

CRANKSHAFT, PISTONS AND CONNECTING RODS(#646-818846) для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450

№

Артикул

Название
1

472-9001T3 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

232 890 ₽
2

30-43011T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 400 ₽
3

786611 WEAR SLEEVE

WEAR SLEEVE

400 ₽
4

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)

200 ₽
5

39-818412A4 RING ASSEMBLY

RING ASSEMBLY

3 390 ₽
6

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
7

43-43019A1 GEAR ASSEMBLY

GEAR ASSEMBLY

5 630 ₽
8

31-43013T3 BEARING ASSEMBLY, Roller (UPPER)

BEARING ASSEMBLY, Roller (UPPER)

8 680 ₽
9

26-43993 SEAL, Oil

SEAL, Oil

920 ₽
10

25-823683 O-RING

O-RING

220 ₽
11

42943A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 140 ₽
12

777-815965T4 PISTON ASSEMBLY
(STANDARD)

PISTON ASSEMBLY
(STANDARD)

15 470 ₽
12

777-815965A5 PISTON ASSEMBLY
(.015 O.S.)

PISTON ASSEMBLY
(.015 O.S.)

23 100 ₽
12

777-815965A6 PISTON ASSEMBLY
(.030 O.S.)

PISTON ASSEMBLY
(.030 O.S.)

16 300 ₽
13

53-857196 RING, Lock

RING, Lock

100 ₽
14

39-96170A12 RING SET, Piston
(STANDARD)

RING SET, Piston
(STANDARD)

23 530 ₽
14

39-96170A3 RING SET, Piston
(.015 O.S.)

RING SET, Piston
(.015 O.S.)

8 720 ₽
14

39-96170A4 RING SET, Piston
(.030 O.S.)

RING SET, Piston
(.030 O.S.)

15 500 ₽
15

646-818846T6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

32 400 ₽
16

12-8M0012298 WASHER

WASHER

450 ₽
17

29-818391001 BEARING, Needle

BEARING, Needle

50 ₽
18

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

650 ₽
19

31-844338A01 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 160 ₽
13589T93 POWERHEAD ASSEMBLY
(70/75)

POWERHEAD ASSEMBLY
(70/75)

594 060 ₽
13600T93 POWERHEAD ASSEMBLY
(80)

POWERHEAD ASSEMBLY
(80)

0 ₽
15081T96 POWERHEAD ASSEMBLY
(90)

POWERHEAD ASSEMBLY
(90)

745 220 ₽
