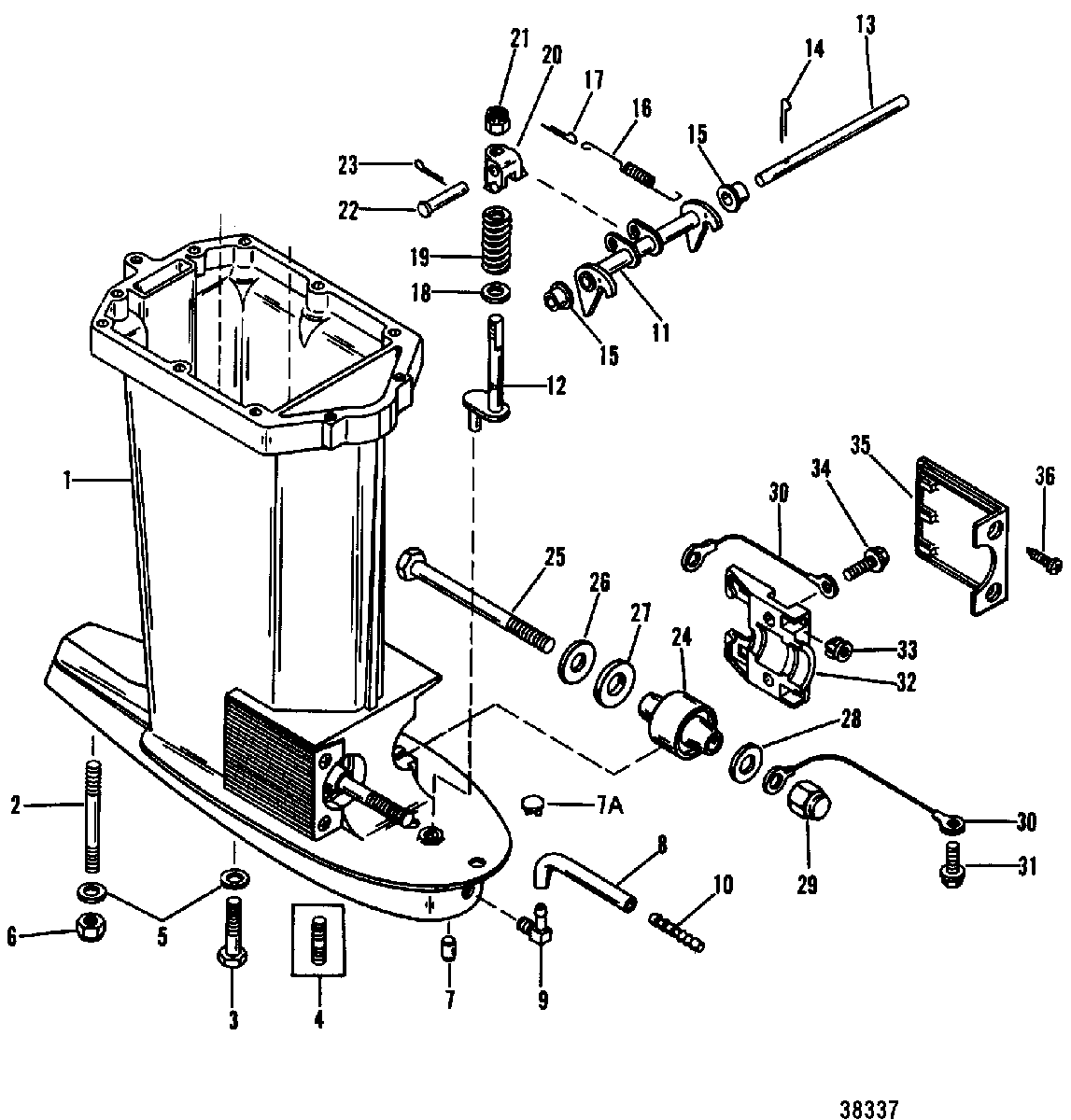

DRIVESHAFT HOUSING для Mariner - 70 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
1898289A49 HOUSING ASSEMBLY, Driveshaft
(MERCURY)HOUSING ASSEMBLY, Driveshaft
(MERCURY) -
1898289A49 HOUSING ASSEMBLY, Driveshaft
(MARINER)HOUSING ASSEMBLY, Driveshaft
(MARINER) -
216-903501 STUD, (M10 x 100), DRIVE SHAFT HOUSING
(LONG)STUD, (M10 x 100), DRIVE SHAFT HOUSING
(LONG) -
216-903502 STUD, (M10 x 227), DRIVE SHAFT HOUSING
(X-LONG)STUD, (M10 x 227), DRIVE SHAFT HOUSING
(X-LONG) -
310-4000380 SCREW, (M10 x 45), GEAR HOUSING
(LONG)SCREW, (M10 x 45), GEAR HOUSING
(LONG) -
416-903503 STUD, (M10 x 190), GEAR HOUSING
(X-LONG)STUD, (M10 x 190), GEAR HOUSING
(X-LONG) -
512-45176 WASHER, GEAR HOUSING STUD/SCREWWASHER, GEAR HOUSING STUD/SCREW
-
611-40140 NUT, (M10), GEAR HOUSING STUD
(X-LONG - QUAN. OF 5)NUT, (M10), GEAR HOUSING STUD
(X-LONG - QUAN. OF 5) -
7429222 GUIDE, PUSH ROD (NON POWER TRIM)GUIDE, PUSH ROD (NON POWER TRIM)
-
7A429221 PLUG (POWER TRIM)PLUG (POWER TRIM)
-
822-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
922-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1022-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1114664A2 HOOK ASSEMBLY, Reverse, NON POWER TRIMHOOK ASSEMBLY, Reverse, NON POWER TRIM
-
1216686 PUSH ROD, NON POWER TRIMPUSH ROD, NON POWER TRIM
-
1399606 SHAFT, REVERSE LOCK - NON POWER TRIMSHAFT, REVERSE LOCK - NON POWER TRIM
-
1418-45882 COTTER PIN, SHAFT - NON POWER TRIMCOTTER PIN, SHAFT - NON POWER TRIM
-
1523-69132 BUSHING, REVERSE LOCK SHAFT - NON POWER TRIMBUSHING, REVERSE LOCK SHAFT - NON POWER TRIM
-
1624-996261 SPRING, REVERSE LOCK - NON POWER TRIMSPRING, REVERSE LOCK - NON POWER TRIM
-
1718-47959 COTTER PIN, SPRING - NON POWER TRIMCOTTER PIN, SPRING - NON POWER TRIM
-
1812-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - NON POWER TRIMWASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - NON POWER TRIM
-
1924-44297 SPRING, PUSH ROD NUT - NON POWER TRIMSPRING, PUSH ROD NUT - NON POWER TRIM
-
20996361 YOKE, PUSH ROD - NON POWER TRIMYOKE, PUSH ROD - NON POWER TRIM
-
2111-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD - NON POWER TRIMNUT, (.312-24) Stainless Steel, JAM - PUSH ROD - NON POWER TRIM
-
2217-99663 PIN, Clevis, REVERSE LOCK - NON POWER TRIMPIN, Clevis, REVERSE LOCK - NON POWER TRIM
-
2318-25191 COTTER PIN, CLEVIS PIN - NON POWER TRIMCOTTER PIN, CLEVIS PIN - NON POWER TRIM
-
2442930A1 MOUNT, LOWER
(LONG)MOUNT, LOWER
(LONG) -
2444343T1 MOUNT, LOWER
(X-LONG)MOUNT, LOWER
(X-LONG) -
2510-898835001 BOLT, (M12 x 154), LOWER MOUNTBOLT, (M12 x 154), LOWER MOUNT
-
2612-28051 WASHER, LOWER MOUNT BOLTWASHER, LOWER MOUNT BOLT
-
2712-28053 WASHER, LOWER MOUNT BOLTWASHER, LOWER MOUNT BOLT
-
2812-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT BOLTWASHER, (.875 Inch Outside Diameter), LOWER MOUNT BOLT
-
2911-43528 NUT, (M12), LOWER MOUNT BOLTNUT, (M12), LOWER MOUNT BOLT
-
3088238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3110-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRESCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
-
328M0036730 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
3311-35521 NUT, NYLON - COVER SCREWNUT, NYLON - COVER SCREW
-
3410-40011149 SCREW, CLAMPSCREW, CLAMP
-
35100-8M4500752 COVER, LOWER MOUNT
(MERCURY)COVER, LOWER MOUNT
(MERCURY) -
35100-8M4500752 COVER, LOWER MOUNT
(MARINER)COVER, LOWER MOUNT
(MARINER) -
3610-88417 SCREW, (#12-24 x .620), COVERSCREW, (#12-24 x .620), COVER
-
--12092A3 SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
(MERCURY)SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
(MERCURY) -
--12092A4 SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
(MARINER)SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
(MARINER)
