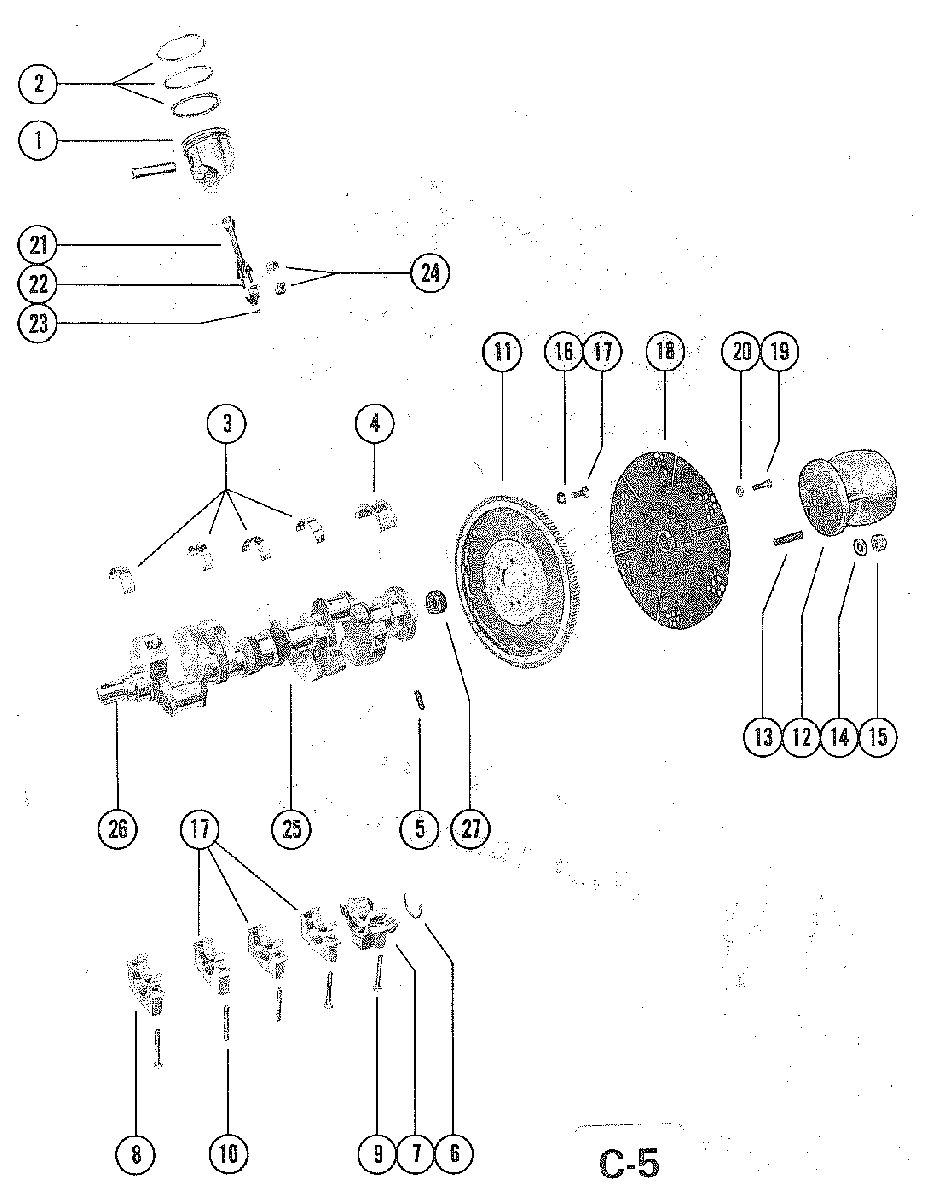

CRANKSHAFT AND PISTONS для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
1735-6538 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
-
1735-6616 PISTON AND PISTON PIN ASSEMBLY (.010 O.S.)PISTON AND PISTON PIN ASSEMBLY (.010 O.S.)
-
1735-879194030 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
-
239-75609 RING, PISTON - 8 SETS (STANDARD)RING, PISTON - 8 SETS (STANDARD)
-
239-75981 RING, PISTON - 8 SETS (.030 O.S.)RING, PISTON - 8 SETS (.030 O.S.)
-
323-818465 BEARING UNIT, CRANKSHAFT (STANDARD)BEARING UNIT, CRANKSHAFT (STANDARD)
-
323-818466 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
-
323-52207 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
-
323-818467 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
-
323-818468 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
-
423-818465 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
-
423-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
-
423-52213 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
-
423-818467 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
-
423-818468 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
-
517-24813 PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4" DIA.)PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4" DIA.)
-
626-814622 OIL SEAL, REAR CRANKSHAFT BEARING CAP(STANDARD ROTATION)OIL SEAL, REAR CRANKSHAFT BEARING CAP(STANDARD ROTATION)
-
626-35313 OIL SEAL, REAR CRANKSHAFT BEARING CAP(OPPOSITE ROTATION)OIL SEAL, REAR CRANKSHAFT BEARING CAP(OPPOSITE ROTATION)
-
752217 CAP, REAR - CRANKSHAFT BEARINGCAP, REAR - CRANKSHAFT BEARING
-
854789 CAP, FRONT AND INTERMEDIATE - CRANKSHAFT BEARINGCAP, FRONT AND INTERMEDIATE - CRANKSHAFT BEARING
-
910-54788 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
-
1016-54790 STUD, OIL PAN BAFFLE ATTACHINGSTUD, OIL PAN BAFFLE ATTACHING
-
--17-843378 PIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMPPIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
-
11222-6355 FLYWHEEL ASSEMBLY(STERN DRIVE)FLYWHEEL ASSEMBLY(STERN DRIVE)
-
11230-4614 FLYWHEEL ASSEMBLY(INBOARD)FLYWHEEL ASSEMBLY(INBOARD)
-
1276850A2 COUPLING ASSEMBLY
MCM 228COUPLING ASSEMBLY
MCM 228 -
1316-98532A1 STUD, COUPLER TO FLYWHEEL
MCM 228STUD, COUPLER TO FLYWHEEL
MCM 228 -
1412-34567 WASHER, COUPLER TO FLYWHEEL STUD
MCM 228WASHER, COUPLER TO FLYWHEEL STUD
MCM 228 -
1511-34933 NUT, COUPLER STUDS TO FLYWHEEL
MCM 228NUT, COUPLER STUDS TO FLYWHEEL
MCM 228 -
1613-39131 LOCKWASHER, FLYWHEEL SCREWLOCKWASHER, FLYWHEEL SCREW
-
1710-845757 SCREW, FLYWHEEL TO CRANKSHAFTSCREW, FLYWHEEL TO CRANKSHAFT
-
1898147A1 DRIVE PLATE, FLYWHEEL(MCM 228 TR)DRIVE PLATE, FLYWHEEL(MCM 228 TR)
-
1847608A1 DRIVE PLATE, FLYWHEEL(MIE 228)DRIVE PLATE, FLYWHEEL(MIE 228)
-
1910-35091 SCREW, DRIVE PLATE TO FLYWHEELSCREW, DRIVE PLATE TO FLYWHEEL
-
2013-35048 LOCKWASHER, DRIVE PLATE SCREWLOCKWASHER, DRIVE PLATE SCREW
-
21614-8164T CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2210-85802 BOLT, CONNECTING ROD CAPBOLT, CONNECTING ROD CAP
-
2311-37493 NUT, CONNECTING ROD CAP BOLTNUT, CONNECTING ROD CAP BOLT
-
2423-85701 BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
-
2423-85702 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
-
2423-85703 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
-
2423-85704 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
-
2423-85705 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
-
25429-6537 CRANKSHAFTCRANKSHAFT
-
2628-34466 KEY, CRANKSHAFT PULLEY AND BALANCERKEY, CRANKSHAFT PULLEY AND BALANCER
-
2723-71647 BUSHING, PILOT - CRANKSHAFT (MCM 228 AND MCM 228 TR)BUSHING, PILOT - CRANKSHAFT (MCM 228 AND MCM 228 TR)
