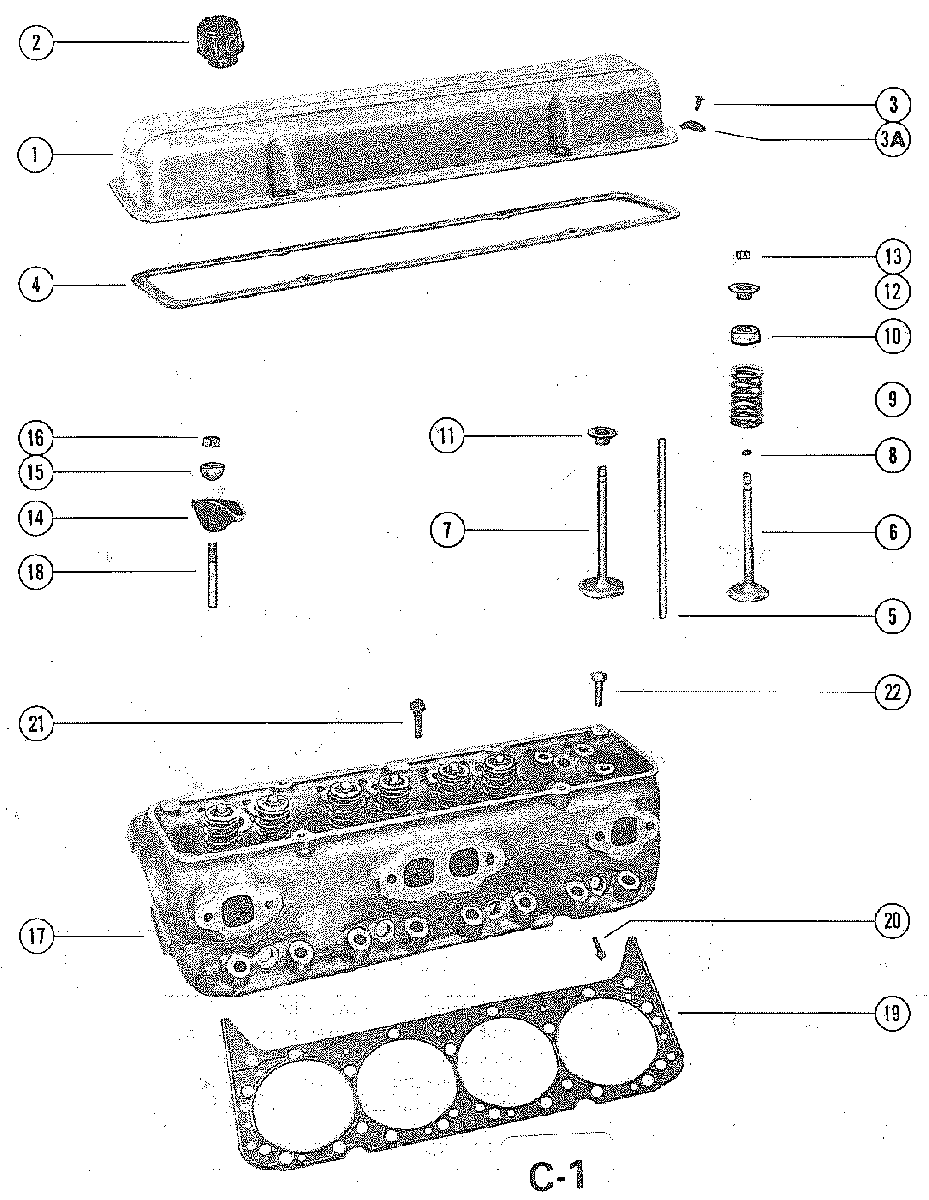

ROCKER COVER AND CYLINDER HEAD для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
179961T1 COVER, ROCKERCOVER, ROCKER
-
-37-77553 DECAL, HORSEPOWER (228 H. P.)-MCM 228DECAL, HORSEPOWER (228 H. P.)-MCM 228
-
-37-77254 DECAL, ROCKER COVER (WAVES)-MCM 228 AND MCM 228 TRDECAL, ROCKER COVER (WAVES)-MCM 228 AND MCM 228 TR
-
-37-77554 DECAL, HORSPOWER (228 H.P.)-MCM 228 TRDECAL, HORSPOWER (228 H.P.)-MCM 228 TR
-
-37-79126 DECAL, HORSEPOWER (228 H.P.) MIE 228DECAL, HORSEPOWER (228 H.P.) MIE 228
-
-37-77255 DECAL, ROCKER COVER (WAVES) MIE 228DECAL, ROCKER COVER (WAVES) MIE 228
-
217345 CAP, OIL FILLERCAP, OIL FILLER
-
310-8M0040582 SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")
-
3A49174 REINFORCEMENT, VALVE ROCKER COVERREINFORCEMENT, VALVE ROCKER COVER
-
427-11999 GASKET, ROCKER VALVE COVERGASKET, ROCKER VALVE COVER
-
599948 ROD, VALVE PUSHROD, VALVE PUSH
-
635323 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
685803 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
687284 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
649076 VALVE, EXHAUST (.015 O.S.)VALVE, EXHAUST (.015 O.S.)
-
6883265 VALVE, EXHAUST (.015 O.S.)VALVE, EXHAUST (.015 O.S.)
-
762421 VALVE, INLET (STANDARD)VALVE, INLET (STANDARD)
-
762422 VALVE, INLET (.015 O.S.)VALVE, INLET (.015 O.S.)
-
826-34217 SEAL, VALVESEAL, VALVE
-
924-48347 SPRING, VALVE (INLET)SPRING, VALVE (INLET)
-
924-72642 SPRING, VALVE (EXHAUST)SPRING, VALVE (EXHAUST)
-
924-48347 SPRING, VAVLE (INLET AND EXHAUST)SPRING, VAVLE (INLET AND EXHAUST)
-
1034518001 SHIELD, VALVE SPRING CAPSHIELD, VALVE SPRING CAP
-
1148348 CAP, INLET VALVECAP, INLET VALVE
-
1211965 ROTATOR ASSEMBLY, VALVE SPRING - EXHAUST VALVEROTATOR ASSEMBLY, VALVE SPRING - EXHAUST VALVE
-
1328-547971 KEY, VALVE STEMKEY, VALVE STEM
-
1435329 ARM, ROCKER VALVEARM, ROCKER VALVE
-
1535331 BALL UNIT, ROCKER VALVE ARMBALL UNIT, ROCKER VALVE ARM
-
1611-34516 NUT, ROCKER VALVE ARM STUDNUT, ROCKER VALVE ARM STUD
-
17938-8549 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
17938-8549 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
1816-34522 STUD, ROCKER VALVE ARM (.003 O.S.)STUD, ROCKER VALVE ARM (.003 O.S.)
-
1816-34521 STUD, ROCKER VALVE ARM (.013 O.S.)STUD, ROCKER VALVE ARM (.013 O.S.)
-
1927-75611001 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2010-11968 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")
-
2110-119671 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
-
2210-11966 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")
