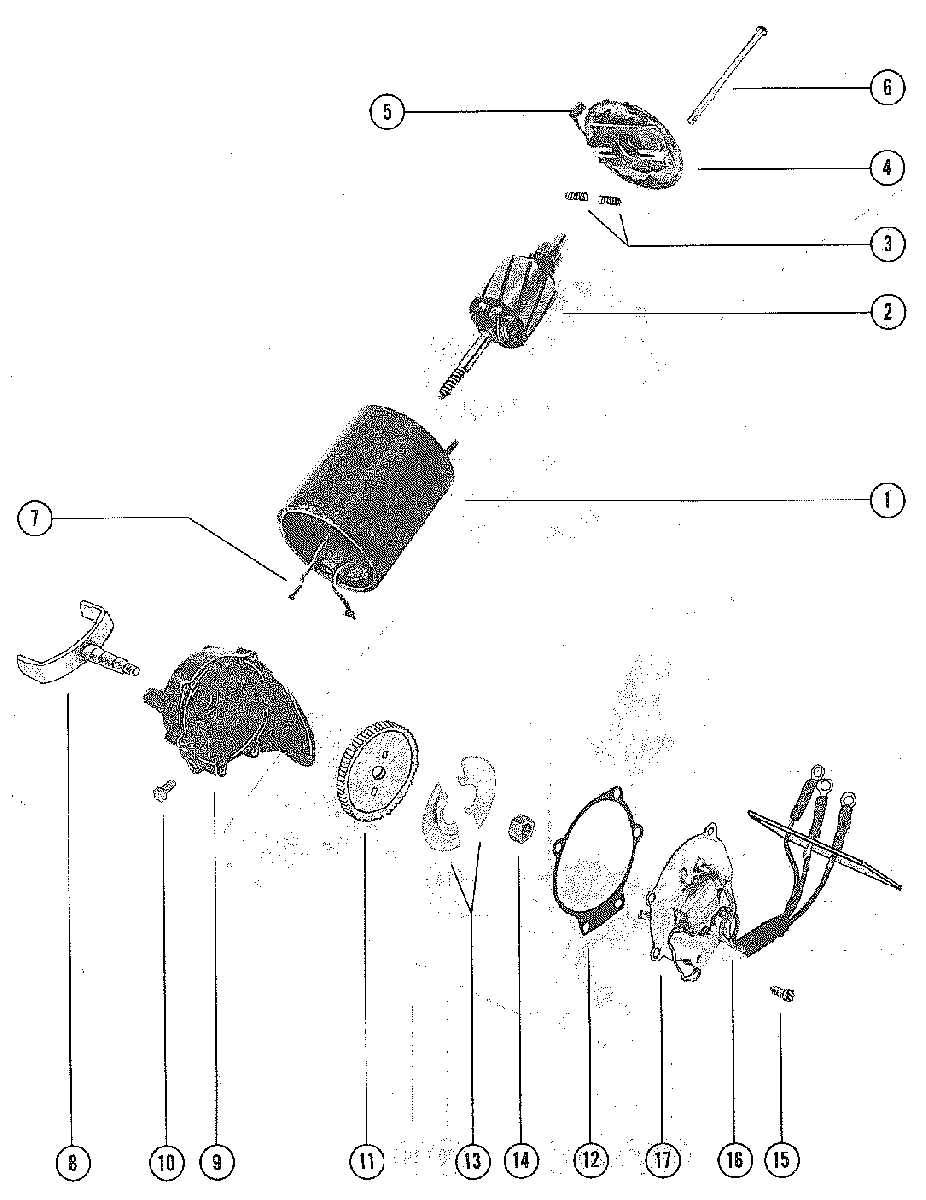

SHIFT ACTUATOR ASSEMBLY (MCM 228 TR) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
169392A4 SHIFT ACTUATOR ASSEMBLY, COMPLETE(SEE NOTE BELOW)SHIFT ACTUATOR ASSEMBLY, COMPLETE(SEE NOTE BELOW)
-
2392-4949 ARMATUREARMATURE
-
3392-4960 SPRING SET, BRUSHSPRING SET, BRUSH
-
4392-4955 HEAD ASSEMBLY, COMMUTATOR ENDHEAD ASSEMBLY, COMMUTATOR END
-
5392-4956 BRUSH SETBRUSH SET
-
6392-4962 THRU BOLTTHRU BOLT
-
7392-5928 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
8392-4951 CRANK ARM ASSEMBLYCRANK ARM ASSEMBLY
-
9392-4957 HEA ASSEMBLY, DRIVE ENDHEA ASSEMBLY, DRIVE END
-
10392-4959 SCREW AND DISC PACKAGESCREW AND DISC PACKAGE
-
11392-4952 GEAR AND GASKET PACKAGEGEAR AND GASKET PACKAGE
-
12392-4953 GASKET, COVERGASKET, COVER
-
13392-4958 PLATE, CAMPLATE, CAM
-
1411-20890 NUT, CRANK ARMNUT, CRANK ARM
-
1510-47220 SCREW, COVER ATTACHING (3/8")SCREW, COVER ATTACHING (3/8")
-
1684-62995A1 HARNESS ASSEMBLY (3 WIRE LEAD)HARNESS ASSEMBLY (3 WIRE LEAD)
-
1742528A6 SWITCH PLATE (INCLUDES 1 PIECE OF REF. NO. 12)SWITCH PLATE (INCLUDES 1 PIECE OF REF. NO. 12)
