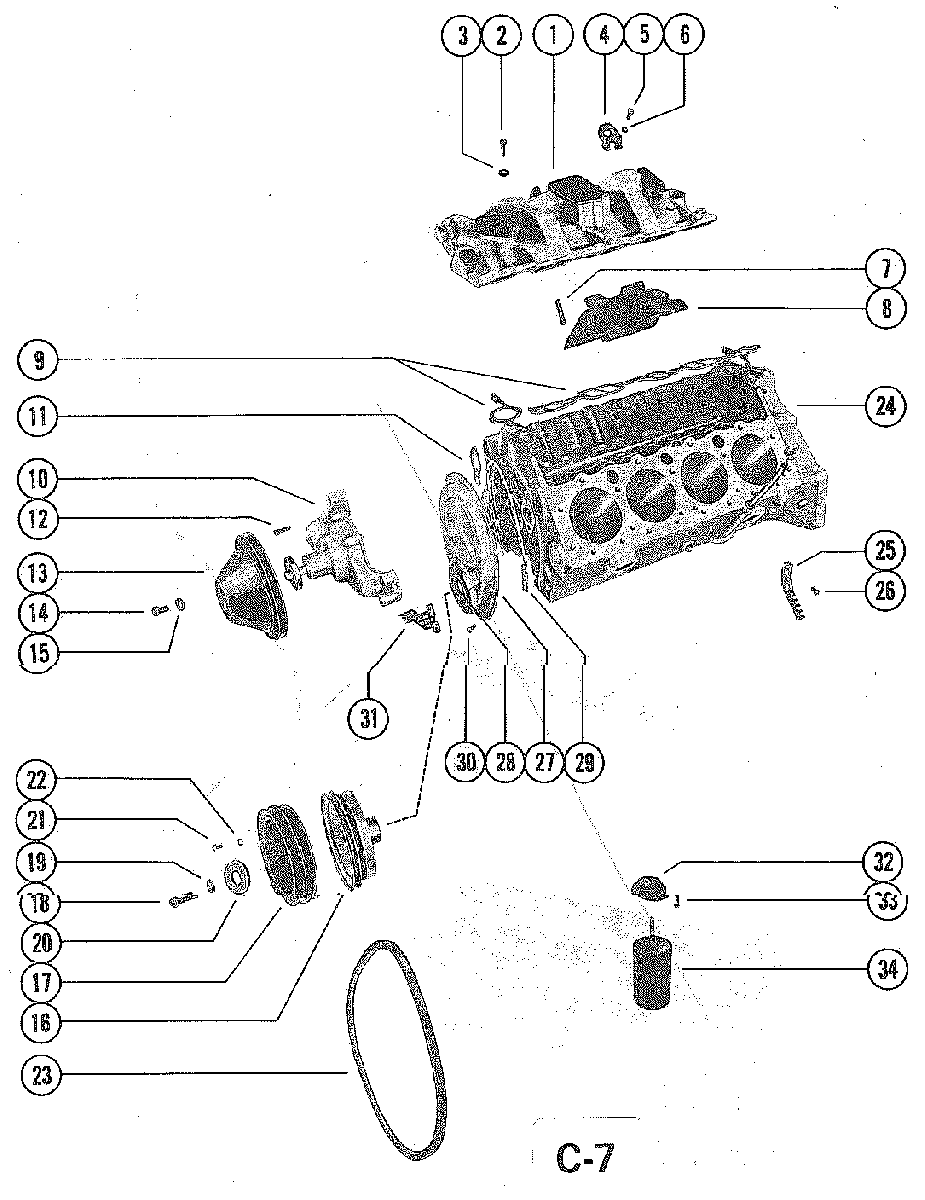

INTAKE MANIFOLD для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
172646T INTAKE MANIFOLDINTAKE MANIFOLD
-
210-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
-
210-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
-
312-49112 WASHER, INTAK MANIFOLD BOLTWASHER, INTAK MANIFOLD BOLT
-
454-47512 EYE, LIFTING
MCM 228 TR AND MIE 228EYE, LIFTING
MCM 228 TR AND MIE 228 -
510-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")
MCM 228 TR AND MIE 228SCREW, LIFTING EYE ATTACHING (1 1/2")
MCM 228 TR AND MIE 228 -
613-35048 LOCKWASHER, LIFTING EYE SCREW
MCM 228 TR AND MIE 228LOCKWASHER, LIFTING EYE SCREW
MCM 228 TR AND MIE 228 -
716-66203 STUD, GUARD TO INTAKE MANIFOLDSTUD, GUARD TO INTAKE MANIFOLD
-
872647 GUARD, INTAKE MANIFOLDGUARD, INTAKE MANIFOLD
-
927-17145 GASKET SET, INTAKE MANIFOLDGASKET SET, INTAKE MANIFOLD
-
1046-8M0113734 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1127-34897 GASKET, WATER PUMP MOUNTINGGASKET, WATER PUMP MOUNTING
-
1210-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
-
1210-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
-
1210-52200 SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
-
1216-8M0076418 STUD, WATER PUMP TO CYLINDER BLOCKSTUD, WATER PUMP TO CYLINDER BLOCK
-
1352349 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
1410-47277 SCREW, PULLEY TO WATER PUMP (3/4")SCREW, PULLEY TO WATER PUMP (3/4")
-
1513-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
1675420 BALANCER, HARMONIC - CRANKSHAFTBALANCER, HARMONIC - CRANKSHAFT
-
1733863T PULLEY, HARMONIC BALANCERPULLEY, HARMONIC BALANCER
-
1775040A1 PULLEY, HARMONIC BALANCER(WITH POWER STEERING)PULLEY, HARMONIC BALANCER(WITH POWER STEERING)
-
1810-72626 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
-
1913-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLTLOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2012-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLTWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2110-35786 BOLT, PULLEY TO BALANCER (1 1/4") WITH POWER STEERING)BOLT, PULLEY TO BALANCER (1 1/4") WITH POWER STEERING)
-
2110-34352 BOLT, PULLEY TO BALANCER (7/8") WITHOUT POWER STEERINGBOLT, PULLEY TO BALANCER (7/8") WITHOUT POWER STEERING
-
2213-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLTLOCKWASHER, CRANKSHAFT PULLEY BOLT
-
2357-48120Q1 BELT, ALTERNATOR DRIVE (46")-
MCM 228/228TR - #4765100 AND UP MIE 228- #4929029 AND BELOWBELT, ALTERNATOR DRIVE (46")-
MCM 228/228TR - #4765100 AND UP MIE 228- #4929029 AND BELOW -
2357-93658Q BELT, ALTERNATOR DRIVE (44")
MIE 228 - SERIAL#4929030 AND UPBELT, ALTERNATOR DRIVE (44")
MIE 228 - SERIAL#4929030 AND UP -
24841-6535 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
2535365 SUPPORT, SPARK PLUG LEAD WIRESUPPORT, SPARK PLUG LEAD WIRE
-
2610-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1?2")SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1?2")
-
278M0127828 COVER ASSEMBLY, CRANKCASE FRONT(STANDARD ROTATION)COVER ASSEMBLY, CRANKCASE FRONT(STANDARD ROTATION)
-
278M0127828 COVER ASSEMBLY, CRANKCASE FRONT(OPPOSITE ROTATION)COVER ASSEMBLY, CRANKCASE FRONT(OPPOSITE ROTATION)
-
2826-97335 OIL SEAL, CRANKCASE FRONT COVER(STANDARD ROTATION) 1OIL SEAL, CRANKCASE FRONT COVER(STANDARD ROTATION) 1
-
2826-97335 OIL SEAL, CRANKCASE FRONT COVER(OPPOSITE ROTATION)OIL SEAL, CRANKCASE FRONT COVER(OPPOSITE ROTATION)
-
2927-14250 GASKET, CRANKCASE FRONT END COVERGASKET, CRANKCASE FRONT END COVER
-
3010-8M0040582 SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")
-
3175435A1 POINTER, TIMINGPOINTER, TIMING
-
3271920 FILTER VALVE ASSEMBLY
MCM 228 AND MCM 228 TRFILTER VALVE ASSEMBLY
MCM 228 AND MCM 228 TR -
3310-54786 SCREW, FILTER VALVE TO CYLINDER BLOCK
MCM 228 AND MCM 228 TRSCREW, FILTER VALVE TO CYLINDER BLOCK
MCM 228 AND MCM 228 TR -
3435-866340Q03 OIL FILTER ASSEMBLY
MCM 228 AND MCM 228 TROIL FILTER ASSEMBLY
MCM 228 AND MCM 228 TR
