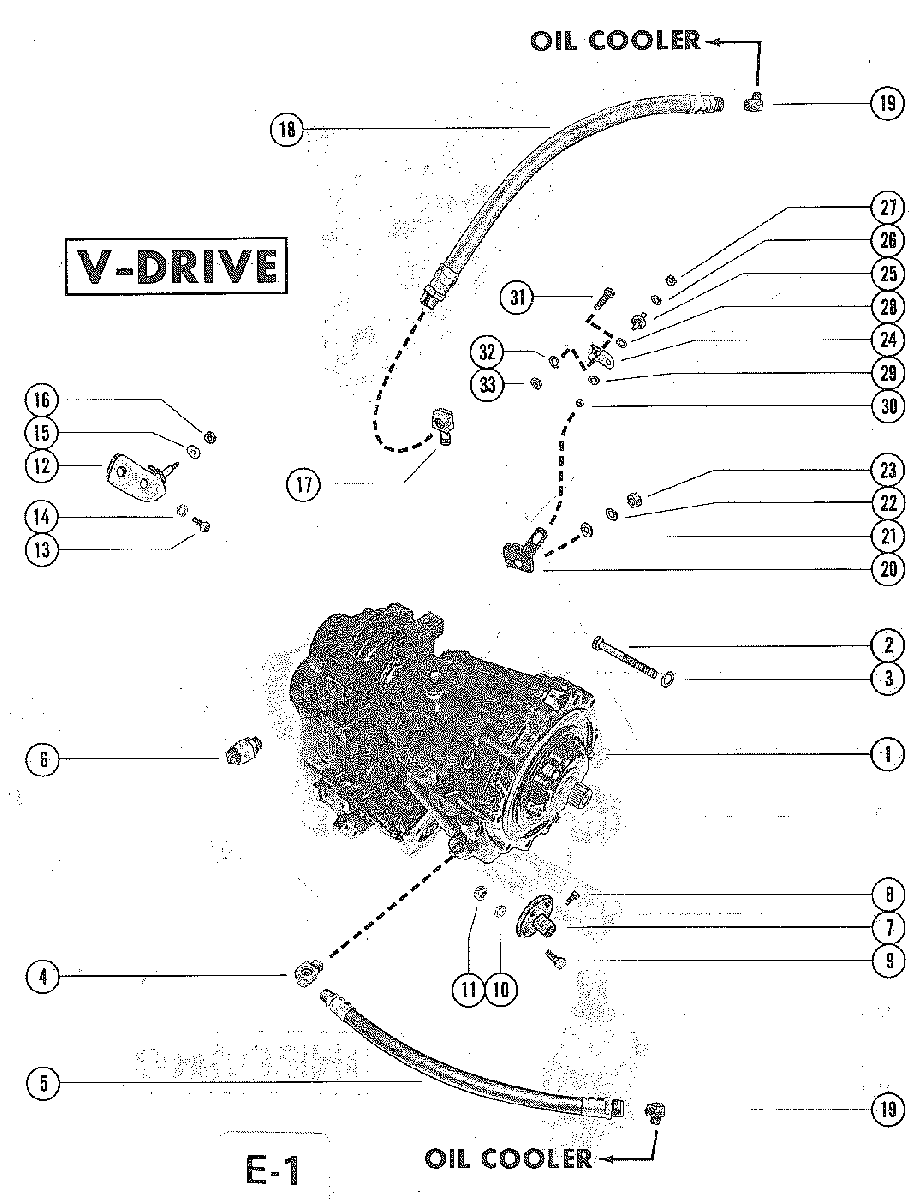

TRANSMISSION AND RELATED PARTS (V-DRIVE) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
160953A13 TRANSMISSION, V-DRIVE (DIRECT DRIVE)TRANSMISSION, V-DRIVE (DIRECT DRIVE)
-
160588A11 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
-
160954A11 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
-
160955A10 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
-
160956A11 TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
313-32993 LOCKWASHER, TRANSMISSION SCREWLOCKWASHER, TRANSMISSION SCREW
-
422-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
532-475169 HOSE, OIL COOLER TO TRANSMISSION (37")HOSE, OIL COOLER TO TRANSMISSION (37")
-
647613 SWITCH, NEUTRAL SAFTEYSWITCH, NEUTRAL SAFTEY
-
779476A1 FLANGE ASSEMBLY (1")FLANGE ASSEMBLY (1")
-
779476A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
779476A3 FLANGE ASSEMBLY (1 1/4")FLANGE ASSEMBLY (1 1/4")
-
779476A4 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
779476A5 FLANGE ASSEMBLY ( 1 1/2")FLANGE ASSEMBLY ( 1 1/2")
-
779476A6 FLANGE ASSEMBLY (1 3/4")FLANGE ASSEMBLY (1 3/4")
-
779476A7 FLANGE ASSEMBLY (2")FLANGE ASSEMBLY (2")
-
810-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTESCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE -
810-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTESCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTE -
810-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTESCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE -
910-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
-
1013-32993 LOCKWASHER, FLANGE SCREWLOCKWASHER, FLANGE SCREW
-
1111-22024 NUT, FLANGE SCREWNUT, FLANGE SCREW
-
1263815A1 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
1310-65746 SCREW, BRACKET TO FLYWHEEL HOUSINGSCREW, BRACKET TO FLYWHEEL HOUSING
-
1413-26992 LOCKWASHER, BRACKET TO TRANSMISSION SCREWLOCKWASHER, BRACKET TO TRANSMISSION SCREW
-
1512-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
1611-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)NUT, SHIFT CABLE TO BRACKET STUD (10-32)
-
1722-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
1832-47516610 HOSE, TRANSMISSION TO OIL COOLER (33")HOSE, TRANSMISSION TO OIL COOLER (33")
-
1922-47629 ELBOW, HOSE TO OIL COOLER (90 DEGREES)ELBOW, HOSE TO OIL COOLER (90 DEGREES)
-
2048515 LEVER, SHIFT-TRANSMISSIONLEVER, SHIFT-TRANSMISSION
-
2112-20722 WASHER, SHIFT LEVER TO TRANSMISSIONWASHER, SHIFT LEVER TO TRANSMISSION
-
2213-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSIONLOCKWASHER, SHIFT LEVER TO TRANSMISSION
-
2311-22053 NUT, SHIFT LEVER TO TRANSMISSIONNUT, SHIFT LEVER TO TRANSMISSION
-
2448652 ADAPTOR, SHIFT CABLE TO SHIFT LEVERADAPTOR, SHIFT CABLE TO SHIFT LEVER
-
2516-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2612-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2711-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
-
2813-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
2912-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3011-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)NUT, SHIFT CABLE ADAPTOR STUD (10-32)
-
3110-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
-
3212-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3311-29250 NUT, SHIFT CABLE SCREW (5/16-24)NUT, SHIFT CABLE SCREW (5/16-24)
