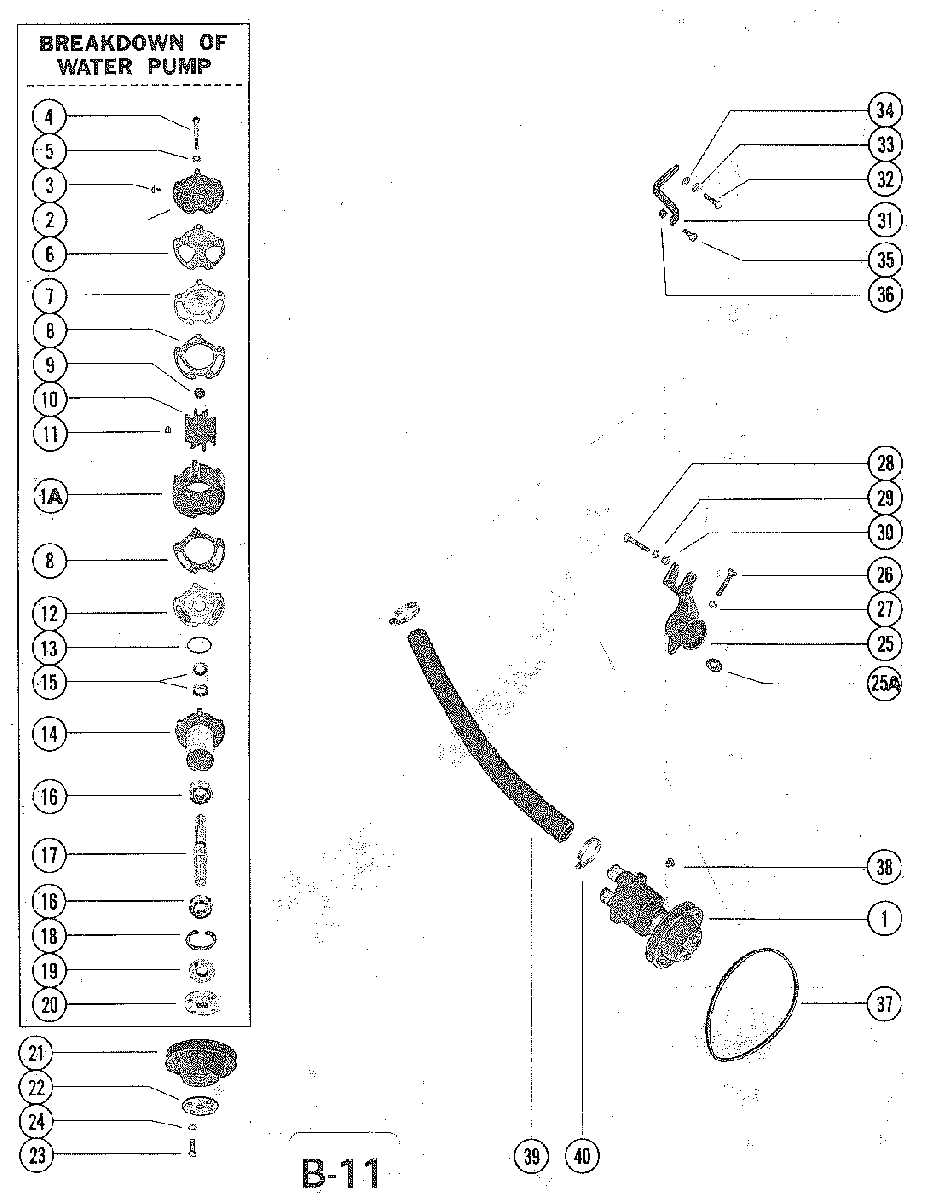

WATER PUMP ASSEMBLY (MIE) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
146-72774A32 WATER PUMP ASSEMBLY
SERIAL 04775785-09999999WATER PUMP ASSEMBLY
SERIAL 04775785-09999999 -
1A46-72774A40 BODY, WATER PUMP (PLASTIC BODY)BODY, WATER PUMP (PLASTIC BODY)
-
287631A5 COVER, WATER PUMPCOVER, WATER PUMP
-
310-28642 SCREW, WATER PUMP SLEEVE (1/4")SCREW, WATER PUMP SLEEVE (1/4")
-
410-63328 SCREW, COVER TO BODY (3")SCREW, COVER TO BODY (3")
-
511-20739 WASHER, COVER TO BODY SCREWWASHER, COVER TO BODY SCREW
-
627-8052151 GASKET, COVER TO OUTER WEAR PLATEGASKET, COVER TO OUTER WEAR PLATE
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKET, BODY TO WEAR PLATEGASKET, BODY TO WEAR PLATE
-
919-59504 PLUG, IMPELLERPLUG, IMPELLER
-
1047-59362T1 IMPELLER ASSEMBLYIMPELLER ASSEMBLY
-
1128-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
1294576 WEAR PLATEWEAR PLATE
-
1325-37340 "O" RING, PUMP HOUSING TO INNER WEAR PLATE"O" RING, PUMP HOUSING TO INNER WEAR PLATE
-
1446-94913A1 PUMP HOUSINGPUMP HOUSING
-
1526-90562 OIL SEAL, WATER PUMP SHAFTOIL SEAL, WATER PUMP SHAFT
-
1630-72961 BALL BEARING, WATER PUMP SHAFTBALL BEARING, WATER PUMP SHAFT
-
1759501A1 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1853-23720 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
1926-72785 OIL SEAL, WATER PUMP SHAFTOIL SEAL, WATER PUMP SHAFT
-
2047530 HUB, WATER PUMP PULLEYHUB, WATER PUMP PULLEY
-
2173798A1 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
2258265 CLAMPING RING, PUMP PULLEYCLAMPING RING, PUMP PULLEY
-
2310-47277 SCREW, PULLEY TO WATER PUMP (3/4")SCREW, PULLEY TO WATER PUMP (3/4")
-
2413-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
2547488A1 BRACKET, WATER PUMPBRACKET, WATER PUMP
-
25A12-79643 WASHER, BRACE SCREW (FOR SLOT)WASHER, BRACE SCREW (FOR SLOT)
-
2610-34354 SCREW, WATER PUMP BRACKET CLAMPINGSCREW, WATER PUMP BRACKET CLAMPING
-
2713-35048 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
2810-34353 SCREW, WATER PUMP BRACKET TO ENGINE (1")SCREW, WATER PUMP BRACKET TO ENGINE (1")
-
2913-35048 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
3012-34714 WASHER, WATER PUMP BRACKET SCREWWASHER, WATER PUMP BRACKET SCREW
-
3147544 BRACE, WATER PUMP ADJUSTINGBRACE, WATER PUMP ADJUSTING
-
3210-34353 SCREW, BRACE TO STEERING PUMPSCREW, BRACE TO STEERING PUMP
-
3313-35048 LOCKWASHER, ADJUSTING BRACE SCREWLOCKWASHER, ADJUSTING BRACE SCREW
-
3412-34714 WASHER, ADJUSTING BRACE SCREWWASHER, ADJUSTING BRACE SCREW
-
3510-35786 SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")SCREW, ADJUSTING BRACE TO BRACKET SCREW (1")
-
3611-46335 NUT, ADJUSTING BRACE SCREWNUT, ADJUSTING BRACE SCREW
-
3757-74271Q BELT, WATER PUMPBELT, WATER PUMP
-
3822-328022 PLUG, PIPE (FOR WATER PUMP BODY)PLUG, PIPE (FOR WATER PUMP BODY)
-
3932-86216 HOSE, MOLDED - WATER PUMP TO TRANSMISSION COOLERHOSE, MOLDED - WATER PUMP TO TRANSMISSION COOLER
-
4054-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
