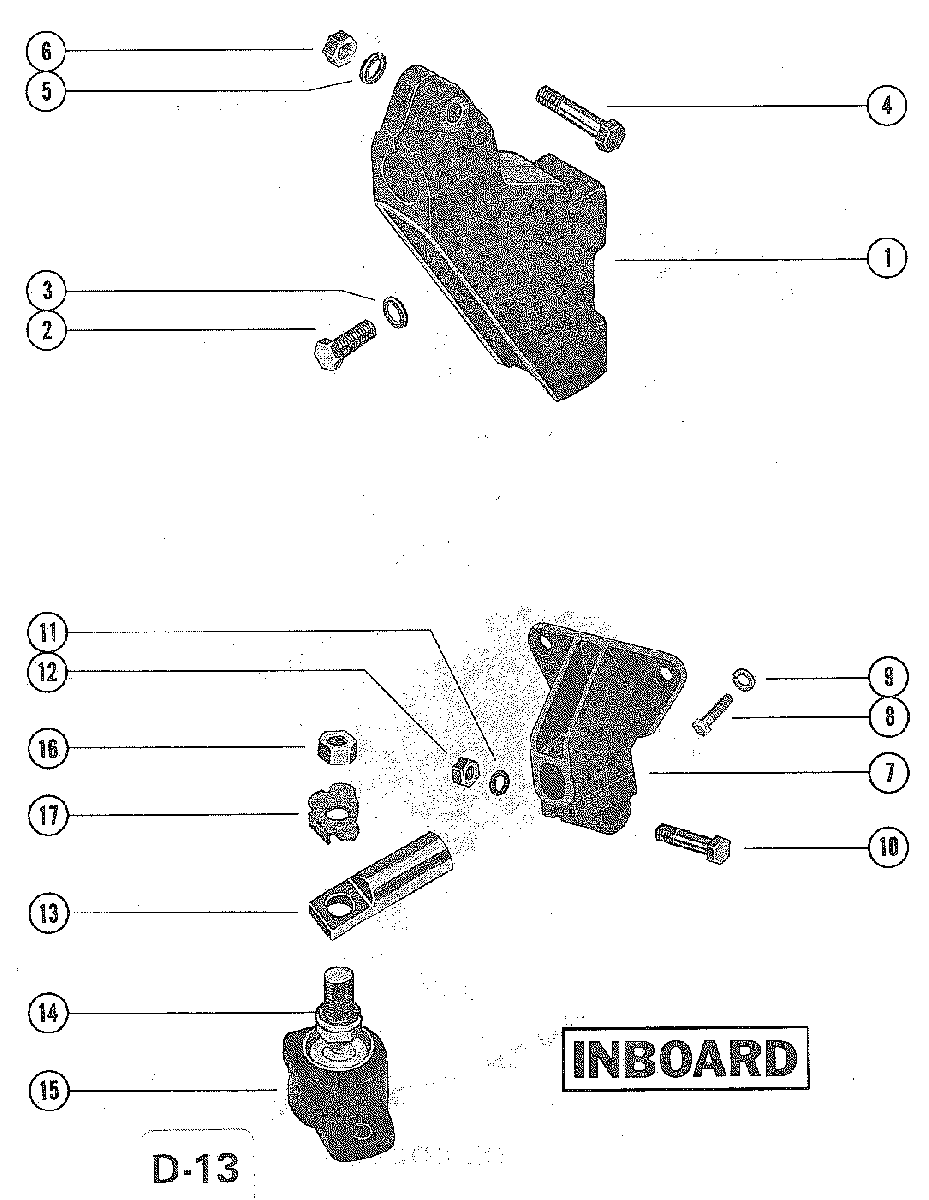

TRANSMISSION AND ENGINE MOUNTING (INBOARD) для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008
-
№АртикулНазвание
-
166417T BRACKET, MOUNTING-TRANSMISSION (REAR)BRACKET, MOUNTING-TRANSMISSION (REAR)
-
210-37269 SCREW, BRACKET TO TRANSMISSION (2")SCREW, BRACKET TO TRANSMISSION (2")
-
313-32993 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
410-57357 SCREW, CLAMPING-MOUNTING BRACKET (2 1/4")SCREW, CLAMPING-MOUNTING BRACKET (2 1/4")
-
513-32993 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
611-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
771128A2 BRACKET, MOUNTING-ENGINE (FRONT)BRACKET, MOUNTING-ENGINE (FRONT)
-
810-37612 SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
-
913-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
810-48424 SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")
-
913-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1010-37269 SCREW, CLAMPING-MOUNTING BRACKET (2")SCREW, CLAMPING-MOUNTING BRACKET (2")
-
1113-32993 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
1211-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
1366166A4 TRUNNION, ADJUSTING-MOUNTING BRACKETTRUNNION, ADJUSTING-MOUNTING BRACKET
-
1413-68102 LOCKWASHER, MOUNTING BRACKETLOCKWASHER, MOUNTING BRACKET
-
1566284A2 BASE, ENGINE MOUNTBASE, ENGINE MOUNT
-
1611-20739 NUT, JAM-ENGINE MOUNT BASENUT, JAM-ENGINE MOUNT BASE
-
1714-66658 TAB WASHER, BASE NUTTAB WASHER, BASE NUT
