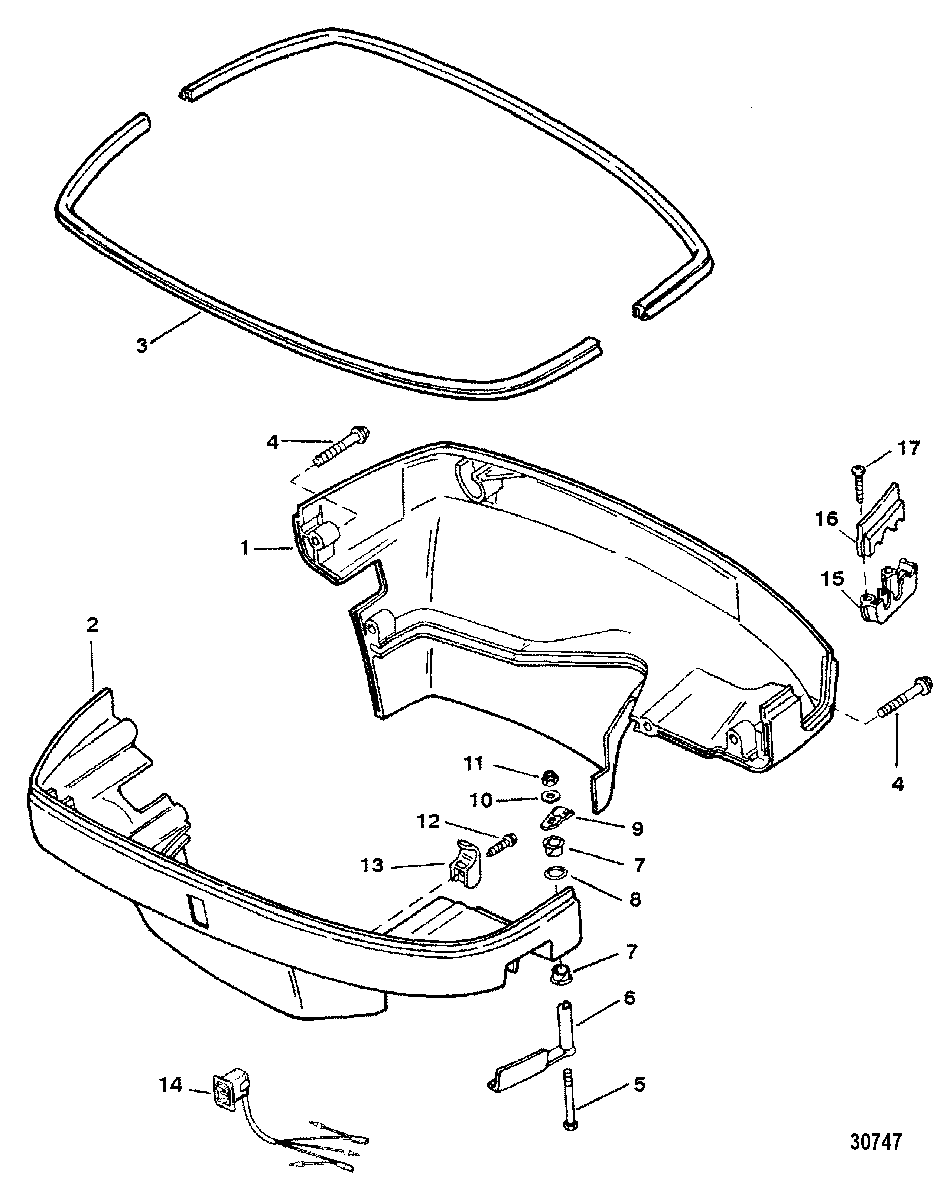

BOTTOM COWL для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
14009-818448A1 BOTTOM COWL
(PORT)BOTTOM COWL
(PORT) -
24009-818447A1 BOTTOM COWL
(STARBOARD)BOTTOM COWL
(STARBOARD) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
410-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
510-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
6889740A02 FRONT HANDLE, BlackFRONT HANDLE, Black
-
723-335891 BUSHINGBUSHING
-
825-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
98219423 PAWLPAWL
-
1012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
1111-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1354-822873 CLIPCLIP
-
1487-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1554-822024 CLAMPCLAMP
-
1654-822023 CLAMPCLAMP
-
1710-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
