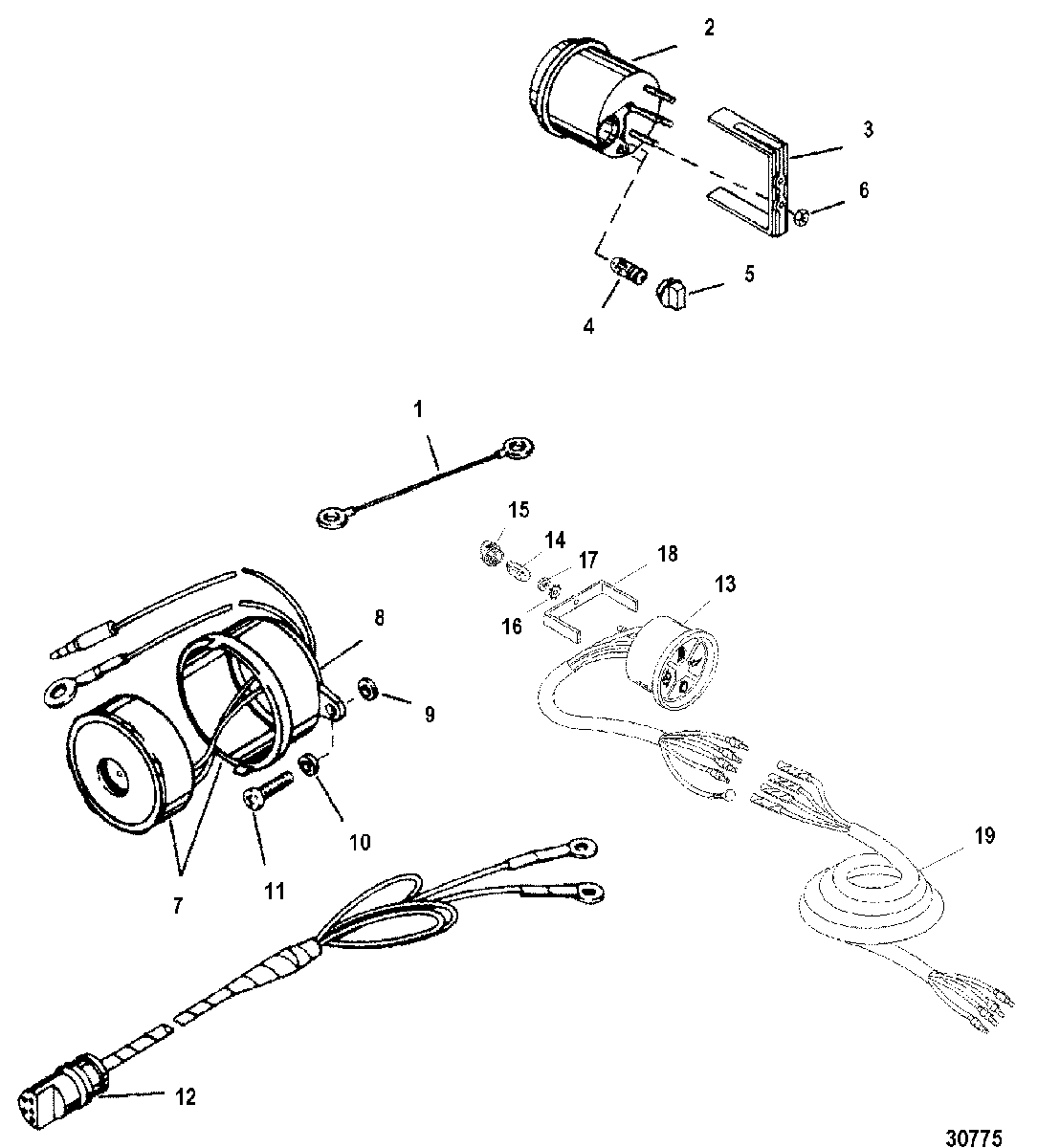

INSTRUMENTATION для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
184-86322A7 CABLE ASSEMBLY, (1.50 Feet) BlackCABLE ASSEMBLY, (1.50 Feet) Black
-
184-86323A5 CABLE ASSEMBLY, (1.50 Feet) PurpleCABLE ASSEMBLY, (1.50 Feet) Purple
-
279-895292Q41 GAUGE, Power Trim, White Face, Black Graduation, Black BezelGAUGE, Power Trim, White Face, Black Graduation, Black Bezel
-
379480 BRACKETBRACKET
-
488-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
588-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
611-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
768878A6 HORN ASSEMBLY, Buzzer AlarmHORN ASSEMBLY, Buzzer Alarm
-
868879 COVERCOVER
-
923-8M0084588 SPACERSPACER
-
1012-26427 WASHERWASHER
-
1110-35401 SCREW, (#10 x 1.00)SCREW, (#10 x 1.00)
-
1284-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
-
1379-859698A1 WARNING GAUGE KITWARNING GAUGE KIT
-
1488-15163 LAMPLAMP
-
1588-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1613-825361 LOCKWASHER, Star (#8)LOCKWASHER, Star (#8)
-
1711-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
18850020 CLAMPCLAMP
-
1984-827752A1 CABLE ASSEMBLY, (20.00 Feet)CABLE ASSEMBLY, (20.00 Feet)
