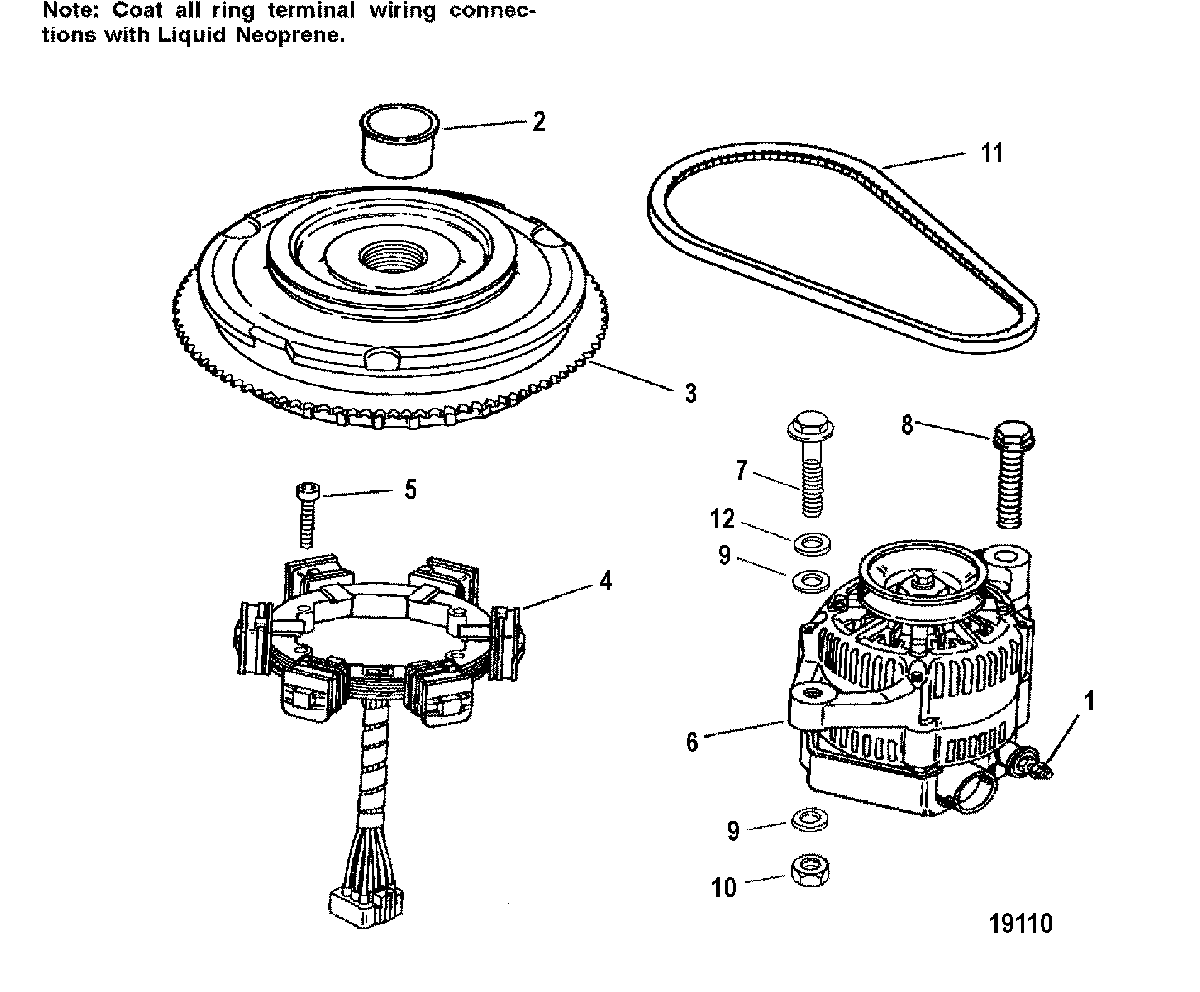

FLYWHEEL/STATOR для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
219-45907 PLUG, YellowPLUG, Yellow
-
3272-821033T2 FLYWHEELFLYWHEEL
-
4398-821935A5 STATORSTATOR
-
510-82494830 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
6821663A1 ALTERNATORALTERNATOR
-
710-82446155 SCREW, (M10 x 55)SCREW, (M10 x 55)
-
810-82130140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
912-796431 WASHERWASHER
-
1011-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
1157-49756Q1 V BELTV BELT
-
1212-17457 WASHERWASHER
