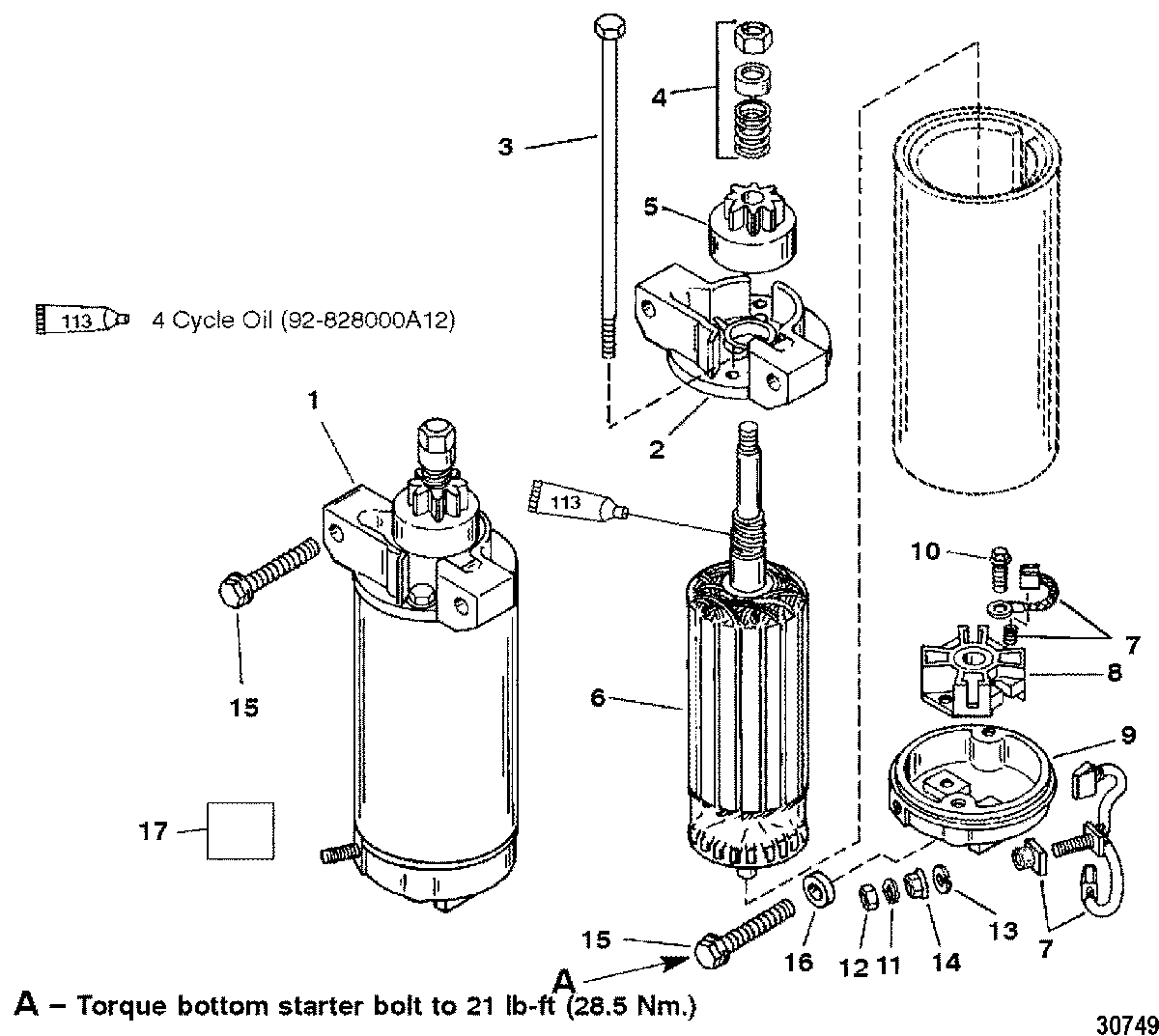

STARTER MOTOR для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
150-898265009 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
28236392 DRIVE CAPDRIVE CAP
-
310-823641 THRU BOLTTHRU BOLT
-
4823640T DRIVE KITDRIVE KIT
-
5898265015 PINIONPINION
-
6823638 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
98119011 CAP, CommutatorCAP, Commutator
-
10F15158 SCREWSCREW
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1211-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-20890 NUT, (.250-20)NUT, (.250-20)
-
1510-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1623-824921 SPACERSPACER
-
1737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
