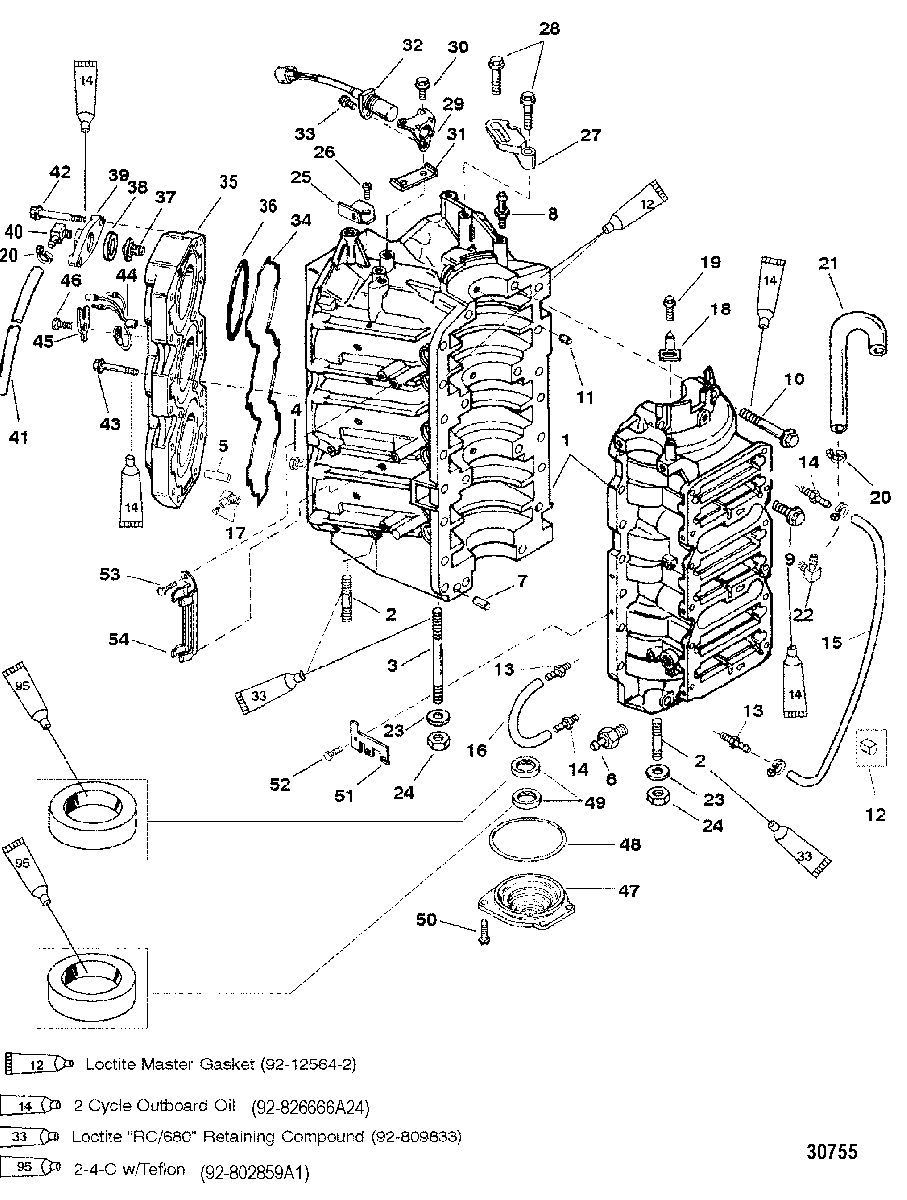

CYLINDER BLOCK AND END CAP для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
1885-9811A56 CYLINDER BLOCKCYLINDER BLOCK
-
216-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
316-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
422-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
58248577 DEFLECTORDEFLECTOR
-
621-8781051 CHECK VALVECHECK VALVE
-
717-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
88215832 PIN, SpecialPIN, Special
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1010-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1117-8M0036405 PINPIN
-
1219-850309001 PLUGPLUG
-
1321-426585 CHECK VALVECHECK VALVE
-
1421-8159234 CHECK VALVECHECK VALVE
-
1532-892024122 TUBING, (20.00 Feet Bulk) (Cut to 22-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 22-1/2 IN.)
-
1632-892024122 TUBING, (20.00 Feet Bulk) (Cut to 3-3/4 IN.)TUBING, (20.00 Feet Bulk) (Cut to 3-3/4 IN.)
-
1722-77863A1 FITTING ASSEMBLYFITTING ASSEMBLY
-
188217621 TIMING POINTERTIMING POINTER
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2132-826544A1 TUBING KITTUBING KIT
-
2222-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
2312-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2411-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
258256751 BRACKETBRACKET
-
2610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
278211051 BRACKET, AlternatorBRACKET, Alternator
-
2810-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
298212251 BRACKETBRACKET
-
3010-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
31822486 BRACKET, GuideBRACKET, Guide
-
32821909 SENSORSENSOR
-
3310-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
34818574 SEAL, Cylinder HeadSEAL, Cylinder Head
-
35812851A16 CYLINDER HEADCYLINDER HEAD
-
36878453 SEAL
SN# 0T235000 & UpSEAL
SN# 0T235000 & Up -
3625-818573 O-RING
SN# 0T234999 & BelowO-RING
SN# 0T234999 & Below -
37833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
-
3827-62386001 GASKET, ThermostatGASKET, Thermostat
-
3919801A1 THERMOSTAT COVERTHERMOSTAT COVER
-
4022-8167811 ELBOWELBOW
-
4132-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)
(PORT)HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)
(PORT) -
4132-77653101 HOSE, (48.00 Inches Bulk) (Cut to 20-1/2 IN.)
(STARBOARD)HOSE, (48.00 Inches Bulk) (Cut to 20-1/2 IN.)
(STARBOARD) -
4210-82446090 SCREW, (M8 x 90)SCREW, (M8 x 90)
-
4310-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
4413536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
45137151 RETAINERRETAINER
-
4610-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
471171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
4825-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
4926-8308981 SEALSEAL
-
5010-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
518261211 BRACKETBRACKET
-
5210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
5310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
548266241 CLAMPCLAMP
-
-61-848700A7 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
