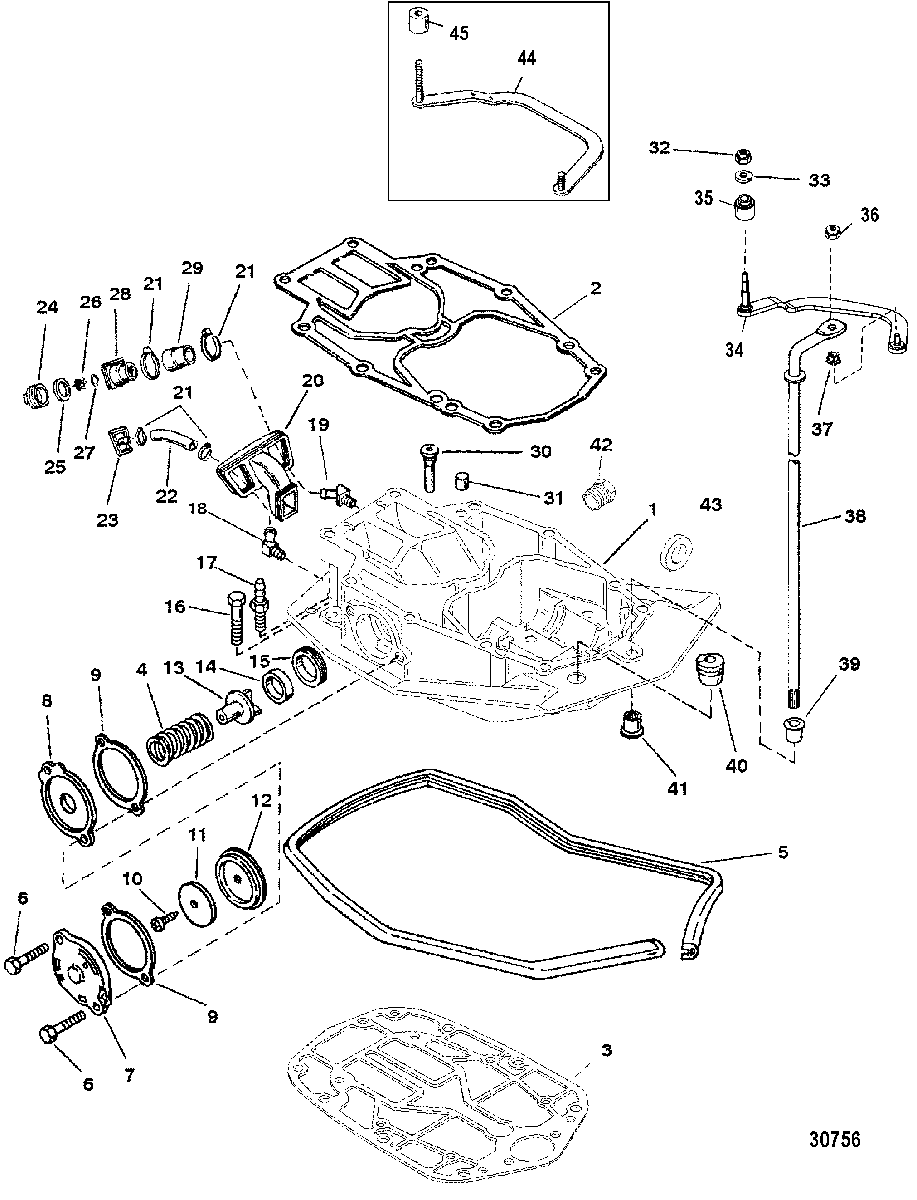

EXHAUST PLATE для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
1840192T5 PLATE, ExhaustPLATE, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (LOWER)GASKET (LOWER)
-
424-64878 SPRINGSPRING
-
58M0043157 SEALSEAL
-
610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
765663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
865664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
927-88907003 GASKETGASKET
-
1010-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1112-76451 WASHERWASHER
-
12648771 DIAPHRAGMDIAPHRAGM
-
13814189 POPPETPOPPET
-
1425-814191 GROMMETGROMMET
-
15814190 CARRIERCARRIER
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1722-34982 CONNECTORCONNECTOR
-
1822-782792 FITTING, Elbow 45 Degree (1.25)FITTING, Elbow 45 Degree (1.25)
-
1922-821975 ELBOW, 45 DegreeELBOW, 45 Degree
-
20821255 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2232-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 2-1/2 IN.)HOSE, (57.00 Inches Bulk) (Cut to 2-1/2 IN.)
-
2322-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2419-821908 PLUGPLUG
-
2512-821915 WASHERWASHER
-
268219631 CHECK VALVECHECK VALVE
-
2725-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
2822-821952 FITTINGFITTING
-
2932-821976 HOSEHOSE
-
3021-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
3117-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3312-35459 WASHERWASHER
-
34883142A03 SHIFT LINK
SN# 0T430431 & UpSHIFT LINK
SN# 0T430431 & Up -
358240121 ROLLER
SN# 0T430431 & UpROLLER
SN# 0T430431 & Up -
3611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3723-42994 BUSHINGBUSHING
-
388M0036408 SHIFT SHAFT, UpperSHIFT SHAFT, Upper
-
3923-48237 BUSHINGBUSHING
-
4025-12602002 GROMMETGROMMET
-
4143585 COUPLINGCOUPLING
-
4222-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
4323-840193 SPACERSPACER
-
44883142A03 SHIFT LINK
SN# 0T430430 & BelowSHIFT LINK
SN# 0T430430 & Below -
45824012 ROLLER
SN# 0T430430 & BelowROLLER
SN# 0T430430 & Below -
-27-832933A98 GASKET SETGASKET SET
-
-61-848700A7 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
