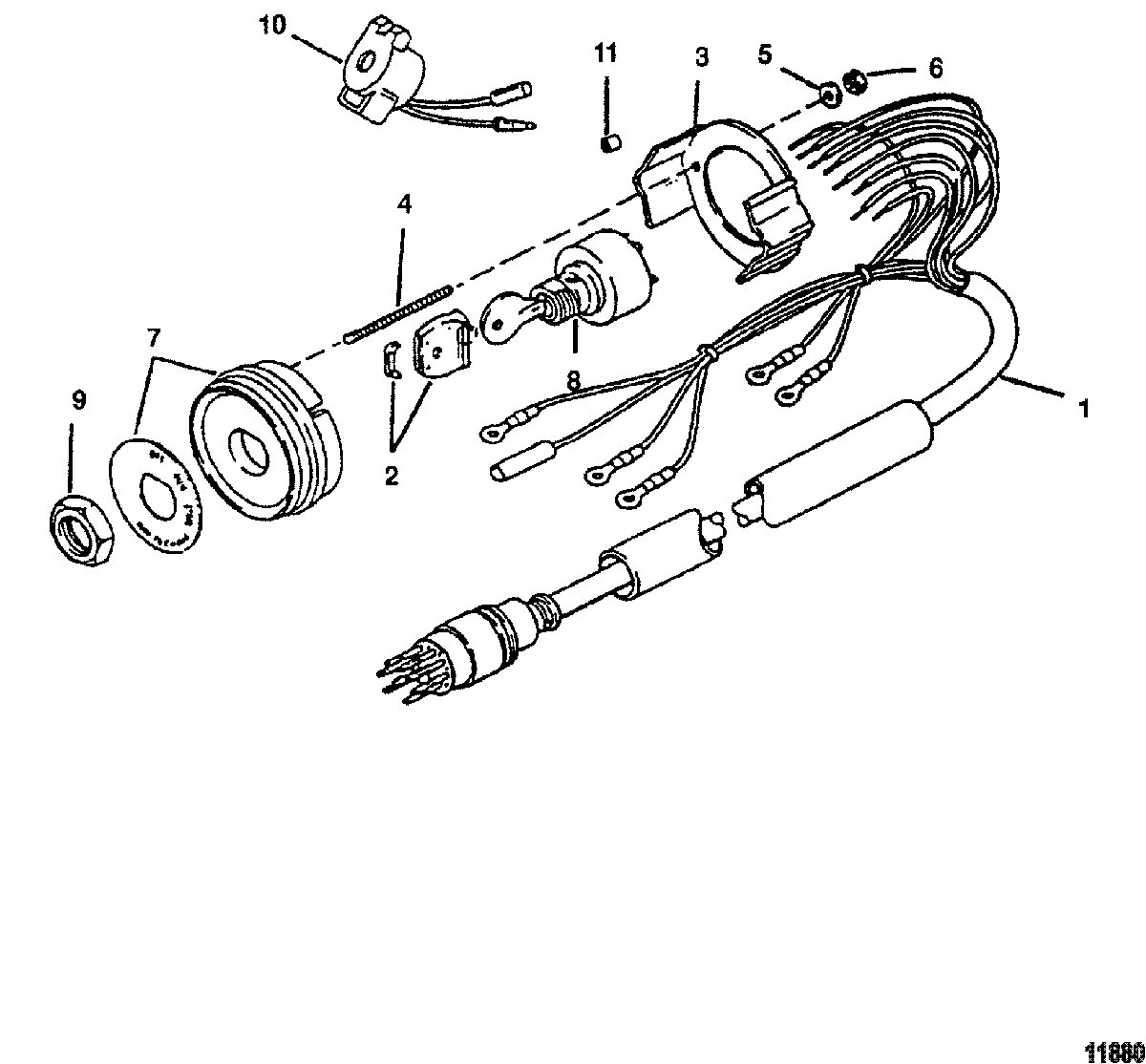

KEY SWITCH ASSEMBLY для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
184-816626A20 HARNESS ASSEMBLY, Key Switch (20.00 Feet)HARNESS ASSEMBLY, Key Switch (20.00 Feet)
-
290468A1 COVER ASSEMBLY, KeyCOVER ASSEMBLY, Key
-
376424 BRACKETBRACKET
-
416-55422 STUD, (#10-32 x 2.00)STUD, (#10-32 x 2.00)
-
512-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
7816479A3 PLATE KITPLATE KIT
-
887-88107A5 SWITCH KIT, Key (SEE CHART BELOW FOR KEY)SWITCH KIT, Key (SEE CHART BELOW FOR KEY)
-
911-879755 NUT, Special - Black NylonNUT, Special - Black Nylon
-
1084-8M3001068 ALARM ASSEMBLY, Audio WarningALARM ASSEMBLY, Audio Warning
-
1123-8127111 SPACER, (.375)SPACER, (.375)
-
1123-812711 SPACER, (.250)SPACER, (.250)
-
-894911 KEY, Ignition (1A)KEY, Ignition (1A)
-
-894912 KEY, Ignition (1B)KEY, Ignition (1B)
-
-894913 KEY, Ignition (1C)KEY, Ignition (1C)
-
-894914 KEY, Ignition (1D)KEY, Ignition (1D)
-
-894915 KEY, Ignition (1E)KEY, Ignition (1E)
-
-894916 KEY, Ignition (1F)KEY, Ignition (1F)
-
-894917 KEY, Ignition (2A)KEY, Ignition (2A)
-
-894918 KEY, Ignition (2B)KEY, Ignition (2B)
-
-894919 KEY, Ignition (2C)KEY, Ignition (2C)
-
-8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
-8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
-8949112 KEY, Ignition (2F)KEY, Ignition (2F)
