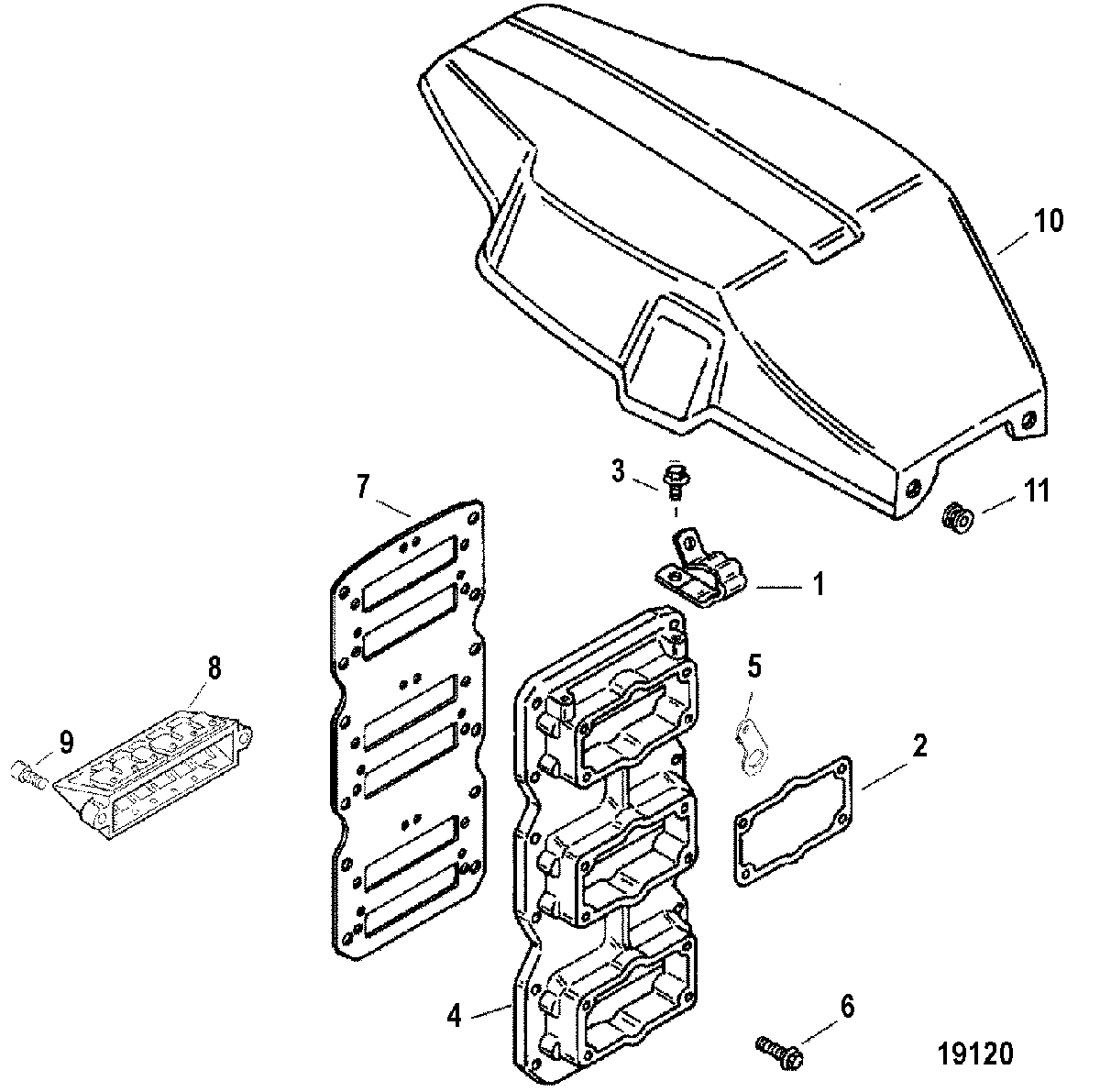

REED BLOCK/FLYWHEEL COVER для Mercury - 250XB (3.0L EFI) 0G980600 THRU 0T800999
-
№АртикулНазвание
-
154-49542 CLAMPCLAMP
-
227-825815 GASKETGASKET
-
310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4825178T4 ADAPTOR PLATEADAPTOR PLATE
-
5827507 RETAINERRETAINER
-
610-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
727-8141951 GASKETGASKET
-
88M0051202 REED BLOCKREED BLOCK
-
-34-849007A1 REED KIT (INCLUDES REEDS AND SCREWS)REED KIT (INCLUDES REEDS AND SCREWS)
-
910-4007420 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
10825832 FLYWHEEL COVERFLYWHEEL COVER
-
1125-821555001 GROMMETGROMMET
-
-27-832933A98 GASKET SETGASKET SET
-
-61-848700A7 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
