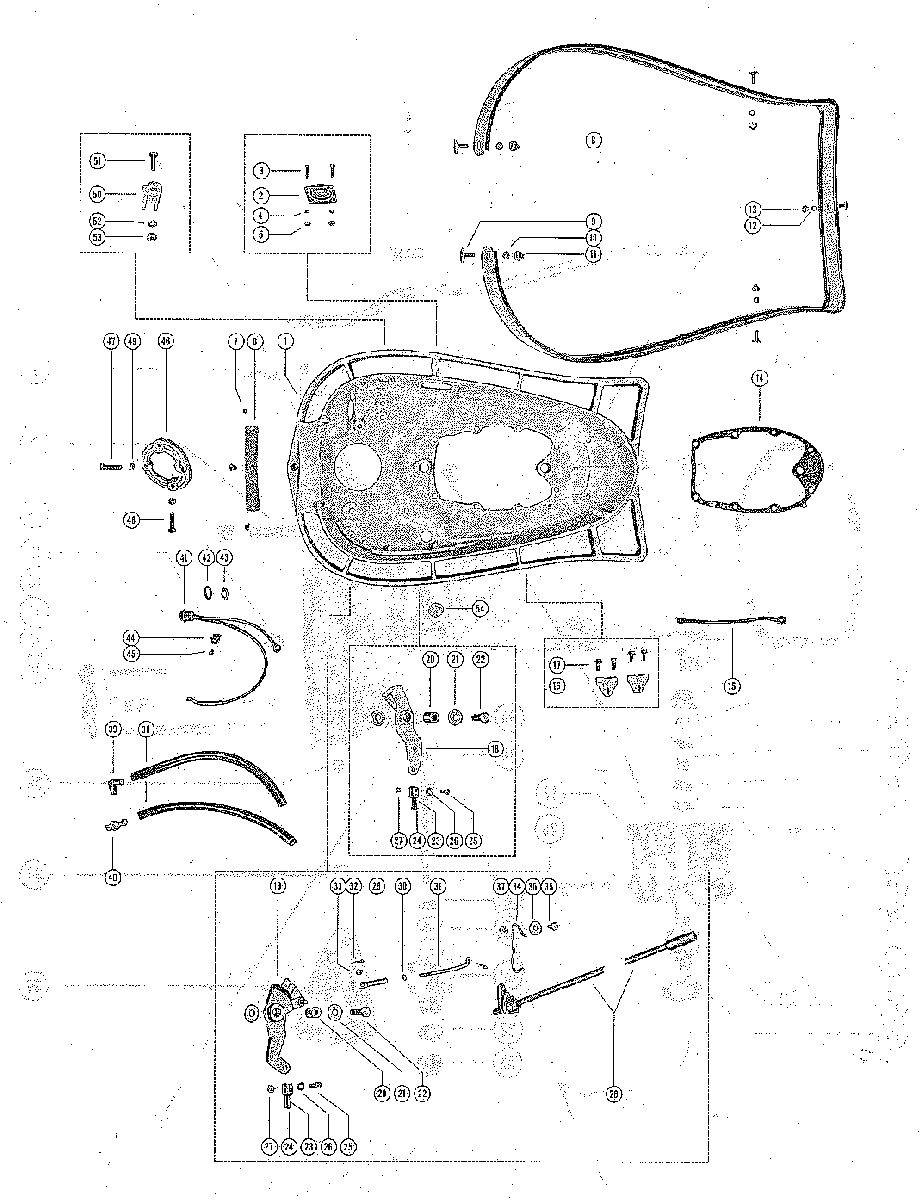

BOTTOM COWL ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
1103-2354A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
1103-2354A3 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
229206 COVER, PLUG-BOTTOM COWL HARNESS HOLECOVER, PLUG-BOTTOM COWL HARNESS HOLE
-
310-45893 SCREW, PLUG COVER TO BOTTOM COWLSCREW, PLUG COVER TO BOTTOM COWL
-
413-26995 LOCKWASHER, PLUG COVER FASTENING SCREWLOCKWASHER, PLUG COVER FASTENING SCREW
-
511-26419 NUT, PLUG COVER FASTENING SCREWNUT, PLUG COVER FASTENING SCREW
-
623760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
710-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
829229A1 TRIM MOULDING ASSEMBLY (CHROME)TRIM MOULDING ASSEMBLY (CHROME)
-
910-29226 SCREW, DECORATIVE-MOULDING TO BOTTOM COWLSCREW, DECORATIVE-MOULDING TO BOTTOM COWL
-
1012-24671 WASHER, FIBRE-MOULDING FASTENING SCREWWASHER, FIBRE-MOULDING FASTENING SCREW
-
1111-29225 NUT, NYLON CAP-MOULDING FASTENTING SCREWNUT, NYLON CAP-MOULDING FASTENTING SCREW
-
1213-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
1311-26419 NUT, BRASS-MOULDING FASTENING SCREWNUT, BRASS-MOULDING FASTENING SCREW
-
1427-20390 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
1530109 GROUND STRAP, CYLINDER BLOCK TO BOTTOM COWLGROUND STRAP, CYLINDER BLOCK TO BOTTOM COWL
-
1620557 BRACKET, CABLE END ANCHORBRACKET, CABLE END ANCHOR
-
1710-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWLSCREW, ANCHOR BRACKET TO BOTTOM COWL
-
1829532 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1930612 LEVER, SHIFT CONTROLLEVER, SHIFT CONTROL
-
2023-29529 BUSHING, THROTTLE AND SHIFT LEVERBUSHING, THROTTLE AND SHIFT LEVER
-
2112-8M0042641 WASHER, THROTTLLE AND SHIFT LEVER FASTENING SCREWWASHER, THROTTLLE AND SHIFT LEVER FASTENING SCREW
-
2210-37612 SCREW, THROTTLE AND SHIFT LEVER FASTENINGSCREW, THROTTLE AND SHIFT LEVER FASTENING
-
2317-30978A1 PIN ASSEMBLY, CLEVIS YOKEPIN ASSEMBLY, CLEVIS YOKE
-
2417-239281 ROLL PIN, CLEVIS YOKE PINROLL PIN, CLEVIS YOKE PIN
-
2510-20584 SCREW, CLEVIS YOKE PIN TO LEVERSCREW, CLEVIS YOKE PIN TO LEVER
-
2613-29402 WASHER, WAVE-CLEVIS PIN FASTENING SCREWWASHER, WAVE-CLEVIS PIN FASTENING SCREW
-
2711-826709106 NUT, CLEVIS PIN FASTENING SCREWNUT, CLEVIS PIN FASTENING SCREW
-
2825180 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
2927714 ROD (SLEEVE), SHIFT CONTROL ENDROD (SLEEVE), SHIFT CONTROL END
-
3011-25168 NUT, ADJUSTING-SHIFT SHAFT ENDNUT, ADJUSTING-SHIFT SHAFT END
-
3125134 ROD, LINK-SHIFT SHAFT ENDROD, LINK-SHIFT SHAFT END
-
3218-25191 COTTER PIN, LINK ROD TO SHIFT SHAFTCOTTER PIN, LINK ROD TO SHIFT SHAFT
-
3312-20583 WASHER, SHIFT CONTROL END RODWASHER, SHIFT CONTROL END ROD
-
3424-25065 SPRING, DETENT-SHIFT SHAFTSPRING, DETENT-SHIFT SHAFT
-
3510-98256 SCREW, DETENT SPRING TO BOTTOM COWLSCREW, DETENT SPRING TO BOTTOM COWL
-
3612-69057 WASHER, DETENT SPRING SCREWWASHER, DETENT SPRING SCREW
-
3711-20013 NUT, DETENT SPRING FASTENING SCREWNUT, DETENT SPRING FASTENING SCREW
-
3832-8M0108355 TUBE, VENT-MAGNETO OUTLET (10 1/2")TUBE, VENT-MAGNETO OUTLET (10 1/2")
-
3922-996642 ELBOW, MAGNETO VENT TUBEELBOW, MAGNETO VENT TUBE
-
4022-291112 NIPPLE, MAGNETO VENT TUBENIPPLE, MAGNETO VENT TUBE
-
4121104A2 CONNECTOR BASE ASSEMBLYCONNECTOR BASE ASSEMBLY
-
4213-21972 LOCKWASHER, CONNECTOR BASELOCKWASHER, CONNECTOR BASE
-
4311-21971 NUT, CONNECTOR BASE TO BOTTOM COWLNUT, CONNECTOR BASE TO BOTTOM COWL
-
4454-25231 CLIP, CONNECTOR BASE LEAD WIRECLIP, CONNECTOR BASE LEAD WIRE
-
4510-21106 SCREW, LEAD WIRE CLIP TO BOTTOM COWLSCREW, LEAD WIRE CLIP TO BOTTOM COWL
-
4630999 BRACKET, LOCK KNOB-COWL FRONT COVERBRACKET, LOCK KNOB-COWL FRONT COVER
-
4710-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
4710-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
4710-22956 SCREW, BRACKET TO BOTTOM COWL (7/8")SCREW, BRACKET TO BOTTOM COWL (7/8")
-
4810-56500 SCREW, BRACKET TO BOTTOM COWL (1 1/4")SCREW, BRACKET TO BOTTOM COWL (1 1/4")
-
4810-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
4911-20184 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
4911-24652 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
5026552 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
5026552 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
5110-20639 SCREW, HARNESS SUPPORT TO BOTTOM COWLSCREW, HARNESS SUPPORT TO BOTTOM COWL
-
5110-20639 SCREW, HARNESS SUPPORT TO BOTTOM COWLSCREW, HARNESS SUPPORT TO BOTTOM COWL
-
5212-20084 WASHER, HARNESS SUPPORT FASTENING SCREWWASHER, HARNESS SUPPORT FASTENING SCREW
-
5212-20084 WASHER, HARNESS SUPPORT FASTENING SCREWWASHER, HARNESS SUPPORT FASTENING SCREW
-
5311-29250 NUT, HARNESS SUPPORT FASTENING SCREWNUT, HARNESS SUPPORT FASTENING SCREW
-
5311-29250 NUT, HARNESS SUPPORT FASTENING SCREWNUT, HARNESS SUPPORT FASTENING SCREW
-
5419-31469 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
