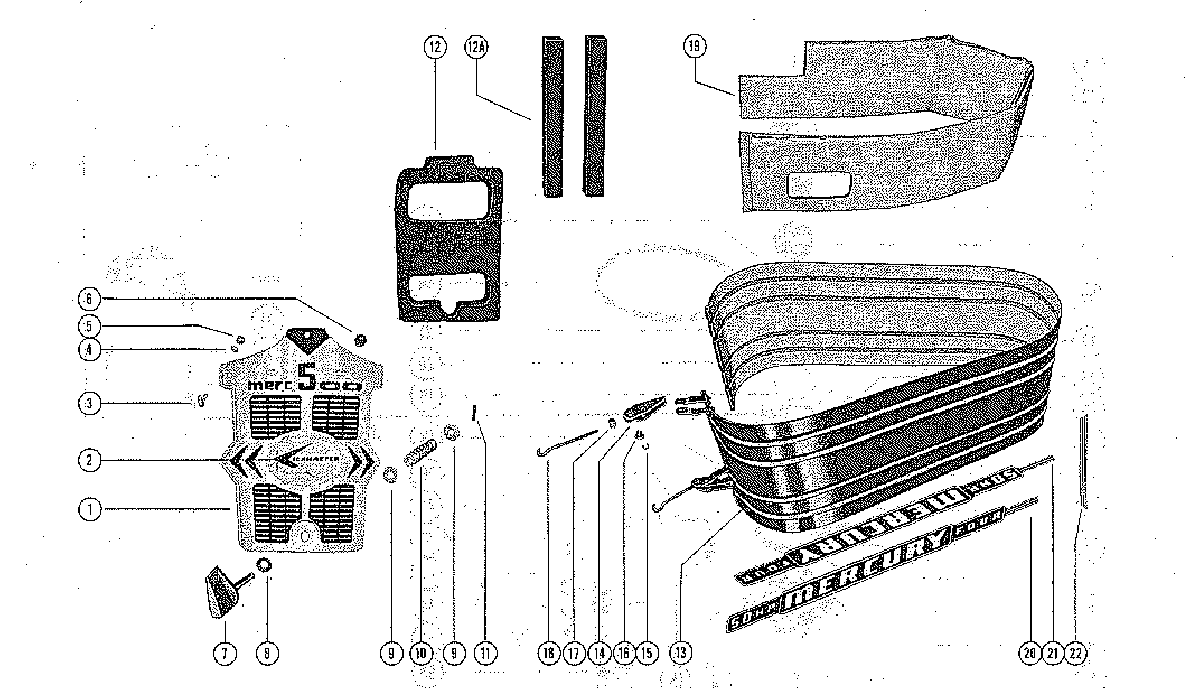

COWLING AND FRONT COVER для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
12104-2654A5 COWL FRONT COVER ASSEMBLY (NOT AS SHOWN)COWL FRONT COVER ASSEMBLY (NOT AS SHOWN)
-
12104-2654A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
12104-2654A5 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER - FRONT COVER BRACKETBUMPER, RUBBER - FRONT COVER BRACKET
-
756848 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-30771 WASHER, COVER FASTENING KNOB (RUBBER) - EARLY 50G MODELSWASHER, COVER FASTENING KNOB (RUBBER) - EARLY 50G MODELS
-
812-26702 WASHER, COVER FASTENING KNOB (NYLON) - LATE 500 MODELSWASHER, COVER FASTENING KNOB (NYLON) - LATE 500 MODELS
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-31353 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1229343 BLANKET, SOUND ABSORBING - FRONT COVER - EARLY 500 MODELSBLANKET, SOUND ABSORBING - FRONT COVER - EARLY 500 MODELS
-
12A31095 STRIP, RUBBER - COWL FRONT COVER - LATE 500 MODELSSTRIP, RUBBER - COWL FRONT COVER - LATE 500 MODELS
-
13195-1961A2 WRAP AROUND COWL ASSEMBLY (NOT AS SHOWN)WRAP AROUND COWL ASSEMBLY (NOT AS SHOWN)
-
132106-2353A2 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
132106-2353A2 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
132106-2353A2 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1421060 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1553-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1617-21057 PIN, HINGE - COWL LATCH HANDLEPIN, HINGE - COWL LATCH HANDLE
-
1725690 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1825691 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1924825 BLANKET, SOUND ABSORBING - WRAP AROUND COWLBLANKET, SOUND ABSORBING - WRAP AROUND COWL
-
2037-43198A84 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
2137-43198A84 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2037-43198A84 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
2137-43198A84 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2237-31883 DECAL, WRAP AROUND COWL - REARDECAL, WRAP AROUND COWL - REAR
-
2037-43198A84 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
2137-43198A84 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
-
--92-271091 ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENINGADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING
