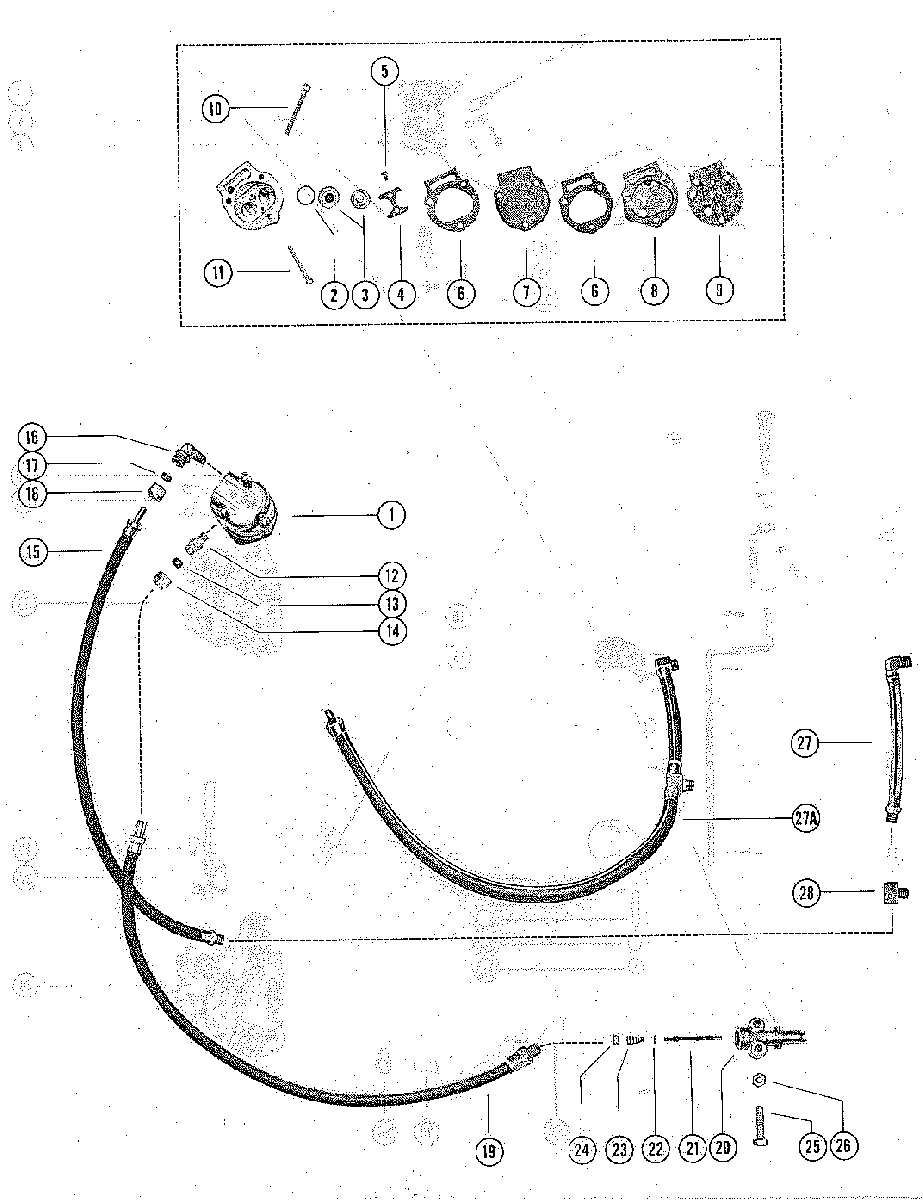

FUEL PUMP ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECKVALVE, CHECK
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
823008 COVER, FUEL PUMPCOVER, FUEL PUMP
-
927-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1010-29126 SCREW, FUEL PUMP MOUNTING (1 3/4")SCREW, FUEL PUMP MOUNTING (1 3/4")
-
1110-29029 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1222-22949 CONNECTOR, PUMP INLET TO FUEL LINECONNECTOR, PUMP INLET TO FUEL LINE
-
1322-22946 SLEEVE, RUBBER - CONNECTORSLEEVE, RUBBER - CONNECTOR
-
1422-22948 NUT, CONNECTOR TO FUEL LINENUT, CONNECTOR TO FUEL LINE
-
1532-30035 FUEL LINE, FUEL PUMP TO LOWER FILTERFUEL LINE, FUEL PUMP TO LOWER FILTER
-
1622-22995 ELBOW, FUEL PUMP INLETELBOW, FUEL PUMP INLET
-
1722-22946 SLEEVE, RUBBERSLEEVE, RUBBER
-
1822-22948 NUT, ELBOWNUT, ELBOW
-
1932-30036 FUEL LINE, FUEL PUMP TO ADAPTORFUEL LINE, FUEL PUMP TO ADAPTOR
-
2022833 ADAPTOR, CHECK UNIT ( FUEL LINE )ADAPTOR, CHECK UNIT ( FUEL LINE )
-
2030186 ADAPTOR, CHECK UNIT ( FUEL LINE )ADAPTOR, CHECK UNIT ( FUEL LINE )
-
2123069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2130185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2225-16524 O RING, ADAPTOR STEMO RING, ADAPTOR STEM
-
2324-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2324-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2430188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2510-20784 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
2611-24652 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
2732-38527 FUEL LINE, UPPER TO LOWER FILTERFUEL LINE, UPPER TO LOWER FILTER
-
27A32-32094 FUEL LINE, FUEL PUMP TO FILTER TO FILTERFUEL LINE, FUEL PUMP TO FILTER TO FILTER
-
2822-25956 TEE ASSEMBLY, LOWER FILTERTEE ASSEMBLY, LOWER FILTER
