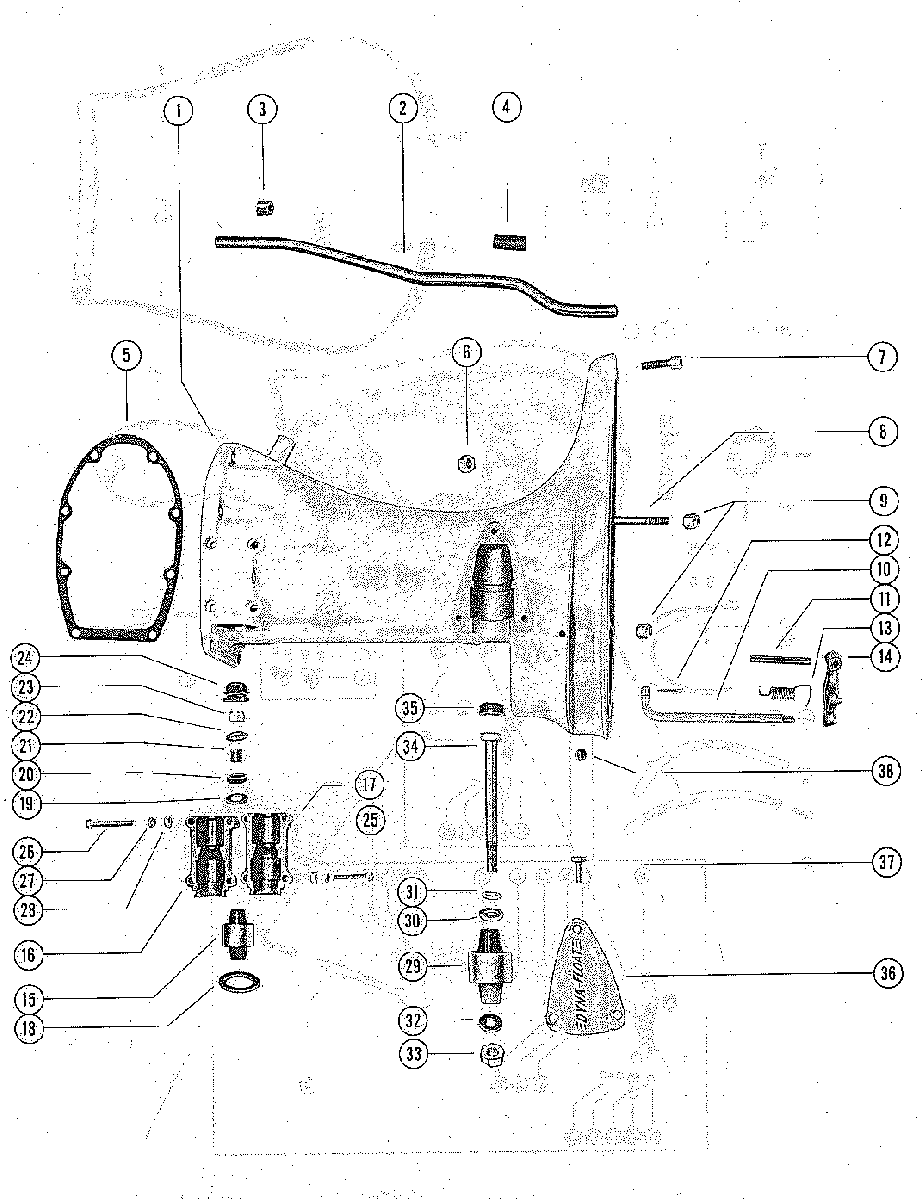

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
11522-1567 DRIVE SHAFT HOUSINGDRIVE SHAFT HOUSING
-
232-31117 TUBE, WATER INLETTUBE, WATER INLET
-
326-25192 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
423-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
527-24899 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
611-862902 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
710-25093 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSINGSCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
816-29103 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
911-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
1028470 ROD, PUSH-REVERSE LOCKROD, PUSH-REVERSE LOCK
-
1117-24887 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1218-25191 COTTER PIN, PUSH RODCOTTER PIN, PUSH ROD
-
1324-25122 SPRING, TENSION-PUSH RODSPRING, TENSION-PUSH ROD
-
1452920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
1524926A1 MOUNT, RUBBER-UPPERMOUNT, RUBBER-UPPER
-
1679680A1 COVER, UPPER MOUNT-OUTSIDE HALFCOVER, UPPER MOUNT-OUTSIDE HALF
-
1779680A1 COVER, UPPER MOUNT-INSIDE HALFCOVER, UPPER MOUNT-INSIDE HALF
-
1824929 PACKING, "U" CUPPACKING, "U" CUP
-
1912-24889 WASHER, UPPER MOUNT BOLT (17/32 ID)WASHER, UPPER MOUNT BOLT (17/32 ID)
-
2012-24891 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
2123-30474 SPACER, UPPER MOUNT BOLTSPACER, UPPER MOUNT BOLT
-
2212-11367 WASHER, UPPER MOUNT BOLT (25/64 ID)WASHER, UPPER MOUNT BOLT (25/64 ID)
-
2311-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2425305 CAP, RUBBER-UPPER MOUNT BOLT NUTCAP, RUBBER-UPPER MOUNT BOLT NUT
-
2510-28772 SCREW, UPPER MOUNT COVER (1 1/2")SCREW, UPPER MOUNT COVER (1 1/2")
-
2610-37941 SCREW, UPPER MOUNT COVER (1 3/4")SCREW, UPPER MOUNT COVER (1 3/4")
-
2712-29245 WASHER, MOUNTING COVER SCREWWASHER, MOUNTING COVER SCREW
-
2811-35888 NUT, MOUNTING COVER SCREWNUT, MOUNTING COVER SCREW
-
2975304T1 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
3012-28053 WASHER, RUBBER-LOWER MOUNTWASHER, RUBBER-LOWER MOUNT
-
3112-28051 WASHER, LOWER MOUNTWASHER, LOWER MOUNT
-
3212-30119 WASHER, MOUNTING SCREW (1/8")WASHER, MOUNTING SCREW (1/8")
-
3311-25096 NUT, MOUNTING SCREWNUT, MOUNTING SCREW
-
3410-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
3525067 BUMPER, RUBBER-MOUNTING SCREWBUMPER, RUBBER-MOUNTING SCREW
-
3628241 COVER, LOWER MOUNT (PORT SIDE)COVER, LOWER MOUNT (PORT SIDE)
-
3628242 COVER, LOWER MOUNT (STARBOARD SIDE)COVER, LOWER MOUNT (STARBOARD SIDE)
-
3710-29256 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
-
3822-390721 PLUG,GREASE-REVERSE LOCK HOLEPLUG,GREASE-REVERSE LOCK HOLE
