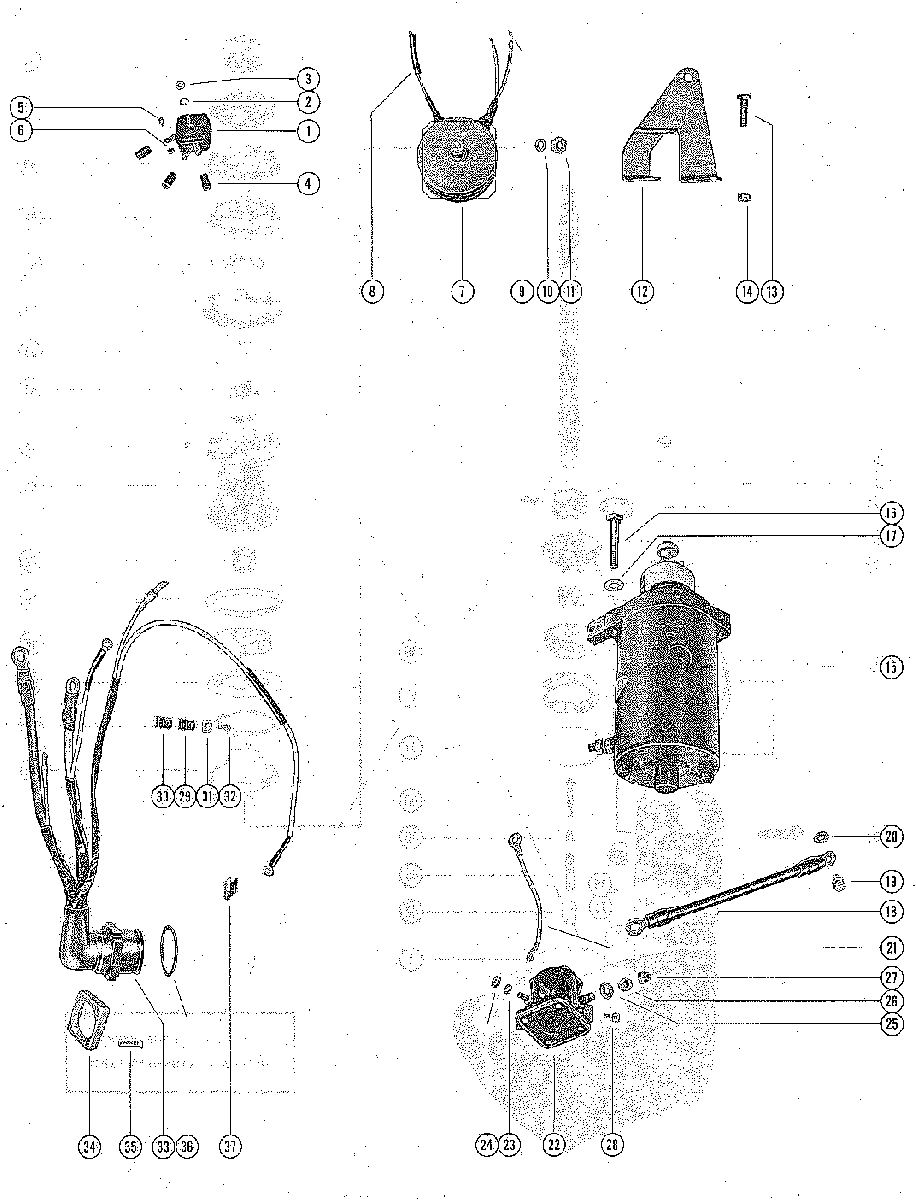

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
132177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
213-26993 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
311-21929 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
432-28373 SLEEVE, RECTIFIER LEADSSLEEVE, RECTIFIER LEADS
-
510-35400 SCREW, HARNESS AND STATOR LEADS TO RECTIFERSCREW, HARNESS AND STATOR LEADS TO RECTIFER
-
611-826709106 NUT, HARNESS AND STATOR LEAD FASTENING SCREWNUT, HARNESS AND STATOR LEAD FASTENING SCREW
-
732177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
832-61115 SLEEVE, RECTIFIER ( RED LEAD WIRE )SLEEVE, RECTIFIER ( RED LEAD WIRE )
-
922647 DISCONNECT, KNIFE - RECTIFIER LEAD WIREDISCONNECT, KNIFE - RECTIFIER LEAD WIRE
-
1013-26993 BLOCKWASHER, RECTIFIER MOUNTING SCREWBLOCKWASHER, RECTIFIER MOUNTING SCREW
-
1111-21929 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
1228597 BRACKET, RECTIFIER MOUNTINGBRACKET, RECTIFIER MOUNTING
-
1310-21091 SCREW, RECTIFIER BRACKET TO BOTTOM COWLSCREW, RECTIFIER BRACKET TO BOTTOM COWL
-
1411-24652 NUT, BRACKET MOUNTING SCREWNUT, BRACKET MOUNTING SCREW
-
1550-32411 STARTER MOTOR (DELCO-REMY) SEE NOT BELOWSTARTER MOTOR (DELCO-REMY) SEE NOT BELOW
-
1550-55601A2 STARTER MOTOR (DELCO-REMY) SEE NOT BELOWSTARTER MOTOR (DELCO-REMY) SEE NOT BELOW
-
1610-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGESCREW, STARTER MOTOR TO CRANKCASE FLANGE
-
1713-26993 LOCKWASHER, STARTER MOTOR MOUNTING SCREWLOCKWASHER, STARTER MOTOR MOUNTING SCREW
-
1884-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOIDWIRE, STARTER MOTOR TO STARTER SOLENOID
-
1910-69035 SCREW, GROUND WIRE TO STARTER MOTORSCREW, GROUND WIRE TO STARTER MOTOR
-
2013-26992 LOCKWASHER, GROUND WIRE FASRENING SCREWLOCKWASHER, GROUND WIRE FASRENING SCREW
-
2128016A1 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
2232445A1 STARTER SOLENOIDSTARTER SOLENOID
-
2232445A1 STARTER SOLENOIDSTARTER SOLENOID
-
2313-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
2411-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2513-26993 LOCKWASHER, SOLENOID (5/16)LOCKWASHER, SOLENOID (5/16)
-
2611-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16)NUT, SOLENOID TERMINAL - INSIDE (5/16)
-
2711-26062 NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16)NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16)
-
2810-29238 SCREW, STARTER SOLENOID TO STARTER MOTORSCREW, STARTER SOLENOID TO STARTER MOTOR
-
2954-24836 CLAMP, HARNESS LEAD WIRE (1/4)CLAMP, HARNESS LEAD WIRE (1/4)
-
3054-22740 CLAMP, HARNESS LEAD WIRE (3/8)CLAMP, HARNESS LEAD WIRE (3/8)
-
3054-25231 CLAMP, HARNESS LEAD LEAD WIRE (1/8)CLAMP, HARNESS LEAD LEAD WIRE (1/8)
-
318M0084613 "D" WASHER, CLAMP FASTENING SCREW"D" WASHER, CLAMP FASTENING SCREW
-
3210-8M0113176 SCREW, HARNESS LEAD WIRE FASTENINGSCREW, HARNESS LEAD WIRE FASTENING
-
3333401 WIRING HARNESS ( INTERNAL )WIRING HARNESS ( INTERNAL )
-
3333401 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3426079A2 PLATE, BACKING - WIRING HARNESSPLATE, BACKING - WIRING HARNESS
-
3510-45893 SCREW. BACKING PLATE TO BOTTOM COWLSCREW. BACKING PLATE TO BOTTOM COWL
-
3624-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3754-22783 "S" CLIP, WIRING HARNING LEAD TO BOTTOM COWL"S" CLIP, WIRING HARNING LEAD TO BOTTOM COWL
