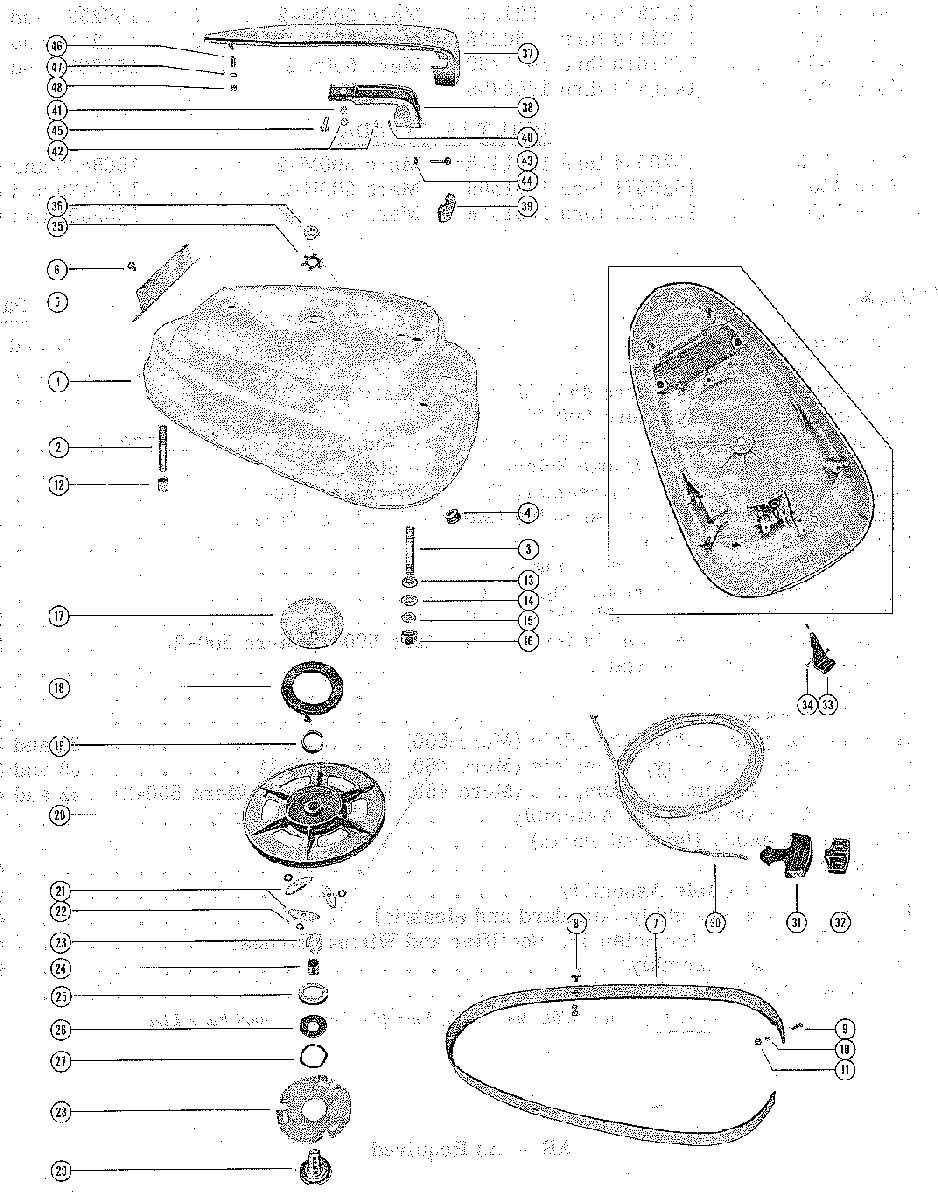

TOP COWL AND STARTER ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
1177-2355A3 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
1177-2355A4 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
216-20500 STUD, REAR - TOP COWL TO COVERSTUD, REAR - TOP COWL TO COVER
-
316-20353 STUD, FRONT - TOP COWL TO CRANKCASESTUD, FRONT - TOP COWL TO CRANKCASE
-
425-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
528967 SCREEN, VENT - TOP COWLSCREEN, VENT - TOP COWL
-
610-26668 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
729228A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
810-29226 SCREW, DECORATIVE - MOULDING TO TOP COWLSCREW, DECORATIVE - MOULDING TO TOP COWL
-
910-29227 SCREW, BRASS - MOULDING TO TOP COWLSCREW, BRASS - MOULDING TO TOP COWL
-
1013-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
1111-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
-
--37-46023A1 DECAL SET, TOP COWLDECAL SET, TOP COWL
-
1223-20326 SPACER, TOP COWL STUDSPACER, TOP COWL STUD
-
1312-20028 WASHER, TOP COWL STUD (1/16")WASHER, TOP COWL STUD (1/16")
-
1412-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
1412-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
1512-20583 WASHER, TOP COWL STUD (1/32")WASHER, TOP COWL STUD (1/32")
-
1611-8267089 NUT, TOP COWL FASTENINGNUT, TOP COWL FASTENING
-
1720155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1824-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1923-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2050-28908 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
2120162 PAWL, STARTERPAWL, STARTER
-
2213-29402 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2050-30994 SHEAVE ASSEMBLY
SEE NOTE BELOWSHEAVE ASSEMBLY
SEE NOTE BELOW -
2130596 PAWL, STARTER
SEE NOTE BELOWPAWL, STARTER
SEE NOTE BELOW -
2213-36206 WASHER, WAVE - STARTER PAWL
SEE NOTE BELOWWASHER, WAVE - STARTER PAWL
SEE NOTE BELOW -
2323-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
2445477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2526179 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
2612-26180 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
2713-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
2820164 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
2830595 PLATE, RETAINER - STARTER PAWL
SEE NOTE BELOWPLATE, RETAINER - STARTER PAWL
SEE NOTE BELOW -
2945477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
3050-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3128747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
3279470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
3330045 PLATE, ROPE GUIDEPLATE, ROPE GUIDE
-
3410-28642 SCREW, DRIVE, ROPE GUIDE PLATE TO TOP COWLSCREW, DRIVE, ROPE GUIDE PLATE TO TOP COWL
-
3514-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3611-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3731875 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
3731875 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
3831003 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
3931119 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
4012-69057 WASHER, LOWER HANDLE STUD (3/4" OD)WASHER, LOWER HANDLE STUD (3/4" OD)
-
4112-29245 WASHER, CENTER HANDLE STUD (1/2" OD)WASHER, CENTER HANDLE STUD (1/2" OD)
-
4211-21825 NUT, INSIDE HANDLE TO CHROME HANDLE STUDSNUT, INSIDE HANDLE TO CHROME HANDLE STUDS
-
4310-56500 SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")SCREW, FRONT - HANDLE TO TOP COWL (1 1/4")
-
4411-8267089 NUT, FRONT HANDLE FASTENING SCREWNUT, FRONT HANDLE FASTENING SCREW
-
4510-29199 SCREW, CENTER - HANDLE TO TOP COWL (1")SCREW, CENTER - HANDLE TO TOP COWL (1")
-
4623-29561 SPACER, REAR HANDLE STUDSPACER, REAR HANDLE STUD
-
4713-26992 LOCKWASHER, REAR HANDLE STUDLOCKWASHER, REAR HANDLE STUD
-
4811-21825 NUT, REAR HANDLE STUDNUT, REAR HANDLE STUD
