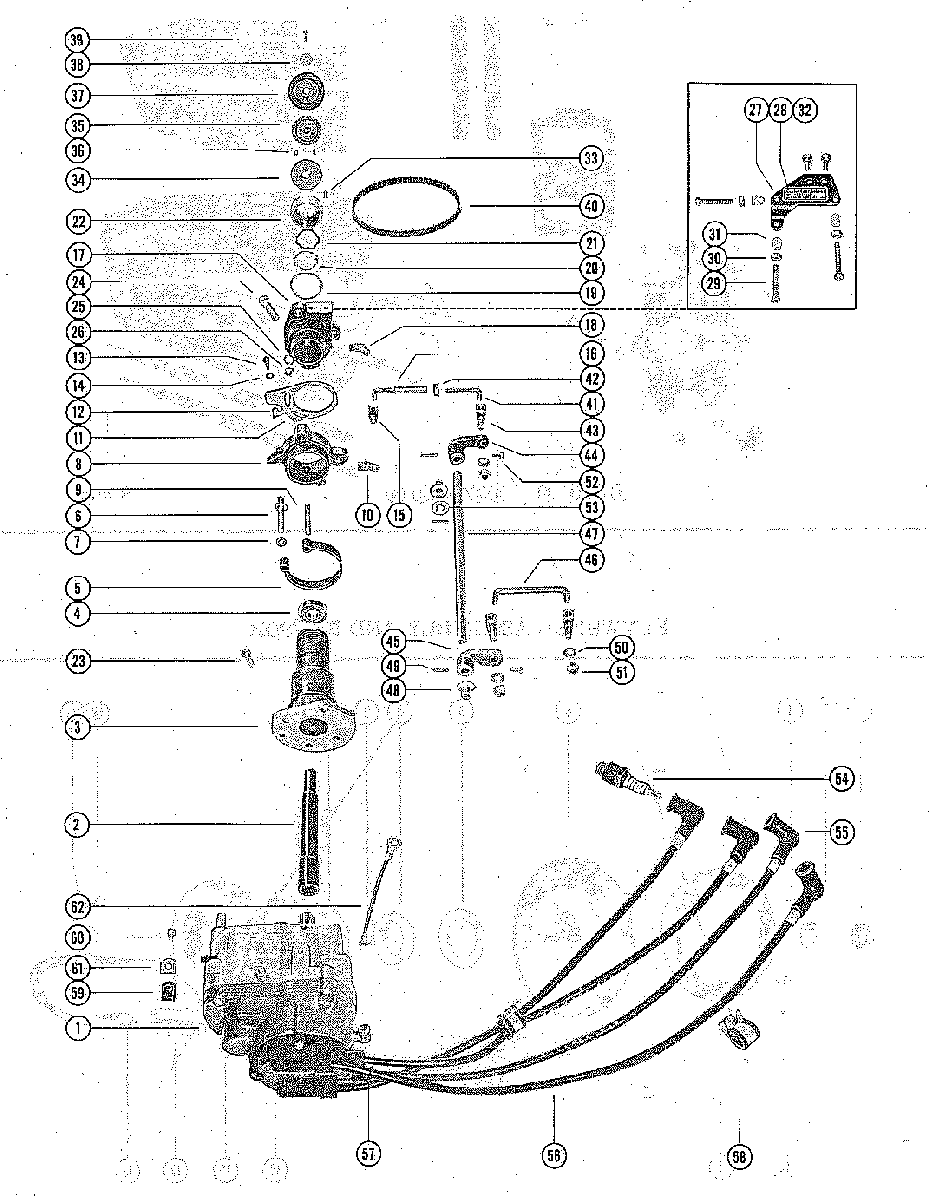

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
1394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-3)MAGNETO ASSEMBLY, COMPLETE (4D-3)
-
245-27951 SHAFT, MAGNETO DRIVESHAFT, MAGNETO DRIVE
-
-29321A7 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETEMAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
-
339560A1 MAGNETO PILOT ASSEMBLYMAGNETO PILOT ASSEMBLY
-
430-20066 BEARING, BALL-MAGNETO PILOTBEARING, BALL-MAGNETO PILOT
-
524-27944 SPRING, HORSESHOE-MAGNETO PILOTSPRING, HORSESHOE-MAGNETO PILOT
-
617-27962 PIN, ANCHOR- HORSESHOE SPRING TO PILOTPIN, ANCHOR- HORSESHOE SPRING TO PILOT
-
712-29245 WASHER, HORSESHOE SPRING TO ANCHOR PINWASHER, HORSESHOE SPRING TO ANCHOR PIN
-
827946A1 ECONOMISER COLLAR AND PIN ASSEMBLYECONOMISER COLLAR AND PIN ASSEMBLY
-
917-27961 PIN, ECONOMISER COLLAR-SPRING RETAINERPIN, ECONOMISER COLLAR-SPRING RETAINER
-
1022-25094 FITTING, GREASE-ECONOMISER COLLARFITTING, GREASE-ECONOMISER COLLAR
-
1138230A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1223-26602 BUSHING, NYLON-THROTTLE ACTUATORBUSHING, NYLON-THROTTLE ACTUATOR
-
1310-20665 SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLARSCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
-
1412-847883 WASHER, THROTTLE ACTUATOR SCREWWASHER, THROTTLE ACTUATOR SCREW
-
1310-31009 SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLARSCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
-
1527947 SWIVEL, LINKAGE-ECONMISER COLLARSWIVEL, LINKAGE-ECONMISER COLLAR
-
1625996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
1766856A1 ADAPTOR, MAGNETOADAPTOR, MAGNETO
-
1822-25094 FITTING, GREASE-MAGNETO ADAPTORFITTING, GREASE-MAGNETO ADAPTOR
-
1912-27939 WASHER, MAGNETO PILOTWASHER, MAGNETO PILOT
-
2014-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
2113-27959 WASHER, WAVE-MAGNETO BALL BEARING TENSIONWASHER, WAVE-MAGNETO BALL BEARING TENSION
-
2227955 CAP, MAGNETO ADAPTOR AND PILOT FASTENINGCAP, MAGNETO ADAPTOR AND PILOT FASTENING
-
2310-30110 SCREW, ADAPTOR AND PILOT TO MAGNETOSCREW, ADAPTOR AND PILOT TO MAGNETO
-
2410-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASESCREW, ADAPTOR AND PILOT TO CRANKCASE
-
2512-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREWWASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2611-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREWNUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2753458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
2837-29315 DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
-
2910-24933 SCREW, THROTTLE STOP ADJUSTINGSCREW, THROTTLE STOP ADJUSTING
-
3011-20088 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
3126852 CAP, NYLON-ADJUSTING SCREWCAP, NYLON-ADJUSTING SCREW
-
3210-69035 SCREW, THROTTLE STOP PLATE TO ADAPTORSCREW, THROTTLE STOP PLATE TO ADAPTOR
-
3328-28657 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
3429784 HUB, DRIVEN PULLEYHUB, DRIVEN PULLEY
-
3529783A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3617-24873 ROLL PIN. FLANGE LOCATINGROLL PIN. FLANGE LOCATING
-
3729785 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
3812-20138 WASHER, PULLEY CLAMPING SCREWWASHER, PULLEY CLAMPING SCREW
-
3910-32228 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
4020140 BELT, TIMINGBELT, TIMING
-
4127949 ROD, LINK-UPPERROD, LINK-UPPER
-
4211-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
4327948 SWIVEL, UPPER AND LOWER LINKS RODSSWIVEL, UPPER AND LOWER LINKS RODS
-
4428061 LEVER, LINKAGE-UPPERLEVER, LINKAGE-UPPER
-
4527941 LEVER, LINKAGE-LOWERLEVER, LINKAGE-LOWER
-
4627950 ROD, LINK-LOWERROD, LINK-LOWER
-
4727940 SHAFT, VERTICALSHAFT, VERTICAL
-
4823-22981 BUSHING, NYLON-VERTICAL SHAFTBUSHING, NYLON-VERTICAL SHAFT
-
4917-25870 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERSROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
-
5012-29245 WASHER, UPPER AND LOWER SWIVELWASHER, UPPER AND LOWER SWIVEL
-
5111-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKETNUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
-
5210-25781 SCREW, SET-LINKAGE LEVERSCREW, SET-LINKAGE LEVER
-
5312-25866 WASHER, VERTICAL SHAFT-CENTERWASHER, VERTICAL SHAFT-CENTER
-
5433-813469 SPARK PLUGSPARK PLUG
-
5585-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
5684-821945A46 CABLE, HIGH TENSION LEAD-SPARK PLUGCABLE, HIGH TENSION LEAD-SPARK PLUG
-
5725-25429 "O" RING, HIGH TENSION HEAD CABLE TO END CAP COVER"O" RING, HIGH TENSION HEAD CABLE TO END CAP COVER
-
5854-29425 CLIP, HIGH TENSION LEAD CABLE FASTENINGCLIP, HIGH TENSION LEAD CABLE FASTENING
-
5954-25231 CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETOCLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO
-
6010-20401 SCREW, LEAD CLIP TO MAGNETOSCREW, LEAD CLIP TO MAGNETO
-
618M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
62394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASEGROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
