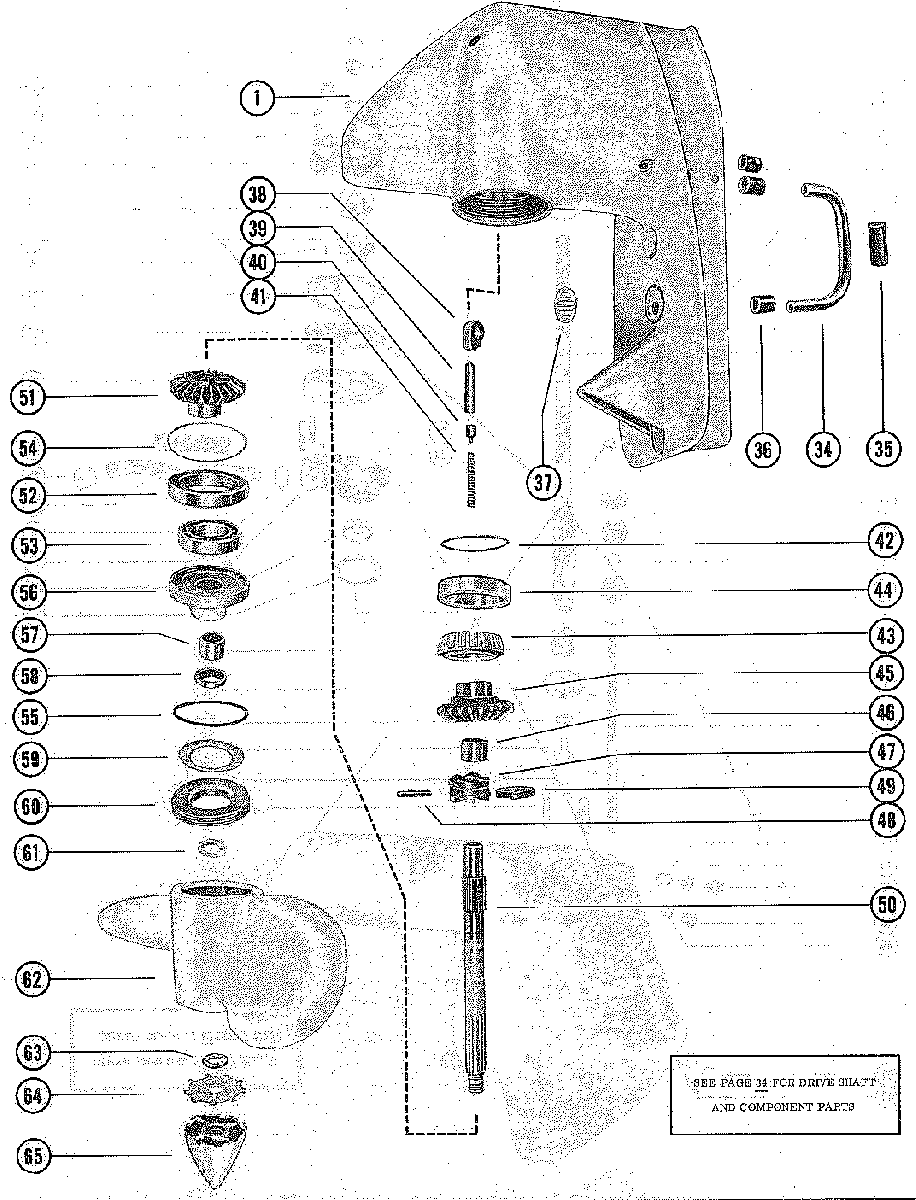

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M & E) (PAGE 2) для Mercury - 450 (4 CYL.) 1476510 THRU 1531568
-
№АртикулНазвание
-
-1603-1868A2 GEAR HOUSING ASSEMBLY, COMPLETE
SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE
SEE NOTE BELOW -
11603-1868A1 GEAR HOUSING ASSEMBLY
SEE PAGE 34 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY
SEE PAGE 34 FOR PARTS BREAKDOWN -
3432-23652 TUBE, WATER INLET - LOWERTUBE, WATER INLET - LOWER
-
3523-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
3626-20232 SEAL, WATER TUBESEAL, WATER TUBE
-
3735-23654 SCREEN, WATER INTAKE - GEAR HOUSINGSCREEN, WATER INTAKE - GEAR HOUSING
-
--27-31367 GASKET, WATER INTAKE SCREEN TO GEAR HOUSING
SERIAL 01448240-01460498GASKET, WATER INTAKE SCREEN TO GEAR HOUSING
SERIAL 01448240-01460498 -
38760394 CAM, SHIFTCAM, SHIFT
-
3920930 FOLLOWER, CAMFOLLOWER, CAM
-
4020843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
4124-20254 SPRING, CAM FOLLOWER PINSPRING, CAM FOLLOWER PIN
-
4215-31154A1 SHIM, TAPERED BEARING CUP TO HOUSINGSHIM, TAPERED BEARING CUP TO HOUSING
-
--43-20975A5 FORWARD GEAR ASSEMBLY, COMPLETEFORWARD GEAR ASSEMBLY, COMPLETE
-
4331-31215A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
4431-31216 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
4543-20975A5 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
4631-20249 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
4752-32189 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
4817-20841 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
4953-20842 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5044-25254 SHAFT, PROPELLERSHAFT, PROPELLER
-
--43-20975A5 REVERSE GEAR ASSEMBLY, COMPLETEREVERSE GEAR ASSEMBLY, COMPLETE
-
5143-20975A5 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5220864 RING, ADAPTOR - BALL BEARINGRING, ADAPTOR - BALL BEARING
-
5330-20839T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
5415-20927A1 SHIM, ADAPTOR RING TO GEAR HOUSINGSHIM, ADAPTOR RING TO GEAR HOUSING
-
5525-20863 "O"RING, BEARING CARRIER"O"RING, BEARING CARRIER
-
5620862A1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5731-20249 BEARING, ROLLERBEARING, ROLLER
-
5826-90562 OIL SEALOIL SEAL
-
5912-22970 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6020865 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6112-25251 WASHER, BACKING (1/8)WASHER, BACKING (1/8)
-
6248-22914A2 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
-
6312-25252 WASHER, BACKING (1/32)WASHER, BACKING (1/32)
-
6414-25250 TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
6511-29825 NUT, PROPELLER (ALUMINUM)NUT, PROPELLER (ALUMINUM)
-
6511-29825 NUT, PROPELLER (NYLON)NUT, PROPELLER (NYLON)
