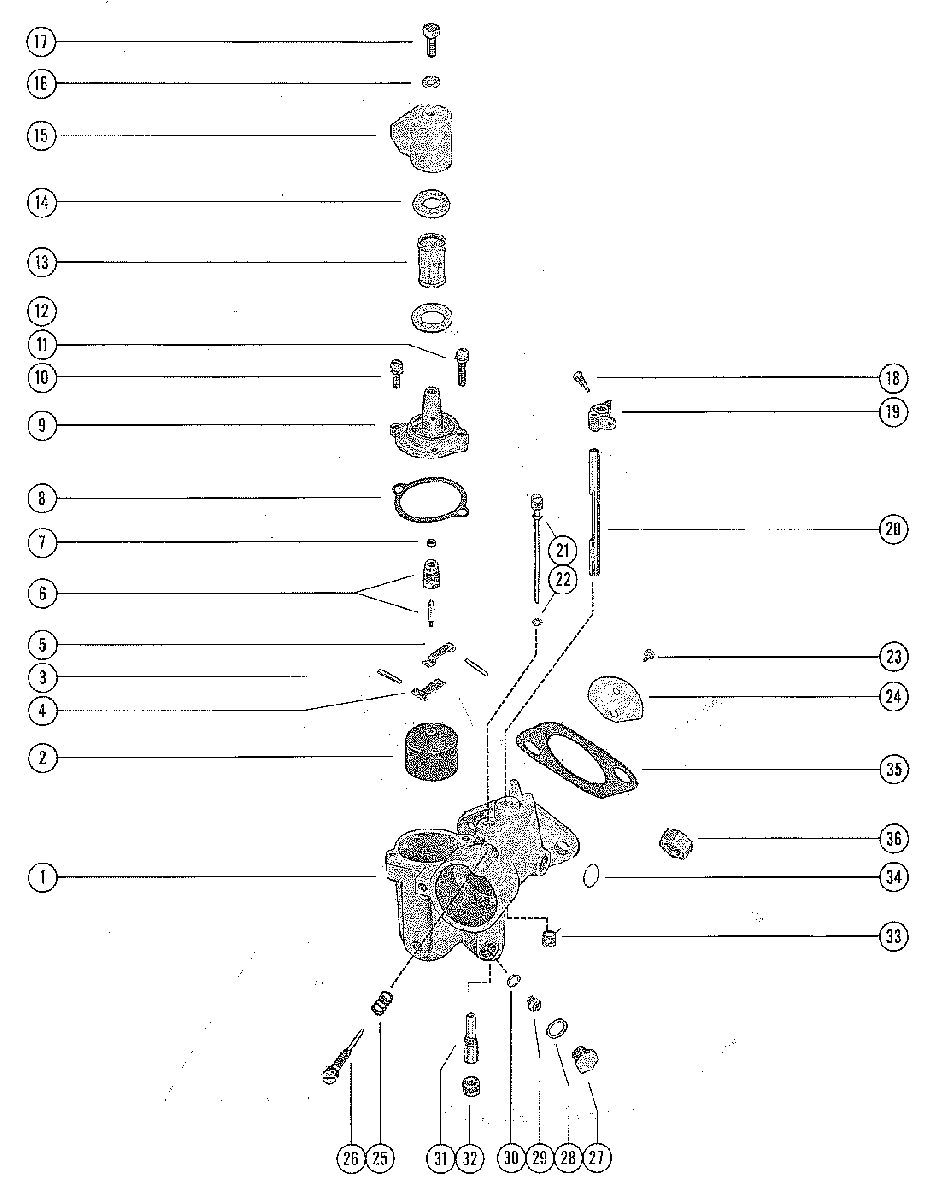

CARBURETOR ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
11335-2088 CARBURETOR ASSEMBLY, COMPLETE (KC-2A)CARBURETOR ASSEMBLY, COMPLETE (KC-2A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEALGASKET, INLET SEAL
-
81399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1227-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
131399-3938 SCREEN, FILTERSCREEN, FILTER
-
1427-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
151399-4791A1 COVER, STRAINERCOVER, STRAINER
-
1627-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1710-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
198146791 LEVER, THROTTLE STOP
USE ON LOWER CARBURETOR ONLY -- REPLACED WITH 33148 CLUSTER ON UPPER CARBURETORLEVER, THROTTLE STOP
USE ON LOWER CARBURETOR ONLY -- REPLACED WITH 33148 CLUSTER ON UPPER CARBURETOR -
201399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
211399-2178 TUBE, IDLETUBE, IDLE
-
2227-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2310-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
241399-2180 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2524-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
261399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2710-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2827-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
291399-2013 JET, MAIN FUEL (.073)JET, MAIN FUEL (.073)
-
291399-2011 JET, MAIN FUEL (.071) - STANDARDJET, MAIN FUEL (.071) - STANDARD
-
291399-1962 JET, MAIN FUEL (.069)JET, MAIN FUEL (.069)
-
291399-1467 JET, MAIN FUEL (.067)JET, MAIN FUEL (.067)
-
3027-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
311399-2179 NOZZLE, MAINNOZZLE, MAIN
-
3210-28846 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3324-26890 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
3324-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3419-32299 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3527-31402 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3611-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
