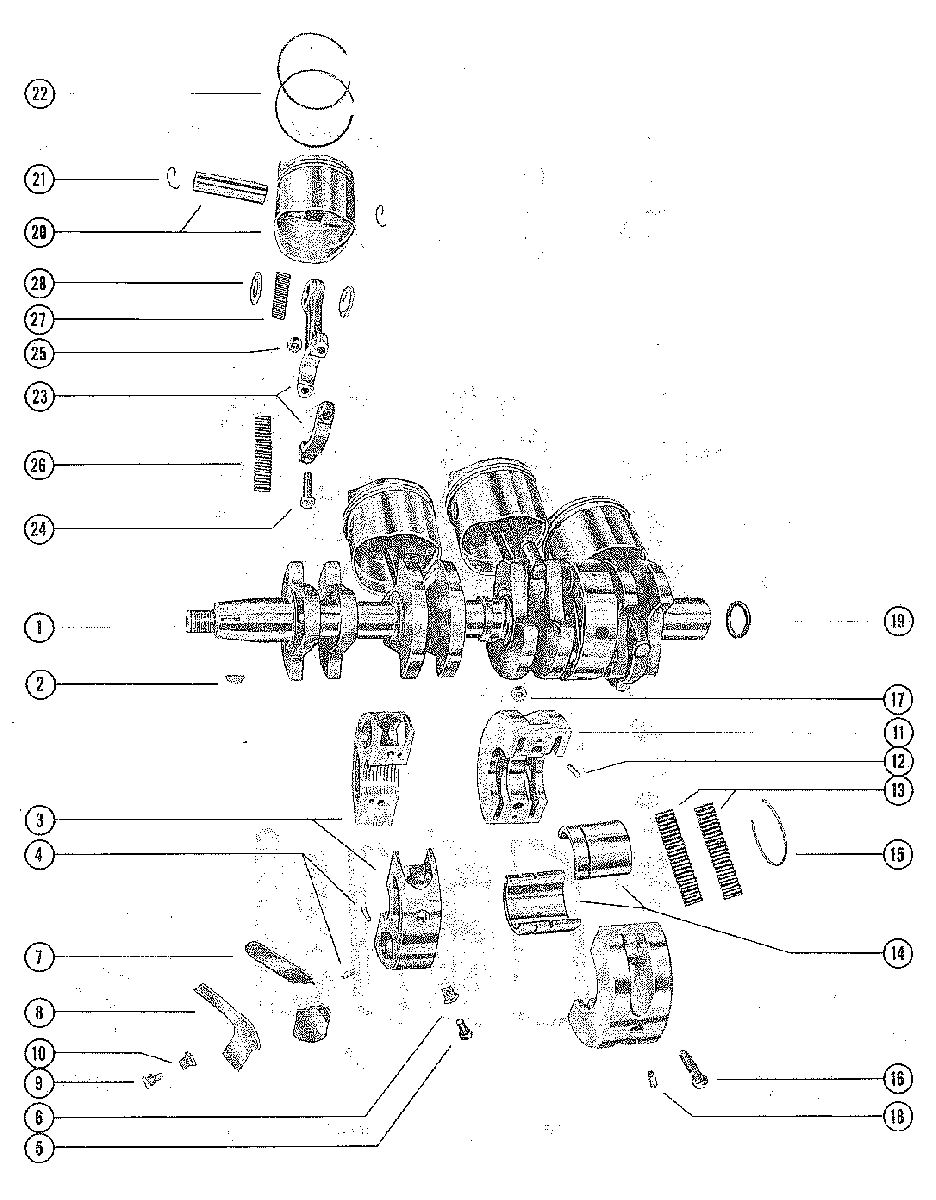

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
1418-3249A3 CRANKSHAFTCRANKSHAFT
-
228-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
3533-2761A3 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
417-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
510-25313 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
611-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
734-32203A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
834-64632 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
910-77280 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1011-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
11531-1884A3 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
1217-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
1329-714221 BEARING, NEEDLEBEARING, NEEDLE
-
1426113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1553-26933 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1610-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1711-20184 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1817-31245 DOWEL PIN (STEPPED)DOWEL PIN (STEPPED)
-
1925-30613 "O" RING, DRIVE SHAFT SPLINE"O" RING, DRIVE SHAFT SPLINE
-
20732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2140-32118 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2239-32921 RING, PISTONRING, PISTON
-
23611-1885A4 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2410-45379 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
2511-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2629-47897 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2729-39656 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2812-29681 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--732-2739A2 PISTON AND PISTON PIN ASSEMBLY (.015)
OVERSIZE PISTON AND RINGPISTON AND PISTON PIN ASSEMBLY (.015)
OVERSIZE PISTON AND RING -
--39-33945 RING, PISTON (.015)
OVERSIZE PISTON AND RINGRING, PISTON (.015)
OVERSIZE PISTON AND RING
