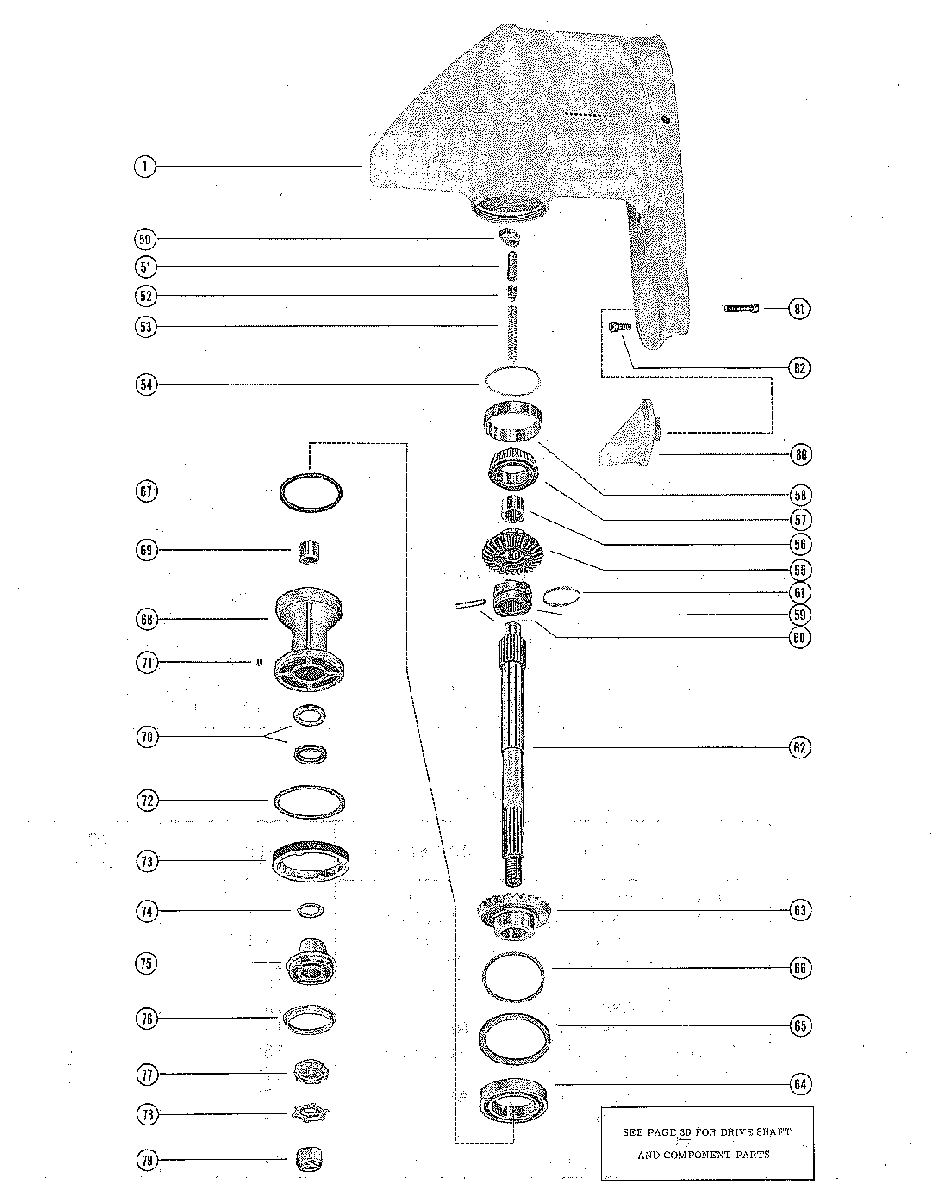

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31 -
11623-2022A1 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)
-
50760394 CAM, SHIFTCAM, SHIFT
-
5130625 FOLLOWER, CAMFOLLOWER, CAM
-
5230624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5324-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5415-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
-
5543-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5631-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5731-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5831-31092 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
5952-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-47900A2 SHAFT, PROPELLERSHAFT, PROPELLER
-
--43-31887 REVERSE GEAR ASSEMBLY, COMPLETEREVERSE GEAR ASSEMBLY, COMPLETE
-
6343-31887 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6430-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6512-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6615-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6725-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6831284T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6931-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7026-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7128-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7212-29957 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7412-31013 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
7530581A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
7612-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
7712-31211Q03 WASHER, SPLINED - PROPELLER SHAFTWASHER, SPLINED - PROPELLER SHAFT
-
7814-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7911-29594 NUT, PROPELLERNUT, PROPELLER
-
8097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
8110-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
8210-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
