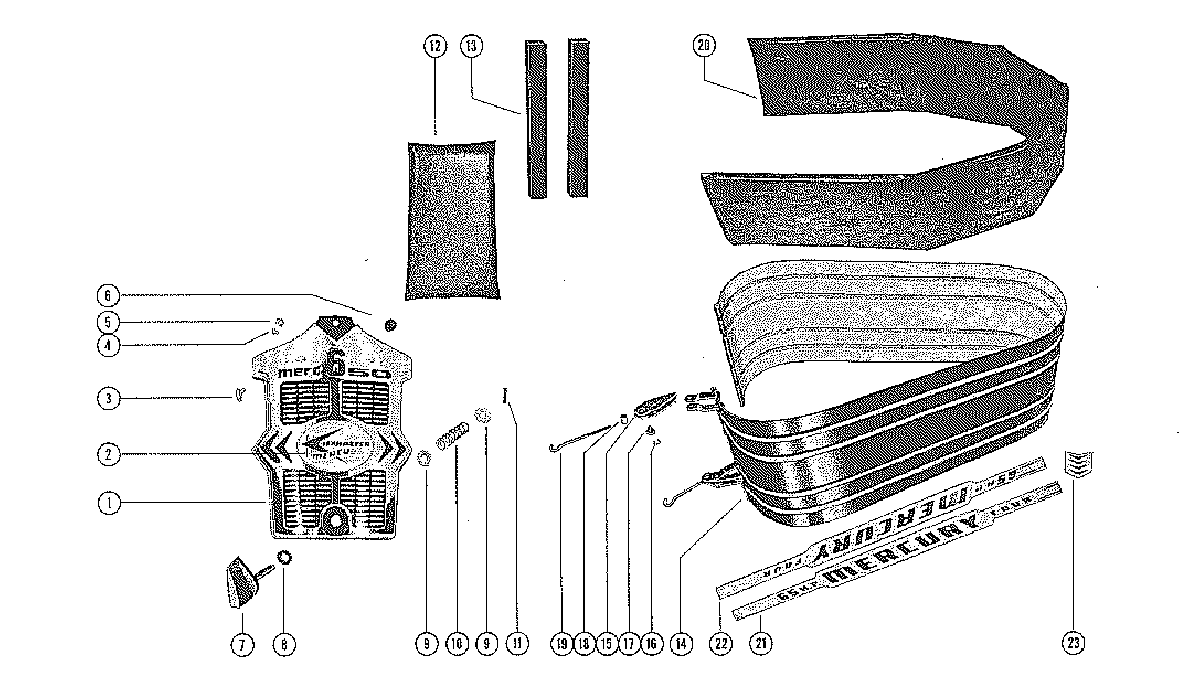

COWLING AND FRONT COVER (650E) для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
12182-7927A8 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT, BRACKET FASTENING SCREWNUT, BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER-FRONT COVER BRACKETBUMPER, RUBBER-FRONT COVER BRACKET
-
756848 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-30772 SPRING, TENSION-FASTENING KNOBSPRING, TENSION-FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1233551 BLANKET, SOUND ABSORBING-FRONT COVERBLANKET, SOUND ABSORBING-FRONT COVER
-
1331095 STRIP, SOUND ABSORBINGSTRIP, SOUND ABSORBING
-
142110-2383A2 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1546785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1653-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1717-21057 PIN, HINGE-COWL LATCH HANDLEPIN, HINGE-COWL LATCH HANDLE
-
1846785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1930413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
2031935 BLANKET, SOUND ABSORBING-WRAP AROUND COWLBLANKET, SOUND ABSORBING-WRAP AROUND COWL
-
2137-56433A2 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2237-56433A2 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
2337-56433A2 DECAL, WRAP AROUND COWL - REARDECAL, WRAP AROUND COWL - REAR
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
-
--92-271091 ADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENINGADHESIVE COMPOUND (3 1/2 OUNCE KIT) EMBLEM FASTENING
