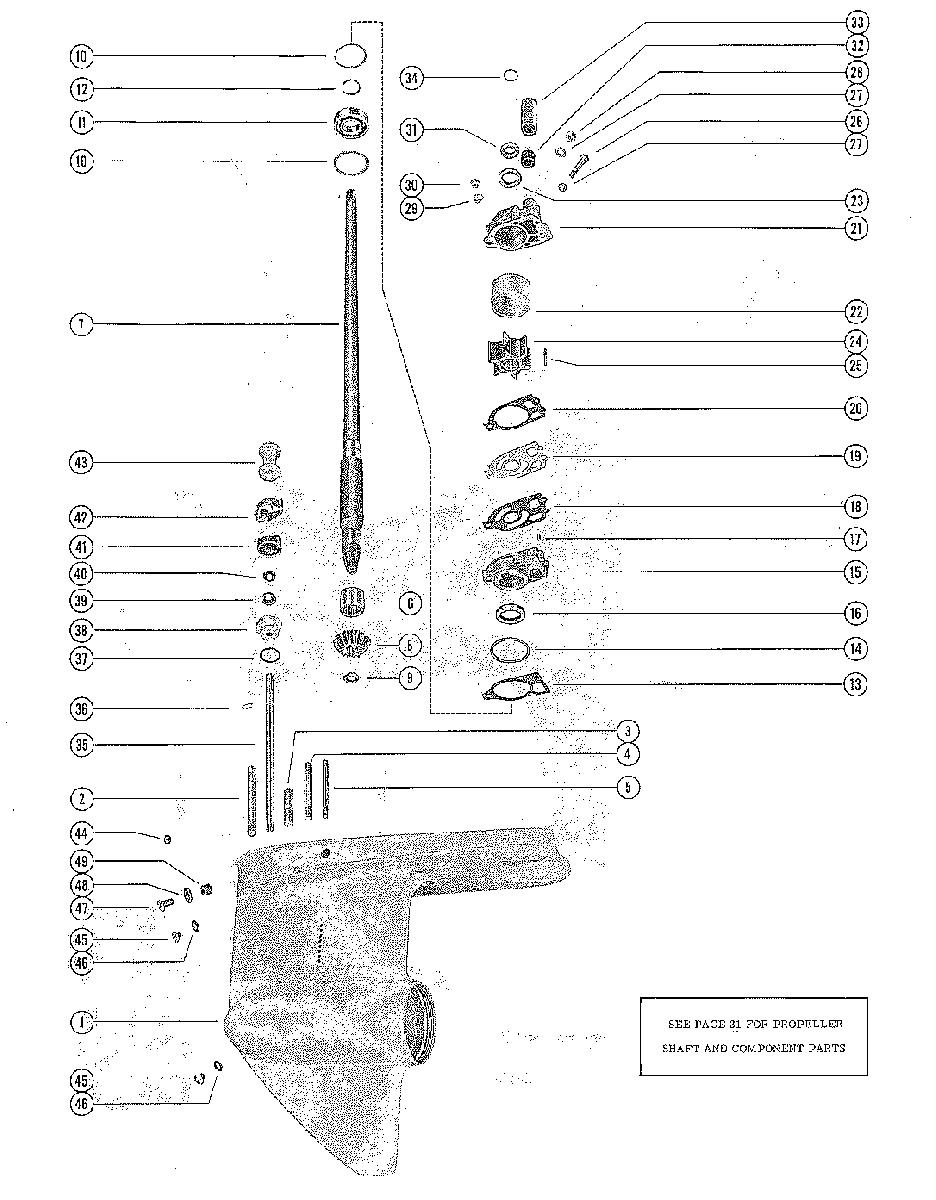

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
1623-2022A5 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #1 THRU REFERENCE #73 AS LISTED ON PAGES 30 AND 31 -
11623-2022A1 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
-
416-30669 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
-
516-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
631-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
745-38459 DRIVE SHAFT (STANDARD)DRIVE SHAFT (STANDARD)
-
843-31419 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
911-30932 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1015-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
1130-63326T BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1253-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1327-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-48758A1 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1626-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1717-29596T DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1827-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
19324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2027-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2146-96148A8 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2230915 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2326-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2447-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2517-8M0034466 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2610-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
-
2713-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)
-
2811-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4)NUT, WATER PUMP BODY FASTENING STUDS (1/4)
-
2913-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
-
3011-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16)NUT, WATER PUMP BODY FASTENING STUD (5/16)
-
3125-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3226-38970 SEAL, RUBBER - WATER PUMP BODYSEAL, RUBBER - WATER PUMP BODY
-
3323-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3425-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
3525136 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
3653-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
3725-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
3823-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
3926-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4012-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4152918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
4252919 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
4323-30607 SPACER, NYLON - REVERSE LOCKING CAMSPACER, NYLON - REVERSE LOCKING CAM
-
4422-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLEPLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
-
4510-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4612-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
4710-29608 SCREW, GEAR HOUSING FLUSHING HOLESCREW, GEAR HOUSING FLUSHING HOLE
-
4827-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREWGASKET, GEAR HOUSING FLUSHING HOLE SCREW
-
4926-29612 SEAL, GEAR HOUSING FLUSHING HOLESEAL, GEAR HOUSING FLUSHING HOLE
