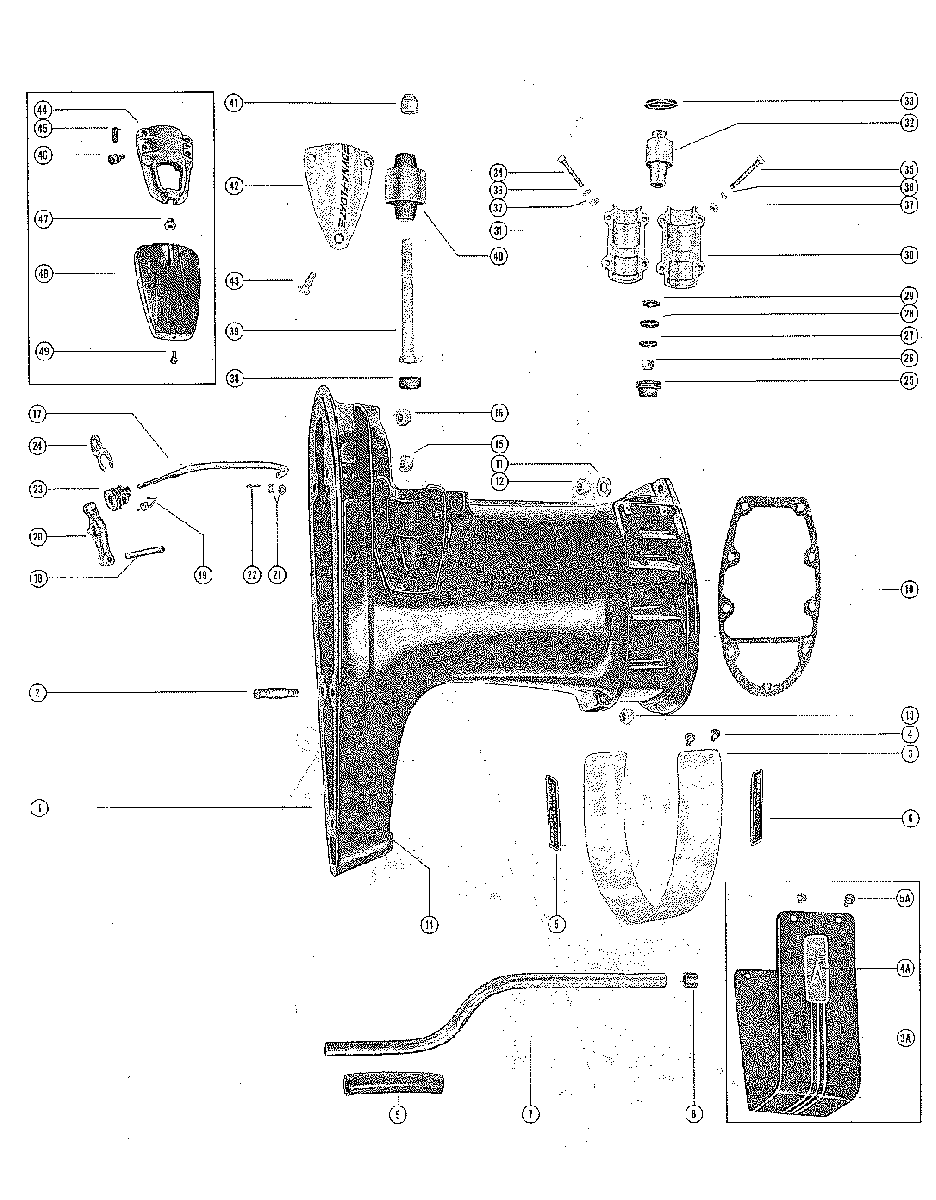

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
11540-2384A2 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
335638A1 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
410-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
537-31924 DECAL, "FULL GEAR SHIFT" - STARBOARDDECAL, "FULL GEAR SHIFT" - STARBOARD
-
637-31925 DECAL, "FULL GEAR SHIFT" - PORTDECAL, "FULL GEAR SHIFT" - PORT
-
11540-2384A2 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
3A35638A1 TRIM COVER ASSEMBLY, DRIVE SHAFT HOUSINGTRIM COVER ASSEMBLY, DRIVE SHAFT HOUSING
-
4A37-35393 DECAL, TRIM COVER - PORT AND STARBOARDDECAL, TRIM COVER - PORT AND STARBOARD
-
5A10-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
732-33013 TUBE, WATER INLETTUBE, WATER INLET
-
826-26207 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
923-29591 SLEEVE, RUBBER - WATER INLET TUBESLEEVE, RUBBER - WATER INLET TUBE
-
1027-26198 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
1112-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1211-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1311-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1419-32298 PLUG, PLASTIC - WATER PICK-UP SCREW HOLEPLUG, PLASTIC - WATER PICK-UP SCREW HOLE
-
1511-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
1611-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
1730721 ROD, PUSH - REVERSE LOCKROD, PUSH - REVERSE LOCK
-
1817-30615 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1924-30618 SPRING, TENSION - PUSH RODSPRING, TENSION - PUSH ROD
-
2052920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2112-20546 WASHER, PUSH RODWASHER, PUSH ROD
-
2218-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
2330614 BOOT, RUBBER - PUSH RODBOOT, RUBBER - PUSH ROD
-
2431039 RETAINER, PUSH ROD RUBBER BOLTRETAINER, PUSH ROD RUBBER BOLT
-
2525305 CAP, RUBBER - UPPER MOUNT BOLT NUTCAP, RUBBER - UPPER MOUNT BOLT NUT
-
2611-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2712-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2812-30516 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2912-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3026218 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
3126217 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3237396 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
3324929 PACKING, "U" CUPPACKING, "U" CUP
-
3410-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
3510-28775 SCREW, UPPER MOUNT COVER (2 1/8")SCREW, UPPER MOUNT COVER (2 1/8")
-
3612-29245 WASHER, UPPER MOUNT COVER SCREWSWASHER, UPPER MOUNT COVER SCREWS
-
3711-35888 NUT, UPPER MOUNT COVER SCREWSNUT, UPPER MOUNT COVER SCREWS
-
3825067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
3910-75284 SCREW, UPPER MOUNT (5 1/2")SCREW, UPPER MOUNT (5 1/2")
-
4037397 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
4111-25096 NUT, MOUNTING SCREWNUT, MOUNTING SCREW
-
4226336 COVER, LOWER MOUNT - PORT SIDECOVER, LOWER MOUNT - PORT SIDE
-
4226337 COVER, LOWER MOUNT - STARBOARD SIDECOVER, LOWER MOUNT - STARBOARD SIDE
-
4310-29256 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
-
4435608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4524-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4610-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
4711-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
4835474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
4910-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
