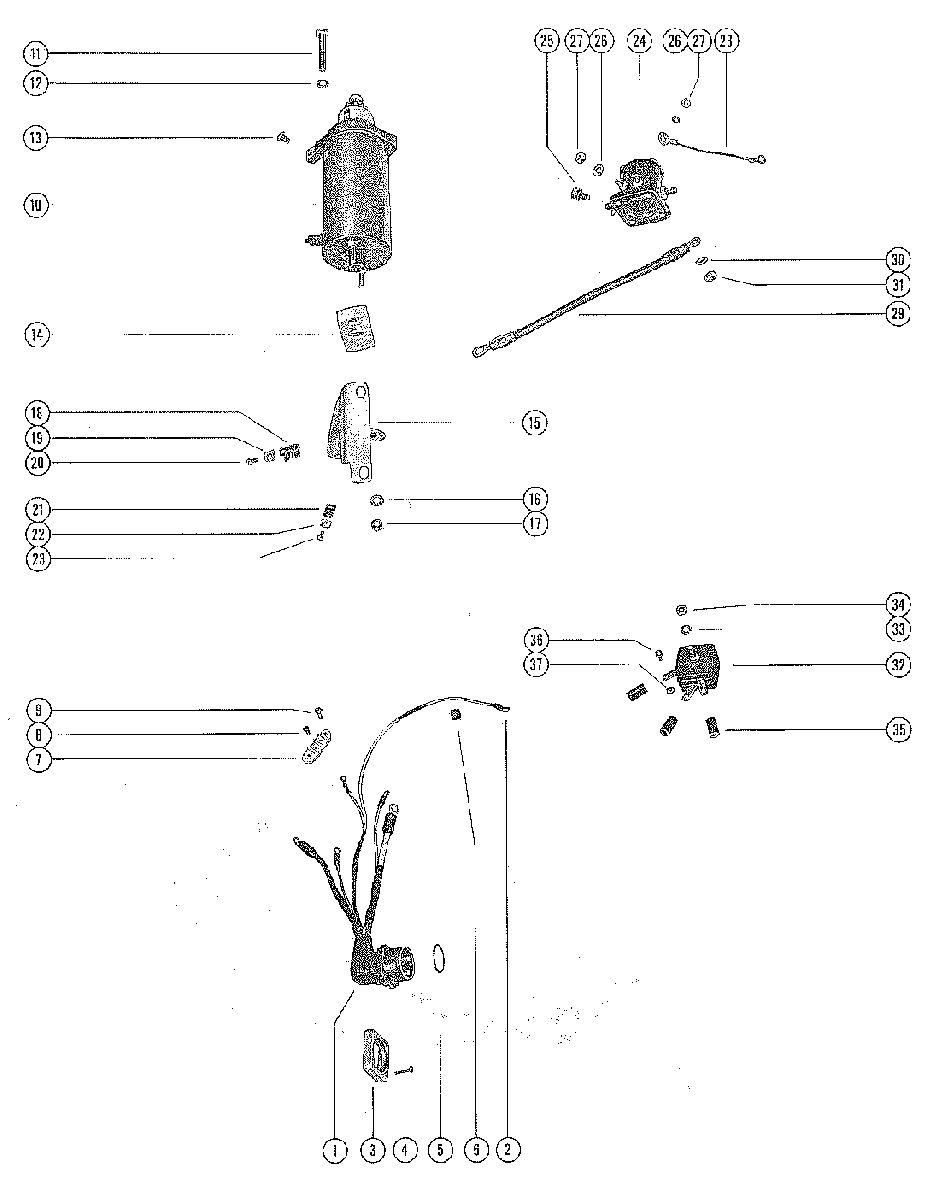

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
133155 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
230050 TERMINAL, HARNESS AND SWITCH LEADSTERMINAL, HARNESS AND SWITCH LEADS
-
326079A2 PLATE, WIRING HARNESS TO BOTTOM COWLPLATE, WIRING HARNESS TO BOTTOM COWL
-
410-45893 SCREW, WIRING HARNESS AND PLATE TO BOTTOM COWLSCREW, WIRING HARNESS AND PLATE TO BOTTOM COWL
-
524-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
654-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
-
730212 BLOCK, TERMINAL - EXHAUST COVERBLOCK, TERMINAL - EXHAUST COVER
-
810-33152 SCREW, HARNESS LEADS TO TERMINAL BLOCKSCREW, HARNESS LEADS TO TERMINAL BLOCK
-
910-62568 SCREW, TERMINAL BLOCK TO EXHAUSE COVERSCREW, TERMINAL BLOCK TO EXHAUSE COVER
-
1050-58788A3 STARTER MOTOR ASSEMBLY (DELCO-REMY)STARTER MOTOR ASSEMBLY (DELCO-REMY)
-
1110-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGESCREW, STARTER MOTOR TO CRANKCASE FLANGE
-
1213-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREWLOCKWASHER, STARTER MOTOR FASTENING SCREW
-
1310-69035 SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTORSCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
-
1431057 PLATE, SPACER - STARTER MOTOR TO BRACKETPLATE, SPACER - STARTER MOTOR TO BRACKET
-
1538747 BRACKET, SUPPORT - STARTER MOTORBRACKET, SUPPORT - STARTER MOTOR
-
1613-24669 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTORLOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
-
1711-20890 NUT, THRU BOLT - BRACKET TO STARTER MOTORNUT, THRU BOLT - BRACKET TO STARTER MOTOR
-
1854-22740 CLIP, HARNESS LEAD WIRES TO SUPPORT BRACKET (3/8-6)CLIP, HARNESS LEAD WIRES TO SUPPORT BRACKET (3/8-6)
-
198M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
2010-8M0113176 SCREW, LEAD WIRE CLIP FASTENINGSCREW, LEAD WIRE CLIP FASTENING
-
2154-23567 CLIP, HARNESS LEAD WIRE TO SUPPORT BRACKET (9/16-6)CLIP, HARNESS LEAD WIRE TO SUPPORT BRACKET (9/16-6)
-
228M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
2310-8M0113176 SCREW, LEAD WIRE CLIP FASTENINGSCREW, LEAD WIRE CLIP FASTENING
-
2432445A1 SOLENOID, STARTERSOLENOID, STARTER
-
2510-29238 SCREW, SOLENOID TO STARTER MOTORSCREW, SOLENOID TO STARTER MOTOR
-
2613-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
2711-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2828016A1 GROUND STRAP ASSEMBLY, SOLENOID TO STARTER MOTORGROUND STRAP ASSEMBLY, SOLENOID TO STARTER MOTOR
-
2984-93389A12 CABLE, WIRE - SOLENOID TO STARTER MOTORCABLE, WIRE - SOLENOID TO STARTER MOTOR
-
3013-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)LOCKWASHER, SOLENOID TERMINAL (5/16)
-
3111-22053 NUT, SOLENOID TERMINAL (5/16)NUT, SOLENOID TERMINAL (5/16)
-
3232177A2 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
3313-26993 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
3411-21929 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
3532-28373 SLEEVE, RUBBER - RECTIFIER HARNESS LEADSLEEVE, RUBBER - RECTIFIER HARNESS LEAD
-
3610-35400 SCREW, HARNESS AND STATOR LEADS TO RECTIFIERSCREW, HARNESS AND STATOR LEADS TO RECTIFIER
-
3711-826709106 NUT, HARNESS AND STATOR LEAD FASTENING SCREWNUT, HARNESS AND STATOR LEAD FASTENING SCREW
