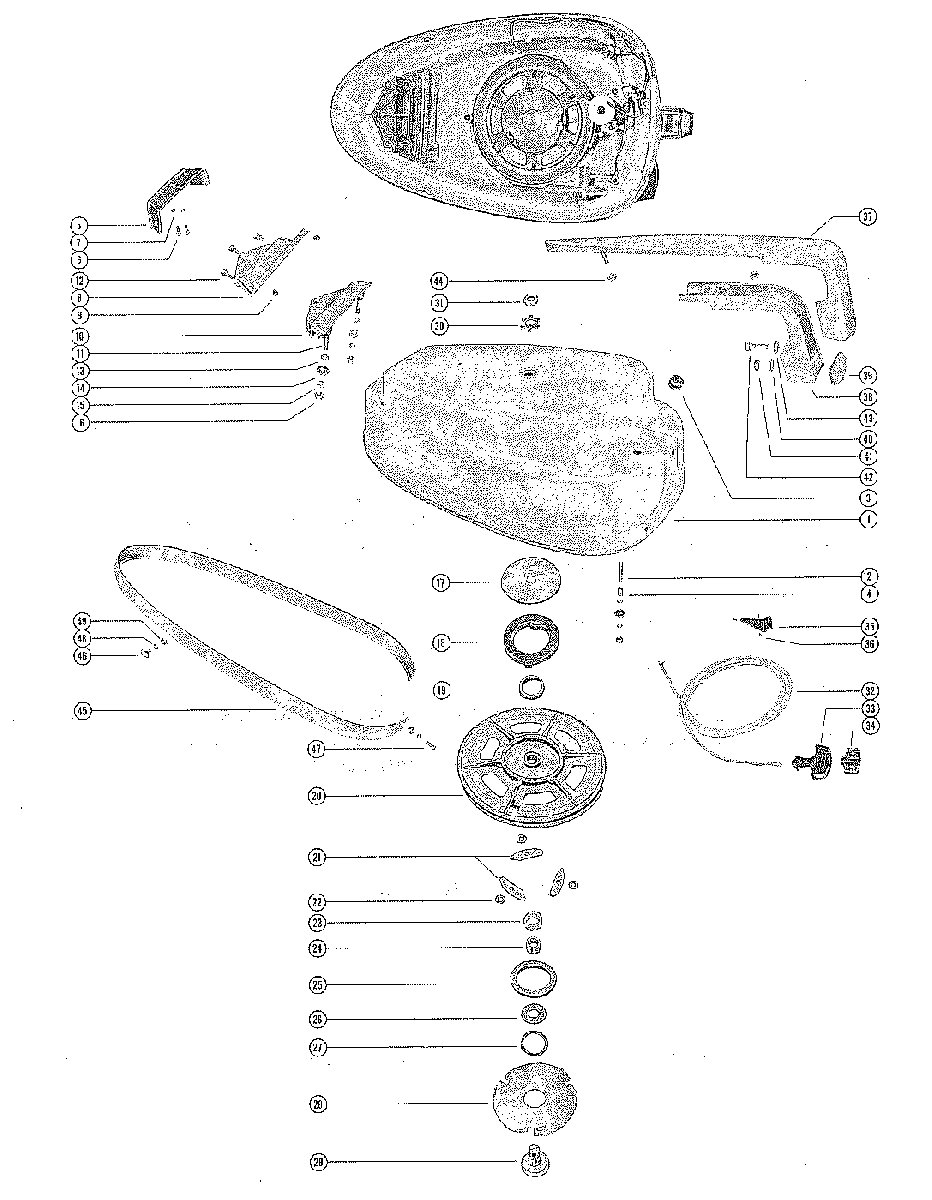

TOP COWL AND STARTER ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
1182-1895A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
216-33071 STUD, FRONT-TOP COWL TO CRANKCASESTUD, FRONT-TOP COWL TO CRANKCASE
-
325-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
423-33070 SPACER, TOP COWL FRONT STUDSSPACER, TOP COWL FRONT STUDS
-
531476 REVEAL, AIR INTAKEREVEAL, AIR INTAKE
-
610-37370 SCREW, REVEAL TO TOP COWLSCREW, REVEAL TO TOP COWL
-
713-26996 LOCKWASHER, REVEAL TO TOP COWL FASTENING SCREWLOCKWASHER, REVEAL TO TOP COWL FASTENING SCREW
-
831475 SCREEN, VENT-TOP COWLSCREEN, VENT-TOP COWL
-
910-26668 SCREW, VENT SCREEN TO TOP COWLSCREW, VENT SCREEN TO TOP COWL
-
1031298A1 PLATE ASSEMBLY, COWL MOUNTINGPLATE ASSEMBLY, COWL MOUNTING
-
1116-20353 STUD, REAR-TOP COWL TO COVERSTUD, REAR-TOP COWL TO COVER
-
1210-28668 SCREW, PLATE ASSEMBLY TO TOP COWLSCREW, PLATE ASSEMBLY TO TOP COWL
-
1312-20028 WASHER, TOP COWL STUD (1/16")WASHER, TOP COWL STUD (1/16")
-
1412-69057 WASHER, TOP COWL STUD (3/4" OD)WASHER, TOP COWL STUD (3/4" OD)
-
1512-20583 WASHER, TOP COWL STUD (1/32")WASHER, TOP COWL STUD (1/32")
-
1611-8267089 NUT, TOP COWL FASTENINGNUT, TOP COWL FASTENING
-
1720155 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
1824-29340T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1923-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2050-30994 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
2130596 PAWL, STARTERPAWL, STARTER
-
2213-36206 WASHER, WAVE-STARTER PAWLWASHER, WAVE-STARTER PAWL
-
2323-28919 BUSHING, NYLON-SHEAVE SHAFT SPACERBUSHING, NYLON-SHEAVE SHAFT SPACER
-
2445477A1 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
2526179 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
2612-26180 WASHER, SHEAVE SHAFT TO STARTER SHEAVEWASHER, SHEAVE SHAFT TO STARTER SHEAVE
-
2713-20160 WASHER, WAVE-WASHER TENSIONWASHER, WAVE-WASHER TENSION
-
2830595 PLATE, RETAINER-STARTER PAWLPLATE, RETAINER-STARTER PAWL
-
2945477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
3014-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
3111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
3250-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3328747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
3479470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
3530045 PLATE, ROPE GUIDE SEE NOTE BELOW
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWLPLATE, ROPE GUIDE SEE NOTE BELOW
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL -
3610-28642 SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL (#3-48)
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWLSCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL (#3-48)
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL -
3535800 PLATE, ROPE GUIDE
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWLPLATE, ROPE GUIDE
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL -
3610-358811 SCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL (#6-32)
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWLSCREW, DRIVE-ROPE GUIDE PLATE TO TOP COWL (#6-32)
REFERENCE NUMBERS 35 AND 36 ARE TO BE REPLACED ACCORDING TO SIZE OF TAPPED SCREW HOLES IN TOP COWL -
3731463 HANDLE, CHROME-TOP COWLHANDLE, CHROME-TOP COWL
-
3831487 HANDLE ASSEMBLY, INSIDE-TOP COWLHANDLE ASSEMBLY, INSIDE-TOP COWL
-
3930896 PAD, BUMPER-TOP COWL HANDLEPAD, BUMPER-TOP COWL HANDLE
-
3935496 PAD, BUMPER-TOP COWL HANDLEPAD, BUMPER-TOP COWL HANDLE
-
4012-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUDWASHER, CHROME HANDLE TO INSIDE HANDLE STUD
-
4111-826709109 NUT, CHROME HANDLE TO INSIDE HANDLE FASTENINGNUT, CHROME HANDLE TO INSIDE HANDLE FASTENING
-
4210-29199 SCREW, FRONT-HANDLE TO TOP COWL (1")SCREW, FRONT-HANDLE TO TOP COWL (1")
-
4312-20533 WASHER, FRONT SCREW-HANDLE TO TOP COWLWASHER, FRONT SCREW-HANDLE TO TOP COWL
-
4411-826709109 NUT, HANDLE TO TOP COWL STUDNUT, HANDLE TO TOP COWL STUD
-
4529980A1 TRIM MOULDING ASSEMBLY-TOP COWLTRIM MOULDING ASSEMBLY-TOP COWL
-
4610-29226 SCREW, DECORATIVE-MOULDING TO TOP COWLSCREW, DECORATIVE-MOULDING TO TOP COWL
-
4710-29227 SCREW, BRASS-MOULDING TO TOP COWLSCREW, BRASS-MOULDING TO TOP COWL
-
4813-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
4911-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
