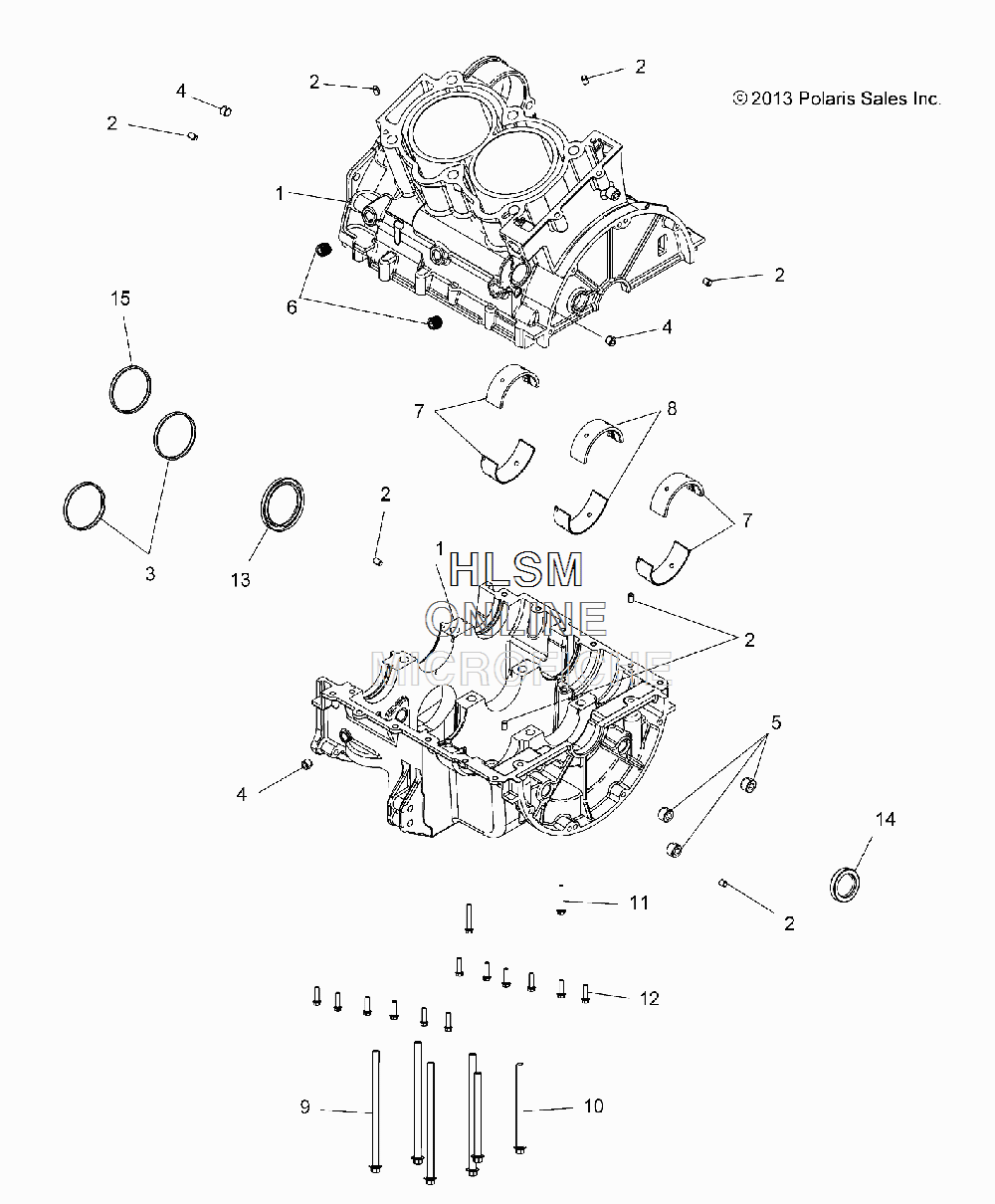

CRANKCASE для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
12205144 KIT, CRANKCASE [INCL. 2,4-6, 9-12, CASES]KIT, CRANKCASE [INCL. 2,4-6, 9-12, CASES]
-
25136879 PIN, DOWELPIN, DOWEL
-
33610144 SEAL, BALANCE SHAFTSEAL, BALANCE SHAFT
-
47052337 PLUGPLUG
-
57052413 PLUGPLUG
-
67518835 PLUGPLUG
-
73514534 BEARING, MAIN, UPPER, FRONTBEARING, MAIN, UPPER, FRONT
-
83514535 BEARING, MAIN, UPPER, CENTERBEARING, MAIN, UPPER, CENTER
-
97518804 SCREWSCREW
-
107518805 SCREWSCREW
-
117518578 SCREWSCREW
-
127518576 SCREWSCREW
-
133610152 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
143610220 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
153610144 SEAL, BALANCE SHAFTSEAL, BALANCE SHAFT
