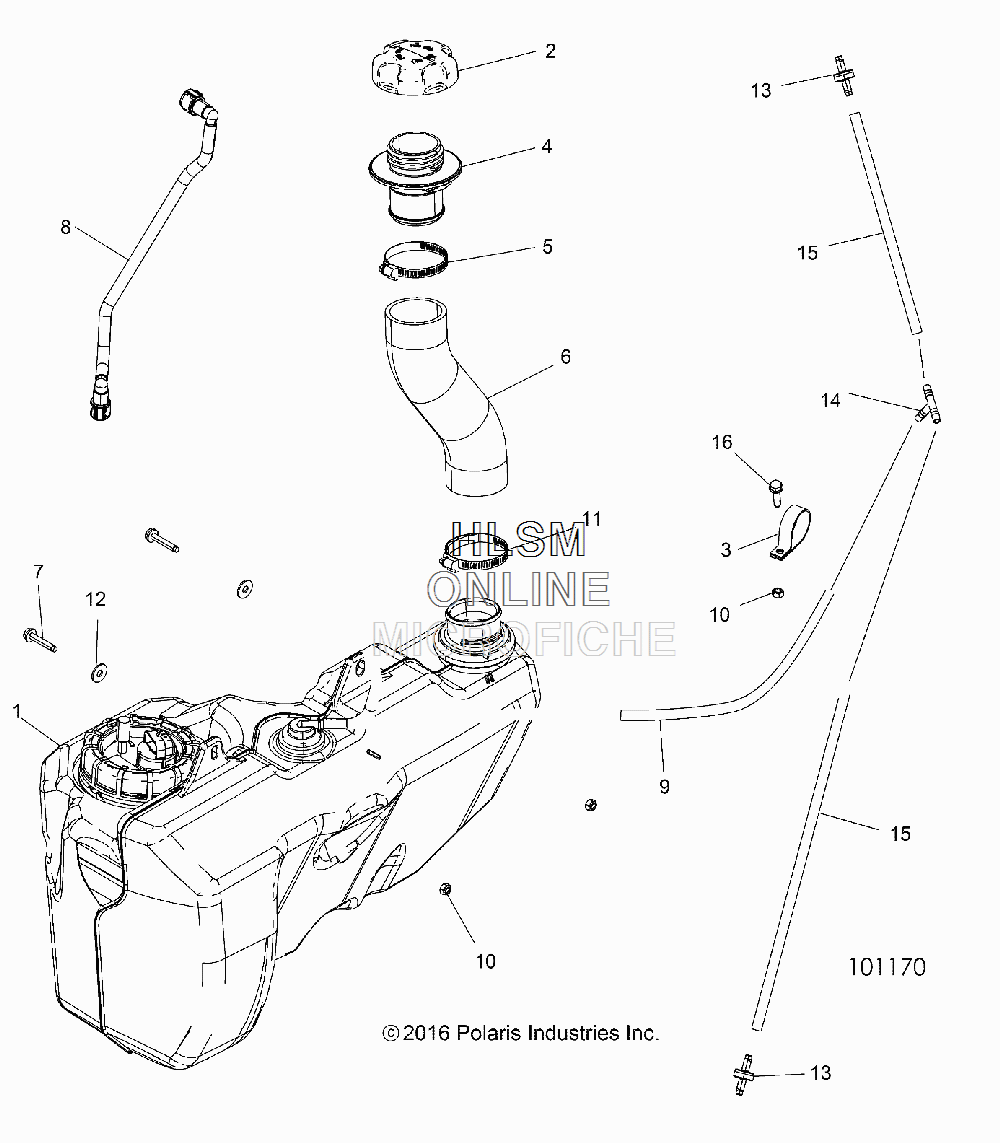

FUEL TANK для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
12521706 ASM-FUEL TANK W/PUMP,4 BAR [INCL. PUMP]ASM-FUEL TANK W/PUMP,4 BAR [INCL. PUMP]
-
25439075 CAP, GAS TANK [INCL. GASKET]CAP, GAS TANK [INCL. GASKET]
-
37080851 CLAMP-HOSE,1.312 VINYL COATEDCLAMP-HOSE,1.312 VINYL COATED
-
45436898 INLET, FUELINLET, FUEL
-
57080413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
65414459 HOSE, FUEL FILLHOSE, FUEL FILL
-
77519202 SCREW, FLANGESCREW, FLANGE
-
82521315 ASM., FUEL LINEASM., FUEL LINE
-
98450040-600 LINE, VENTLINE, VENT
-
107546703 NUT, NYLOKNUT, NYLOK
-
117081413 CLAMP, CONSTANT TENSIONCLAMP, CONSTANT TENSION
-
127555859 WASHER, FLATWASHER, FLAT
-
137052390 VALVE, CHECK, VACUUMVALVE, CHECK, VACUUM
-
147052075 FITTING-TEE, 1/4-1/4-BRB-NYFITTING-TEE, 1/4-1/4-BRB-NY
-
158450040-600 LINE, FUELLINE, FUEL
-
167517704 SCR-HXFL-M6X1.0X12 8.8 ZPBSCR-HXFL-M6X1.0X12 8.8 ZPB
