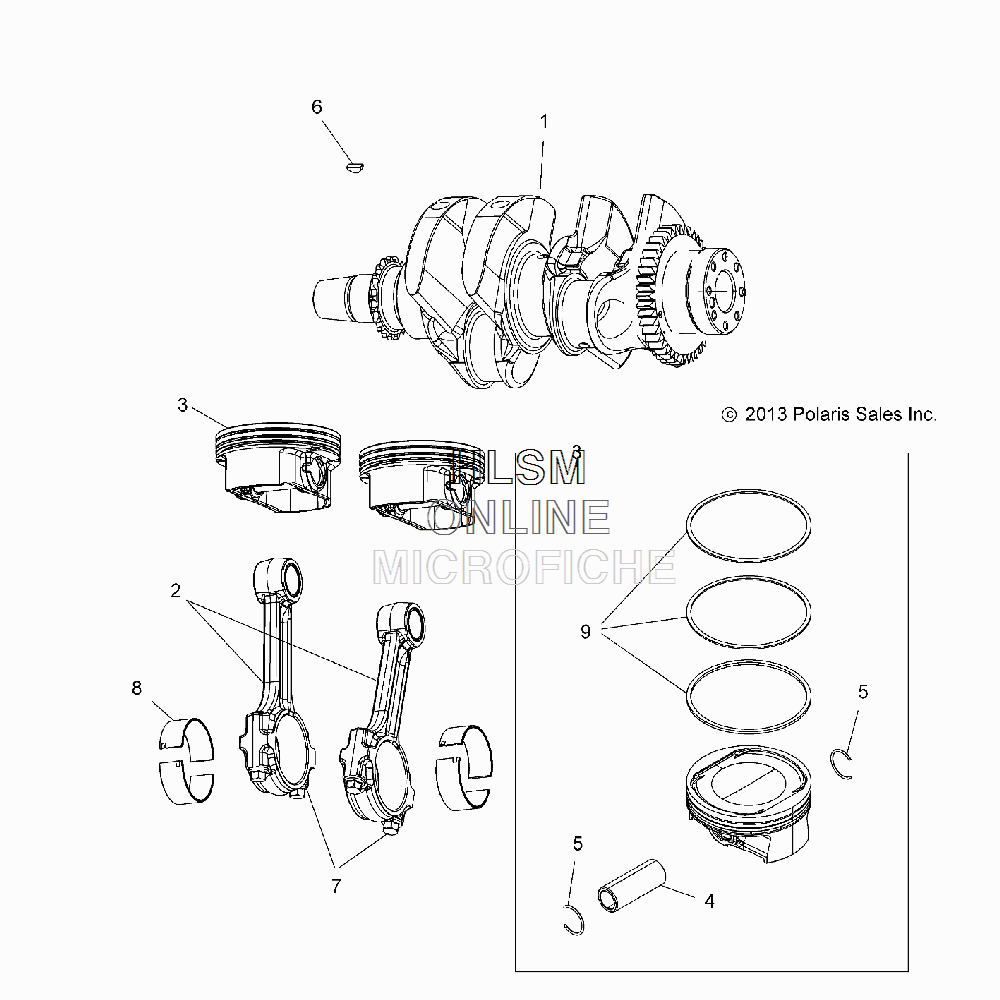

CRANKSHAFT W/ CYLINDER для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
12205143 KIT, CRANKSHAFT [INCL. 4, CRANK, MAIN BEARINGS]KIT, CRANKSHAFT [INCL. 4, CRANK, MAIN BEARINGS]
-
22204634 KIT, CONNECTING ROD [INCL. 7,8, ROD, CAP, BUSHING]KIT, CONNECTING ROD [INCL. 7,8, ROD, CAP, BUSHING]
-
27556569 BUSHING, PISTON PINBUSHING, PISTON PIN
-
32205145 KIT, PISTON [INCL. PISTON, PIN, CLIPS, ALL RINGS]KIT, PISTON [INCL. PISTON, PIN, CLIPS, ALL RINGS]
-
67721122 KEY, WOODRUFFKEY, WOODRUFF
-
77519263 BOLTBOLT
-
83514989 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83514989-015 BEARING, CONNECTING ROD, REDBEARING, CONNECTING ROD, RED
-
83514989-016 BEARING, CONNECTING ROD, WHITEBEARING, CONNECTING ROD, WHITE
-
83514989-027 BEARING, CONNECTING ROD, BLUEBEARING, CONNECTING ROD, BLUE
-
83514989-053 BEARING, CONNECTING ROD, YELLOWBEARING, CONNECTING ROD, YELLOW
-
92205146 KIT, PISTON RINGS [CONTAINS UPPER, LOWER, OIL CONTROL RING]KIT, PISTON RINGS [CONTAINS UPPER, LOWER, OIL CONTROL RING]
