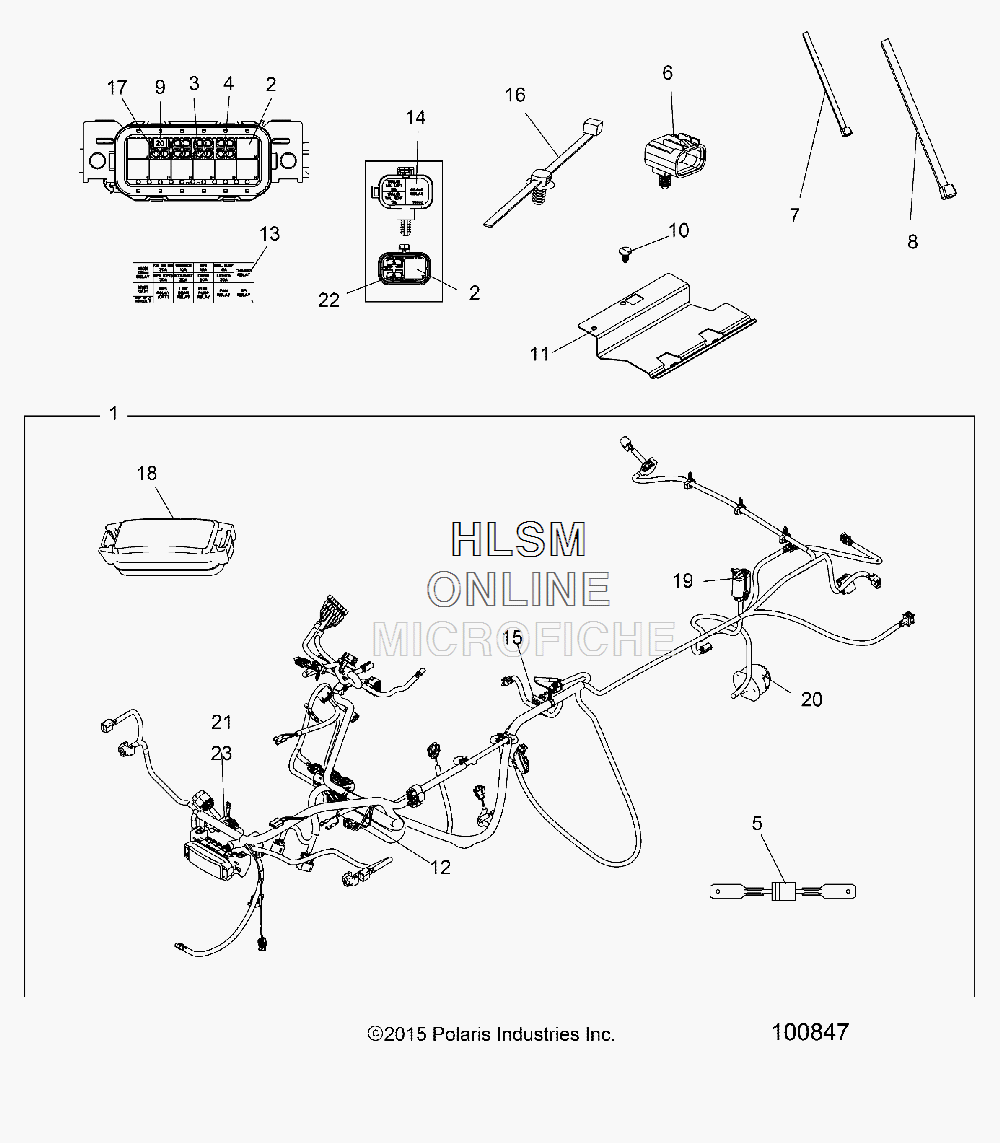

WIRE HARNESS для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
12413658 HARN-MAIN,MY17 SCRM ETC,TRC/EU [INCL. 1-6,9,12-17, ALL KITS, COVER] [FROM DATE 1/2/16]HARN-MAIN,MY17 SCRM ETC,TRC/EU [INCL. 1-6,9,12-17, ALL KITS, COVER] [FROM DATE 1/2/16]
-
12878496 KIT, HARNESS, ENGINE TEMPKIT, HARNESS, ENGINE TEMP
-
12878498 KIT, HARNESS, TPSKIT, HARNESS, TPS
-
14014235 CONNECTOR-CAP,EPS SIGNALCONNECTOR-CAP,EPS SIGNAL
-
14014236 CONNECTOR-CAP,EPS POWERCONNECTOR-CAP,EPS POWER
-
24011283 RELAYRELAY
-
32434017 FUSE, 20AMPFUSE, 20AMP
-
42434016 FUSE, 10AMPFUSE, 10AMP
-
52411035 DIODE, 6AMPDIODE, 6AMP
-
64012170 COVER, DIAGNOSTICCOVER, DIAGNOSTIC
-
77080138 CABLE TIECABLE TIE
-
87080492 CABLE TIECABLE TIE
-
94011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
107670125 CLIP, PUSH ONCLIP, PUSH ON
-
115261786 BRKT-FUSE BLOCKBRKT-FUSE BLOCK
-
122202607 KIT, FUSIBLE LINK, .8 MMKIT, FUSIBLE LINK, .8 MM
-
122202670 KIT, FUSIBLE LINK, 1.0 MMKIT, FUSIBLE LINK, 1.0 MM
-
137180715 LABEL-FUSE BOXLABEL-FUSE BOX
-
147182813 LABEL-FUSE BOXLABEL-FUSE BOX
-
154014055 MODULE, RESISTORMODULE, RESISTOR
-
167081496 CLIP, ROUTINGCLIP, ROUTING
-
172434015 FUSE, MAIN, 30 AMPFUSE, MAIN, 30 AMP
-
184015011 COVER, FUSEBOXCOVER, FUSEBOX
-
194014381 CAPCAP
-
204012558 CONNECTOR, TRAILERCONNECTOR, TRAILER
-
214012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
224011652 FUSE, 5 AMPFUSE, 5 AMP
-
232434017 FUSE-PARK,20 AMPFUSE-PARK,20 AMP
