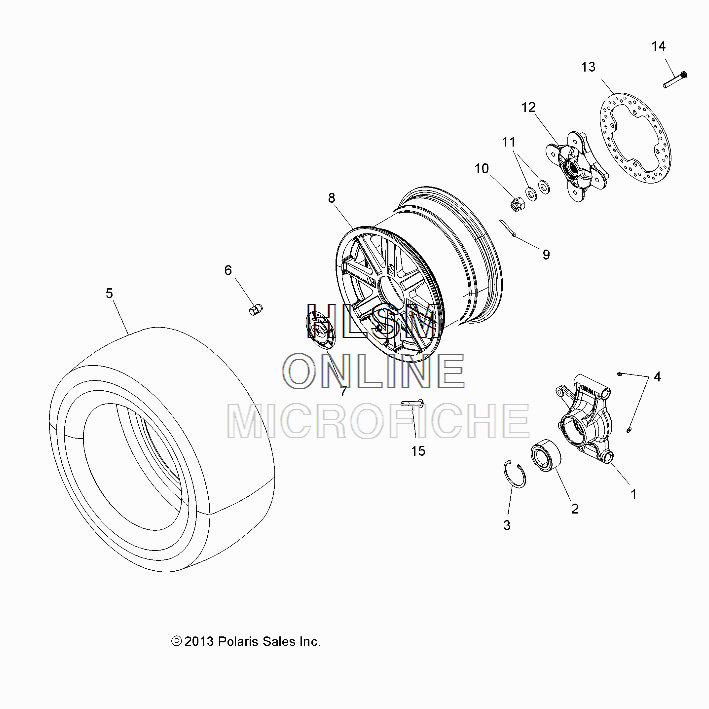

WHEEL - REAR W/ HUB для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
15136689 CARRIER, BEARING, LHCARRIER, BEARING, LH
-
15136690 CARRIER, BEARING, RHCARRIER, BEARING, RH
-
23514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
37710440 RING, RETAININGRING, RETAINING
-
47080424 FITTING, LUBRICATINGFITTING, LUBRICATING
-
55415736 TIRE-26X10-14,CU063 E-MARKTIRE-26X10-14,CU063 E-MARK
-
67547361 NUT, WHEEL, REARNUT, WHEEL, REAR
-
75450161-655 COVER, HUB, FLASH BLACKCOVER, HUB, FLASH BLACK
-
81521485-655 RIM, REAR, CAST, FLASH BLACK [INCL. COVER, DECAL]RIM, REAR, CAST, FLASH BLACK [INCL. COVER, DECAL]
-
97661404 PIN, COTTERPIN, COTTER
-
107547406 NUT, CASTLENUT, CASTLE
-
117555796 WASHER, CONEWASHER, CONE
-
125136946 HUB, WHEELHUB, WHEEL
-
135250205 DISC, BRAKEDISC, BRAKE
-
147518671 STUD, WHEELSTUD, WHEEL
-
151525017 VALVE, RIMVALVE, RIM
