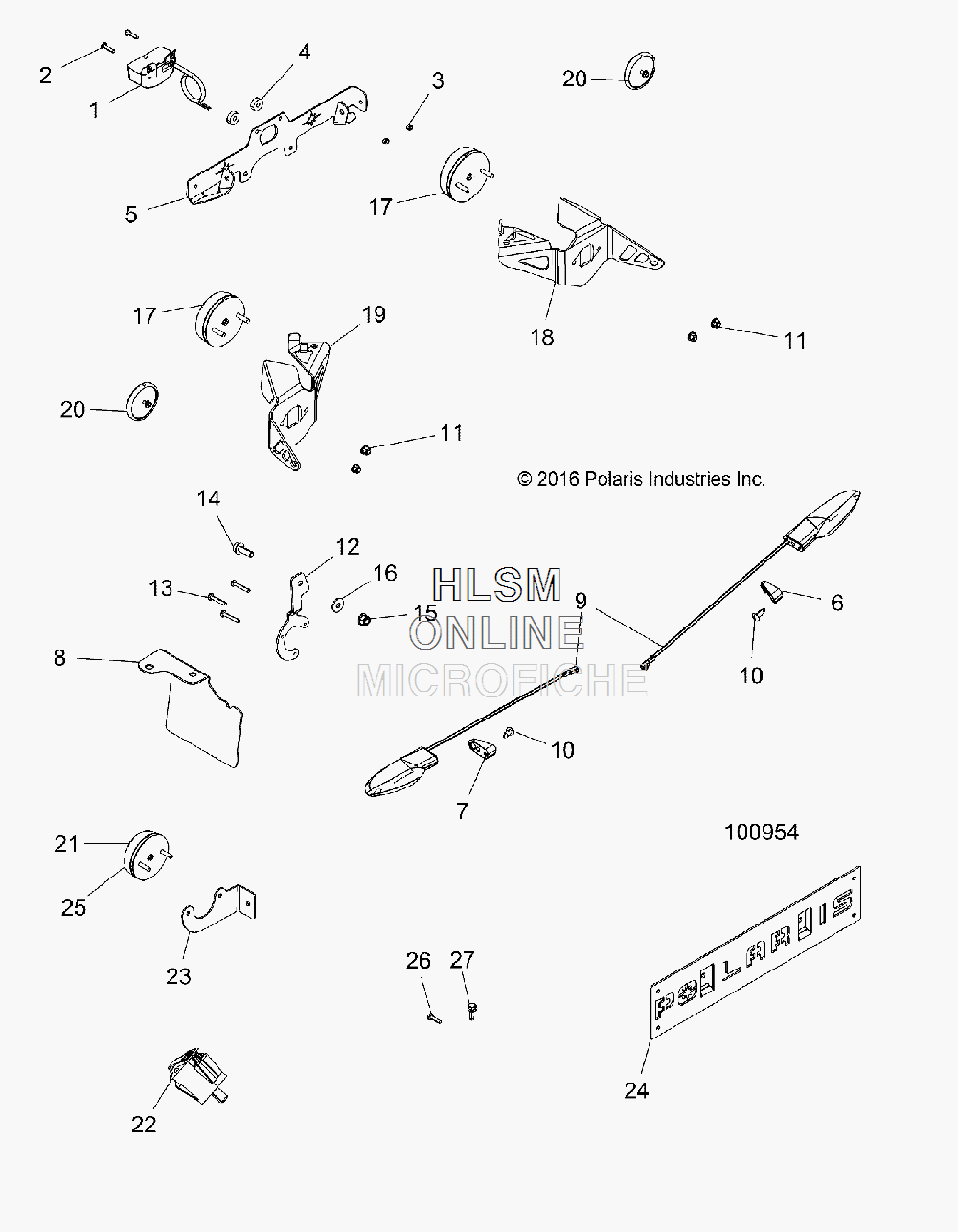

TURN SIGNALS AND LICENSE PLATE для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
12411278 LIGHT-LICENSE PLATE,TRACTR,BLKLIGHT-LICENSE PLATE,TRACTR,BLK
-
27512018 SCR-#10-24X3/4,PN/TR RD-TORX-YSCR-#10-24X3/4,PN/TR RD-TORX-Y
-
37546601 NUT-M5X.8,HX NYL-YNUT-M5X.8,HX NYL-Y
-
47555932 WASHER-.28 X.75 X.25-NYLON-BWASHER-.28 X.75 X.25-NYLON-B
-
55263791-458 BRKT-LIC.PLATE,RR,SCRM,EU,M.BLBRKT-LIC.PLATE,RR,SCRM,EU,M.BL
-
65416070 SUPPORT-FRONT,SIGNAL,SCRM,LH [FROM DATE 3/20/2017]SUPPORT-FRONT,SIGNAL,SCRM,LH [FROM DATE 3/20/2017]
-
65450205-070 SPACER-LH TURN SIGNAL MNT,BLK [TO DATE 3/20/2017]SPACER-LH TURN SIGNAL MNT,BLK [TO DATE 3/20/2017]
-
75416071 SUPPORT-FRONT,SIGNAL,SCRM,RH [FROM DATE 3/20/2017]SUPPORT-FRONT,SIGNAL,SCRM,RH [FROM DATE 3/20/2017]
-
75450227-070 SPACER-RH TURN SIGNAL MNT,BLK [TO DATE 3/20/2017]SPACER-RH TURN SIGNAL MNT,BLK [TO DATE 3/20/2017]
-
85261971-458 BRKT-VIN,PLATE,M.BLKBRKT-VIN,PLATE,M.BLK
-
92413531 SIGNAL-TURN,FRONT,TRSIGNAL-TURN,FRONT,TR
-
107519248 SCR-TXPH-M6X1.0X25 8.8 ZCSCR-TXPH-M6X1.0X25 8.8 ZC
-
117547274 NUT-M6 FLANGE,NYLOCNUT-M6 FLANGE,NYLOC
-
125263450-458 BRKT-TRAILER SOCKET,M.BLKBRKT-TRAILER SOCKET,M.BLK
-
137512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
-
147518514 SCR-HXFL-M8X1.25X25 8.8 ZODSCR-HXFL-M8X1.25X25 8.8 ZOD
-
157547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
167555960 WASHER-.327X.875X.090,FL-YWASHER-.327X.875X.090,FL-Y
-
172413655 LIGHT-STOP,TAIL,TURN,ECE,LED [TO DATE 1/27/2017]LIGHT-STOP,TAIL,TURN,ECE,LED [TO DATE 1/27/2017]
-
175813106 FOIL-AIRBOX [FOR USE ON RH LIGHT]FOIL-AIRBOX [FOR USE ON RH LIGHT]
-
172413977 LIGHT-STOP,TAIL,TURN,ECE,LED [FROM DATE 1/17/2017]LIGHT-STOP,TAIL,TURN,ECE,LED [FROM DATE 1/17/2017]
-
175813106 FOIL-AIRBOX [FOR USE ON RH LIGHT]FOIL-AIRBOX [FOR USE ON RH LIGHT]
-
172413977 LIGHT-STOP,TAIL,TURN,ECE,LED [FROM DATE 1/17/2017]LIGHT-STOP,TAIL,TURN,ECE,LED [FROM DATE 1/17/2017]
-
185263710-458 BRKT-SCRM,TAIL LIGHT,LH,M.BLKBRKT-SCRM,TAIL LIGHT,LH,M.BLK
-
195263711-458 BRKT-SCRM,TAIL LIGHT,RH,M.BLKBRKT-SCRM,TAIL LIGHT,RH,M.BLK
-
205452126 REFLECTOR-RED,CIRCLEREFLECTOR-RED,CIRCLE
-
212413305 LIGHT,REAR FOG INCANDESCENTLIGHT,REAR FOG INCANDESCENT
-
224015769 SWITCH-REAR FOG,ON/OFFSWITCH-REAR FOG,ON/OFF
-
235261659-458 BRKT-FOG LAMP,SPMN,1000,M.BLKBRKT-FOG LAMP,SPMN,1000,M.BLK
-
245263392-458 BRKT-FR,REG PL,SCRM,EU,M.BLKBRKT-FR,REG PL,SCRM,EU,M.BLK
-
255452671-464 COVER-FOG LIGHT,BLKCOVER-FOG LIGHT,BLK
-
267518238 SCR-10X5/8-HI/LO,PN-T25,TRX-MSCR-10X5/8-HI/LO,PN-T25,TRX-M
-
277516822 SCR-M6X1.0X20-HX/FL-Y/DSCR-M6X1.0X20-HX/FL-Y/D
