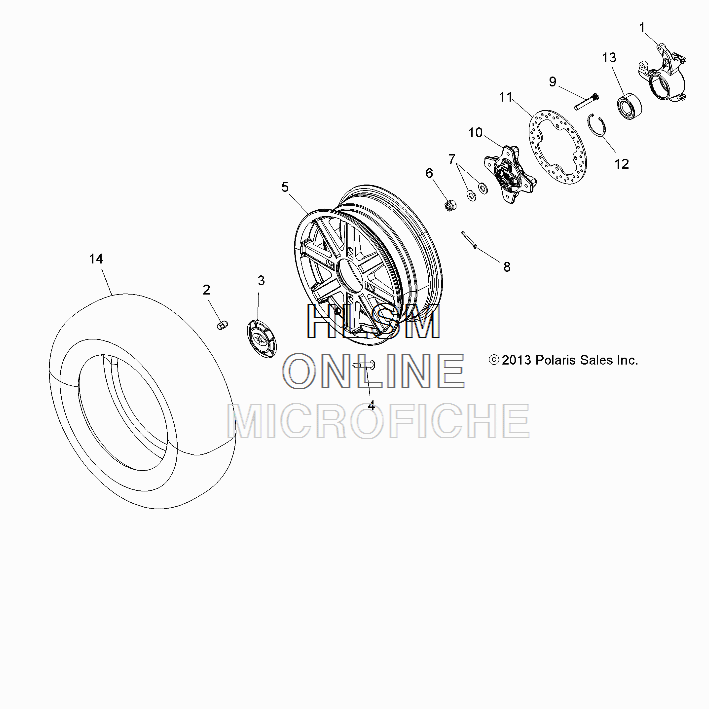

WHEEL - FRONT W/ HUB для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
11822945 ASM., STEERING KNUCKLE, LH [INCL. 12,13]ASM., STEERING KNUCKLE, LH [INCL. 12,13]
-
11822946 ASM., STEERING KNUCKLE, RH [INCL. 12,13]ASM., STEERING KNUCKLE, RH [INCL. 12,13]
-
15136733 KNUCKLE, LHKNUCKLE, LH
-
15136734 KNUCKLE, RHKNUCKLE, RH
-
27547361 NUT, WHEELNUT, WHEEL
-
35450161-655 COVER, HUB, FLASH BLACKCOVER, HUB, FLASH BLACK
-
41525017 VALVE, RIMVALVE, RIM
-
51521484-655 RIM, FRONT, CAST, FLASH BLACK [INCL. COVER, DECAL]RIM, FRONT, CAST, FLASH BLACK [INCL. COVER, DECAL]
-
67547406 NUT, CASTLENUT, CASTLE
-
77555796 WASHER, CONEWASHER, CONE
-
87661404 PIN, COTTERPIN, COTTER
-
97518671 STUD, WHEELSTUD, WHEEL
-
105135499 HUB, WHEELHUB, WHEEL
-
115250205 DISC, BRAKEDISC, BRAKE
-
127710440 RING, RETAININGRING, RETAINING
-
133514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
145415737 TIRE-26X8-14,CU063 E-MARKTIRE-26X8-14,CU063 E-MARK
