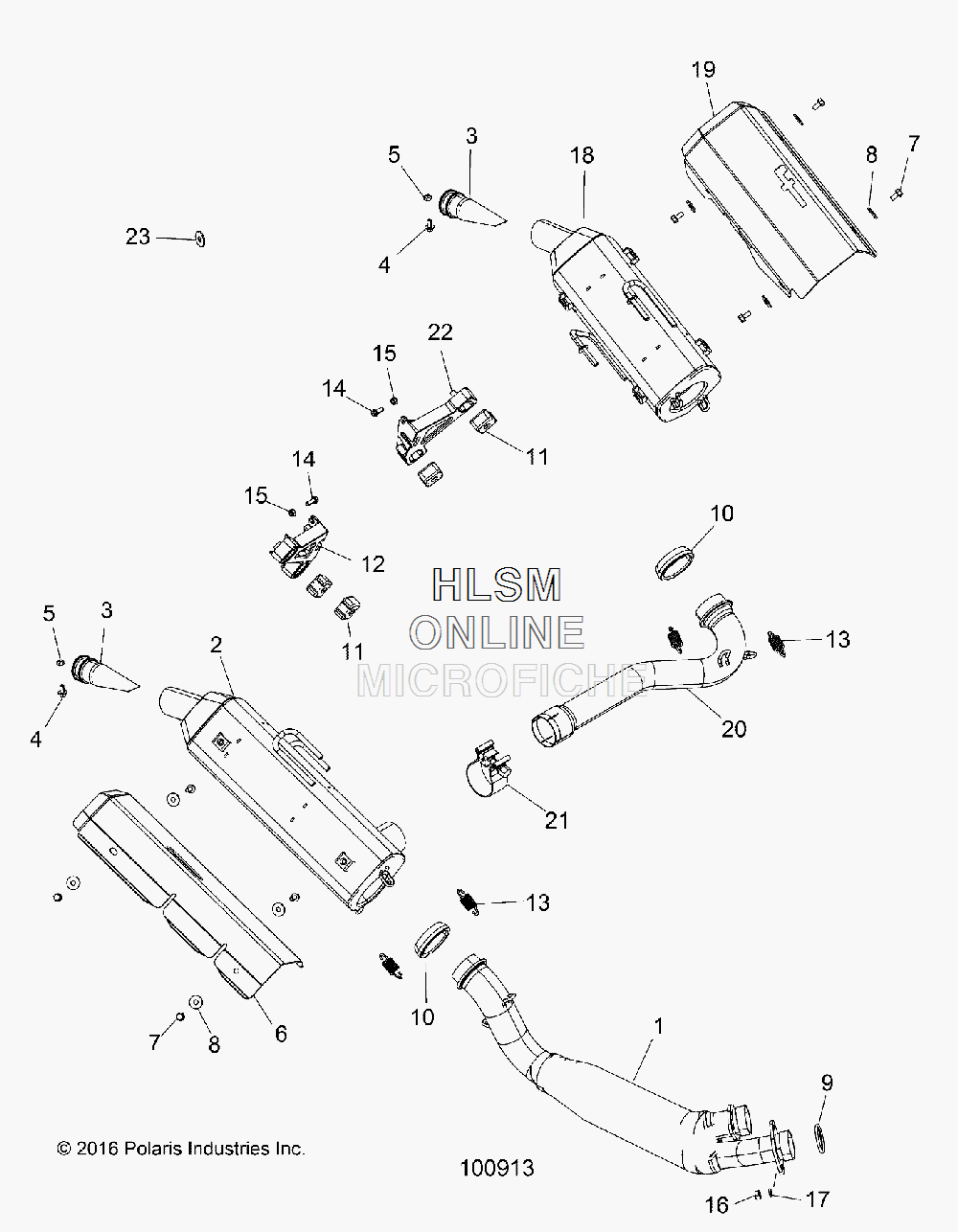

EXHAUST SYSTEM для Polaris SCRAMBLER 1000 XP ZUG TITANIUM METALLIC [A17SVS95FM] - 2017 года выпуска
-
№АртикулНазвание
-
11263019 ASM-EXHAUST PIPE,TWIN [INCL. PIPE, SHIELDS, CLAMPS]ASM-EXHAUST PIPE,TWIN [INCL. PIPE, SHIELDS, CLAMPS]
-
15263605 SHIELD-EXHAUST,PRIMARY,FRNT,ML [OUTER]SHIELD-EXHAUST,PRIMARY,FRNT,ML [OUTER]
-
15263606 SHIELD-EXHAUST,PRIMARY,BACK,ML [INNER]SHIELD-EXHAUST,PRIMARY,BACK,ML [INNER]
-
17081156 CLAMP-HEAT SHIELD,EXHAUST [SMALL, FRONT]CLAMP-HEAT SHIELD,EXHAUST [SMALL, FRONT]
-
17081579 CLAMP-HEAT SHIELD,EXHAUST [REAR, LARGE]CLAMP-HEAT SHIELD,EXHAUST [REAR, LARGE]
-
21262436 SILENCER, EXHAUSTSILENCER, EXHAUST
-
31262239 ARRESTOR, SPARKARRESTOR, SPARK
-
47517257 SCREWSCREW
-
57547120 NUTNUT
-
65257670 SHIELD, HEAT, EXHAUST, SILENCERSHIELD, HEAT, EXHAUST, SILENCER
-
77518490 SCREWSCREW
-
87555935 WASHERWASHER
-
95257995 GASKET, EXHAUST, SEALINGGASKET, EXHAUST, SEALING
-
103610204 SEAL, EXHAUSTSEAL, EXHAUST
-
115413383 GROMMET, SILENCER MOUNTGROMMET, SILENCER MOUNT
-
125632668 BRACKET, EXHAUST, SUPPORT, RHBRACKET, EXHAUST, SUPPORT, RH
-
137041789 SPRING, EXHAUSTSPRING, EXHAUST
-
147518548 SCREWSCREW
-
157546703 NUT, NYLOKNUT, NYLOK
-
167547076 NUTNUT
-
177556111 WASHER, LOCKWASHER, LOCK
-
181262458 SILENCER, EXHAUST, SHORTSILENCER, EXHAUST, SHORT
-
195257708 SHIELD, HEAT, EXHAUST, SILENCERSHIELD, HEAT, EXHAUST, SILENCER
-
201262478 CROSS TUBECROSS TUBE
-
217081382 CLAMP, EXHAUSTCLAMP, EXHAUST
-
225633022 BRACKET, EXHAUST, SUPPORT, LHBRACKET, EXHAUST, SUPPORT, LH
-
237555954 WASHERWASHER
