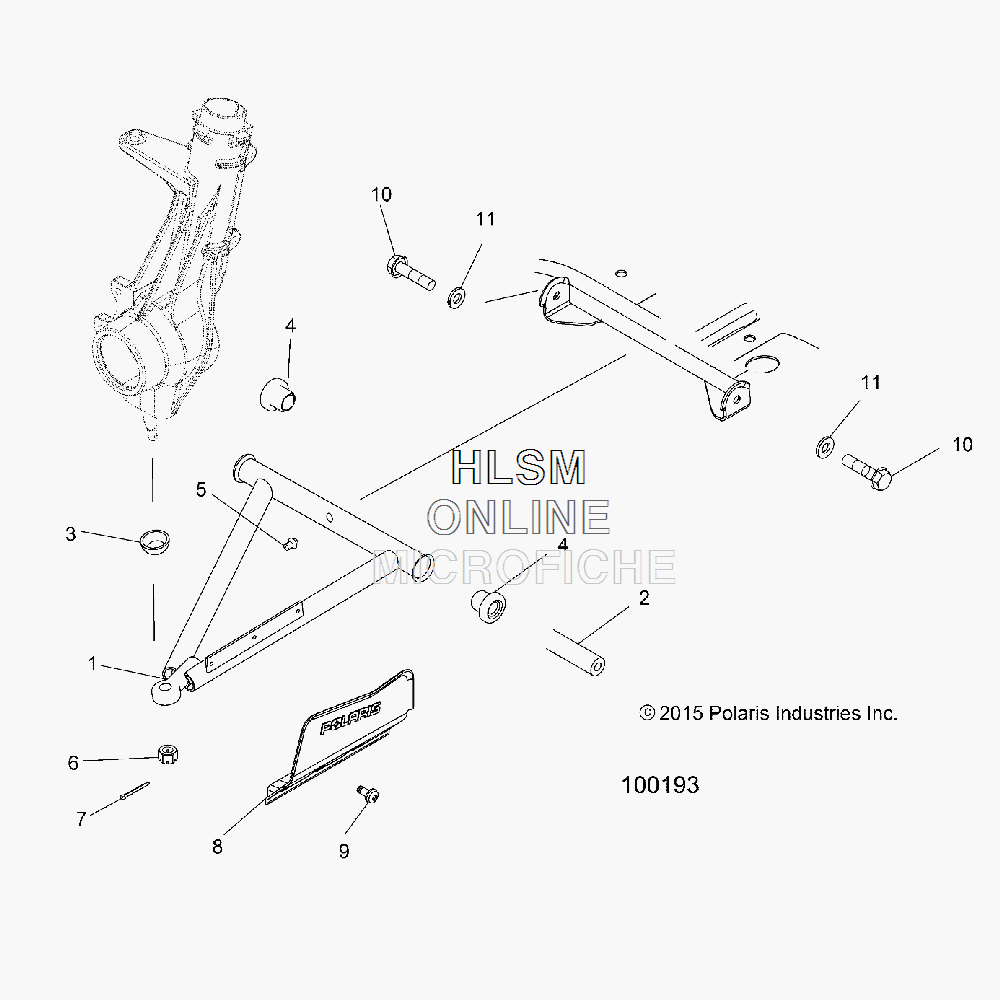

A-ARMS- MID DRIVE для Polaris SPORTSMAN 570 6X6 TRACTOR [A17S6S57C1] - 2017 года выпуска
-
№АртикулНазвание
-
11542161-458 WELD-A-FRAME,FLARED,LH,BLKWELD-A-FRAME,FLARED,LH,BLK
-
11542162-458 WELD-A-FRAME,FLARED,RH,BLKWELD-A-FRAME,FLARED,RH,BLK
-
25139929 SHAFT-A-ARM,C-BORESHAFT-A-ARM,C-BORE
-
35412658 BOOT-BALLJOINT,GREASELESS,STRTBOOT-BALLJOINT,GREASELESS,STRT
-
41543326 ASM-BUSHING,HD,W/SEAL,6.75 FLGASM-BUSHING,HD,W/SEAL,6.75 FLG
-
57080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD, CV FRONT, BLACK, LHSHIELD, CV FRONT, BLACK, LH
-
85435029-070 SHIELD, CV FRONT, BLACK, RHSHIELD, CV FRONT, BLACK, RH
-
97512084 SCREWSCREW
-
107520340 SCREWSCREW
-
117556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
